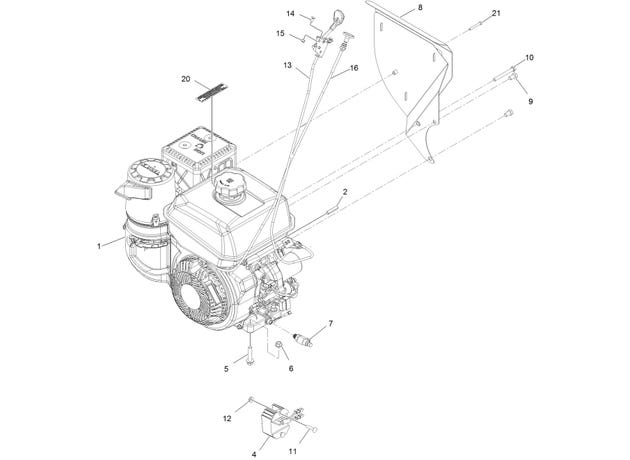

Engine Assembly

#
Part #
Item
Price
Qty
Add
1
126-1359
ENGINE-KOHLER, CH395
$1,123.99
2
135-3980
KEY-SQUARE, 7MM
$5.39
4
135-7026
REGULATOR-TROMBETTA, 18A
$94.99
5
126-2710
SCREW-HHF
$12.09
6
135-2882
NUT-HF
$2.85
7
126-9978
VALVE-DRAIN, OIL
$40.69
8
126-2225
HEAT SHIELD ASM
$184.99
9
115-8486
SCREW-HH
$3.35
10
120-1177
SCREW-HH
$3.35
11
135-4340
SCREW-CARR
$1.55
12
135-2880
NUT-HF
$1.55
13
135-3149
CONTROL-THROTTLE
$41.79
14
1-807513
Bolt-Carriage #10-24 x 1/2
$2.85
15
3296-2
Nut-Nyloc #10-24
$2.33
16
135-3150
CABLE-CHOKE, PUSH/PULL
$34.09
20
133-8062
DECAL-SPARK ARRESTOR
$2.85
21
135-4328
BOLT-M5x0.8mm X 40 MM LONG
$1.81
