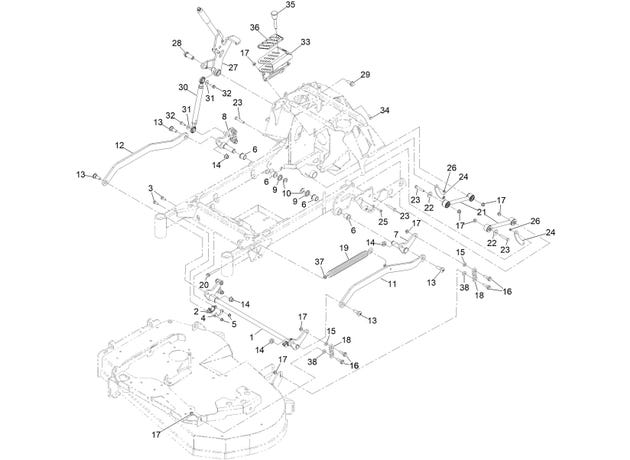

eXmark MN STE600CKA323H1 Deck Lift Assembly

1

142-2566-03

WELD, HOC LIFT SHAFT

$161.99

2

115-5065

BUSHING-FLANGE

$8.51

3

3230-2

Bolt-Carriage 5/16-18 x 1

$1.68

4

116-2887

GUSSET-LIFT, DECK

$5.75

5

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

6

135-1248

BUSHING, IGUS

$5.75

7

142-4524-03

WELD, BELLCRANK, LT RR

$107.99

8

142-2570-03

WELD, BELLCRANK, RT RR

$117.99

9

142-3444

SPACER, HOC PIVOT

$5.87

10

32151-103

E-Ring

$3.47

11

142-4521-03

WELD, LIFT STRAP, LT

$64.89

12

142-4522-03

STRAP, LIFT RT

$64.89

13

135-1259

BOLT, SHOULDER

$16.49

14

99-5107

Nut-Lock 1/2-13

$2.20

15

43-0940

SPACER

$5.87

16

130-0742

BOLT-SHOULDER

$2.98

17

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

18

103-9859

CHAIN-DECKLIFT

$7.43

19

116-0886

SPRING-EXTENSION

$126.99

20

92-7674

Screw-SHCS 3/8-16 x 2.212

$3.11

21

142-2588

ASM, STRUT W/ BUSHINGS

$28.59

22

2844

WASHER

$3.23

23

104-3396

SCREW-HH

$2.46

24

142-2772

STRIP, RUB

$14.29

25

32105-32

Screw-Truss HD 1/4-20 x 1

$1.68

26

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

27

142-2579

ASM, HOC LEVER

$112.99

28

142-2181

PIVOT, HOC LEVER

$15.39

29

3234-38

SCREW-HHF

$6.71

30

142-2581

ASM, LIFT ROD

$97.99

31

1-603716

Washer-Friction

$5.75

32

115-5142

SCREW-HHF

$10.79

33

142-2585-03

WELD, HOC INDEX

$140.99

34

3231-27

Bolt-Carriage 3/8-16 x 7/8

$4.91

35

126-5401

PIN-HOC

$21.99

36

142-3087

DECAL-HEIGHT OF CUT

$11.99

37

3290-357

Nut-Whizlock 3/8-16

$1.11

38

5-0652

Spacer

$8.51
