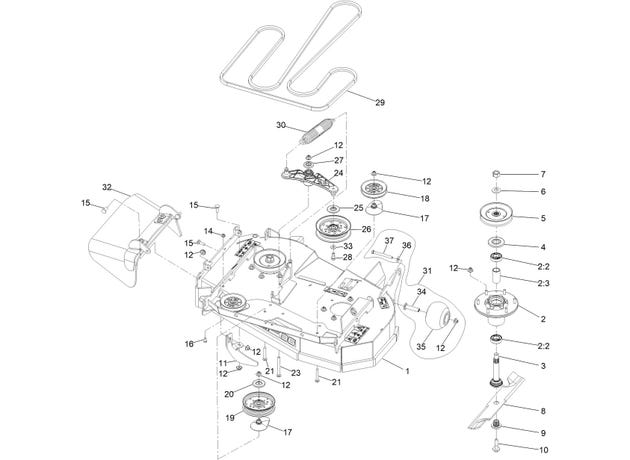

eXmark MN STE600CKA363H1 Deck Assembly

1

142-2607

ASM, 36" DECK W/ DECALS

$1,114.99

2

116-3344

ASM-CUTTER HSG WITH BEARINGS

$146.99

2:2

116-0720

BEARING-BALL

$23.09

2:3

116-3312

SPACER-BEARING

$9.59

3

116-3342

ASM-SPINDLE AND SEAL

$77.99

4

116-1286

GUARD,BEARING TOP .989

$5.99

5

135-4809

SHEAVE-BLADE DRIVE

$35.19

6

103-2802

Washer-Spring Disc 3/4

$5.75

7

116-7306

NUT-HEX

$3.11

8

103-6382

BLADE, SOLID 18.0 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01

8

103-6387

BLADE, LOW LIFT 18.0 (.94 HOLE)

$12.32

8

103-6392

BLADE, MULCH 18.0 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01

8

103-6402

BLADE-NOTCHED

product not available CALL FOR AVAILABILITY

$0.01

8

116-5175

BLADE-EXTREME 2, 18.00"

product not available CALL FOR AVAILABILITY

$0.01

9

103-3037

BUSHING,SPLINED

$23.09

10

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

11

126-2783-01

BAFFLE, DOGLEG

$46.19

12

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

14

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

15

3231-25

Bolt-Carriage 3/8-16 x 1 1/4

$1.46

16

322-2

Screw-HH 5/16-18 x 5/8

$2.98

17

109-2872

SPACER-PULLEY

$23.09

18

135-4398

IDLER - V 4.13 EOD-A

$35.19

19

126-9187

PULLEY-IDLER, FLAT

$61.59

20

126-8043

SHIELD-DUST

$2.98

21

3231-31

Bolt-Carriage 3/8-16 x 2 1/2

$7.91

23

135-0313

SCREW-CARR

$3.11

24

135-1679

ASM.-ARM, IDLER

$109.99

25

126-9195

SHIELD-GUARD, DUST

$3.11

26

126-9196

IDLER-PULLEY, FLAT

$62.69

27

103-2916

Guard-Top

$2.98

28

126-1680

SCREW-HHF

$1.94

29

135-3214

BELT-V

product not available CALL FOR AVAILABILITY

$0.01

30

116-6317

SPRING-EXTENSION

$28.59

31

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

32

135-2160

RUBBER DEFLECTOR ASM

$148.99

33

3256-4

Washer-3/8 Std

$1.94

34

116-8131

AXLE, ROLLER

$13.19

35

103-8415

ROLLER-ANTI-SCALP

$24.19

36

98-5975

Washer-Spring Disc 3/8

$3.71

37

116-9362

Screw-HH 3/8-16 x 3 3/4 GR 8

$3.11
