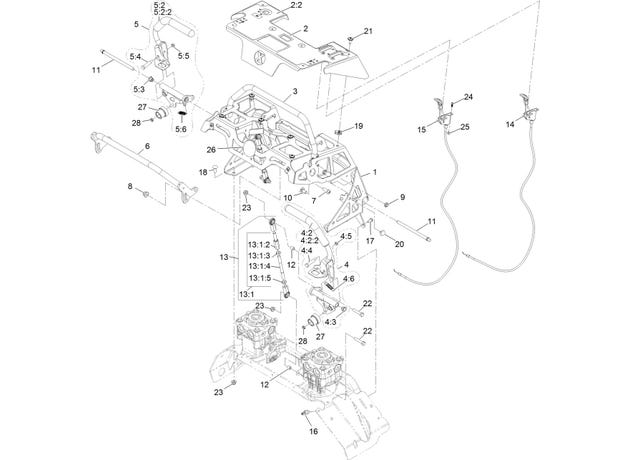

eXmark MN STS730GKA52400 Controls Assembly

1

135-4142

ASM, CONTROL TOWER W/ DECAL

$366.99

2

135-6766

ASM,CONTROL PANEL W/ DECAL

$144.99

2:2

135-6773

DECAL-CONTROL PANEL NON-EFI

$28.59

3

135-3430-03

WELD, REAR REF BAR

$45.09

4

135-1304

ASM, MOTION CONTROL, LT

$87.99

4:2

135-2546

ASM, LT CONTROL LEVER W/ GRIP

$38.49

5

135-1305

ASM, MOTION CONTROL, RT

$87.99

5:2

135-2547

ASM, RT CONTROL LEVER W/ GRIP

$38.49

5:2:2

135-3301

GRIP, DRIVE LEVER

$9.59

5:3

135-6412

BEARING, IGUS

$15.39

5:4

136-7195

BOLT, SHOULDER

$1.94

5:6

114-0249

SPRING-EXTENSION

$14.29

6

135-3432-03

WELD, FRONT REF BAR

$45.09

7

3274-94

Screw-Button Head 3/8-16 x 1

$3.11

8

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

9

121-4600

NUT-HEX

$1.25

10

3231-21

Bolt-Carriage 3/8-16 x 3/4

$1.81

11

135-1277

PIN, PIVOT

$18.69

12

1-633545

SPACER

$3.11

13

135-7116

ASM, LINKAGE

$49.49

13:1:2

116-4755

ROD-ADJUSTMENT

$51.69

13:1:3

3220-16

Nut-Jam 3/8-24 LH

$2.33

13:1:4

135-1292

ASM, MOTION CONTROL LINK

$71.49

13:1:5

3220-3

Nut-Jam 3/8-24

$0.44

14

135-2168

CONTROL, CHOKE

$32.99

15

135-2169

CONTROL, THROTTLE

$32.99

16

32180-030

CLIP-TIE

$5.03

17

32144-10

Screw-HWH 1/4-20 x .62

$5.15

18

3230-16

Bolt-Carriage 5/16-18 x 7/8

$2.98

19

107069

Nut-Retainer-Panel 1/4-20

$2.98

20

1-513658

BUMPER

$7.07

21

135-3494

SCREW, TORX

$3.11

22

322-8

SCREW-HH

$3.71

23

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

24

135-3176

SCREW, BHCS

$3.11

25

3296-2

Nut-Nyloc #10-24

$2.46

26

135-2281

DECAL-COVER

$3.24

27

126-1499

CAM

$8.51

28

3296-56

Nut-Nyloc 1/4-20 Thin

$2.72
