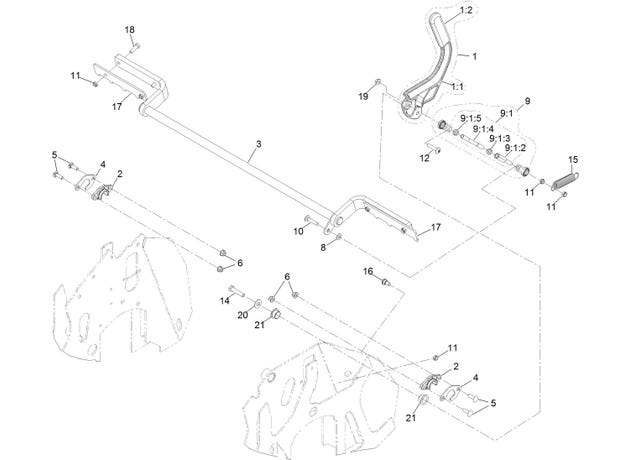

eXmark MN STS730GKA52400 Park Brake Assembly

1

142-2413

ASM, BRAKE LEVER W/ GRIP

$58.29

1:1

135-6984-03

WELD, BRAKE LEVER

$115.99

1:2

1-633268

GRIP-LEVER

$15.39

2

115-5065

BUSHING-FLANGE

$8.51

3

142-3739-03

WELD-BRAKE SHAFT

$162.99

4

135-7867

SUPPORT, BEARING

$5.99

5

3230-22

Bolt-Carriage 5/16-18 x 1 Sp

$2.59

6

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

8

3256-23

Washer-5/16 SAE

$2.59

9

135-7116

ASM, LINKAGE

$49.49

9:1:2

116-4755

ROD-ADJUSTMENT

$51.69

9:1:3

3220-16

Nut-Jam 3/8-24 LH

$2.33

9:1:4

135-1292

ASM, MOTION CONTROL LINK

$71.49

9:1:5

3220-3

Nut-Jam 3/8-24

$0.44

10

3230-4

Bolt-Carriage 5/16-18 x 1 1/2

$4.43

11

3296-47

Nut-Nyloc 5/16-18 Thin

$4.31

12

126-7439

SCREW-TORX

$2.98

14

323-52

SCREW-HH

$4.67

15

1-323161

SPRING-IDLER

$12.09

16

120-9471

BOLT-SHOULDER

$5.75

17

135-6577-03

PLATE, SNUBBER

$19.79

18

322-5

Screw-HH 5/16-18 x 1

$0.74

19

32128-25

Nut-Hex 5/16-18 Side Lock

$3.83

20

3256-4

Washer-3/8 Std

$1.94

21

135-7091

BUSHING, IGUS

$7.55
