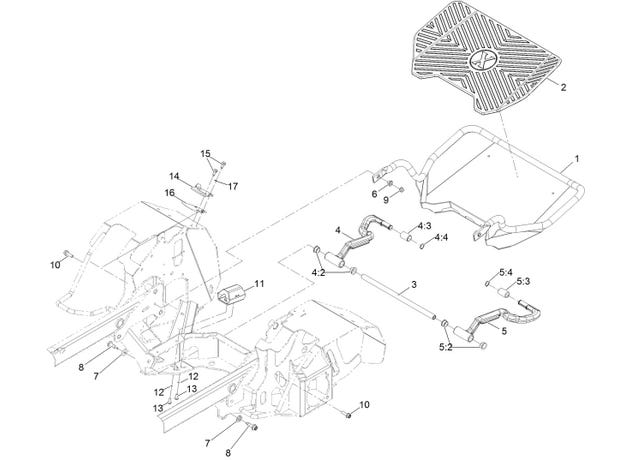

eXmark MN STS730GKA52400 Platform Assembly

1

135-1264-03

WELD, PLATFORM

$302.99

2

142-3129

MAT, PLATFORM

$59.39

3

135-1336

SHAFT, CROSS

$47.29

4

135-2237

ASM, RT ARM W/ BUSHINGS

$115.99

5

135-2236

ASM, LT ARM W/ BUSHINGS

$115.99

5:2

109-8054

Bushing-Flanged

$5.75

5:3

135-6438

BUSHING, SLEEVE

$10.07

5:4

32120-72

Ring-Snap

$2.72

6

109-8788

BUSHING-FLANGED

$7.31

7

1-603610

Washer-Spring Disc 7/16

$5.75

8

135-7001

SCREW-HHF

$7.55

9

32128-21

Nut-3/8-16 Flanged Side Lock

$0.97

10

135-4712

SCREW, HHF

$1.55

11

135-3993

BUMPER

$46.19

12

3255-8

Washer-Lock 5/16 (Ext-Tooth)

$0.14

13

126-6268

Screw-Truss HD 5/16-18 x 3/4 Torx Plus

$1.81

14

135-4601-03

LATCH, PLATFORM

$18.69

15

126-4424

Screw-HHF Shoulder 3/8-16 x 3/4 TF

$2.98

16

135-5206

DECAL-LATCH LOCK

$7.79

17

142-2432

WASHER, WAVE

$3.71

17

135-6584

WASHER, PLASTIC

$1.55
