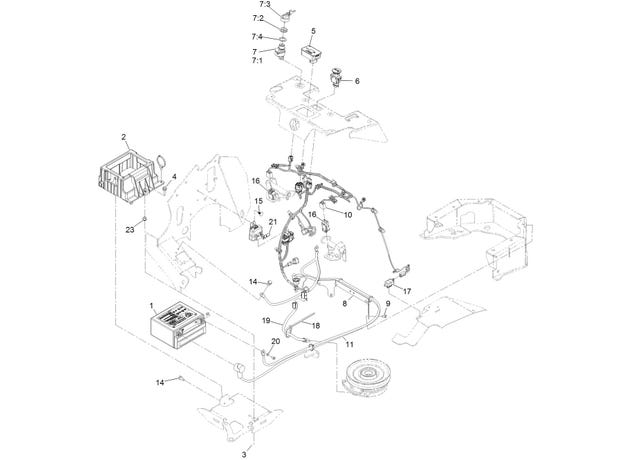

eXmark MN STS651GKA48400 Electrical Assembly

1

135-4421

BATTERY, AGM, NON-SPILLABLE

$186.04

2

142-2450

BOX, BATTERY

$18.69

3

135-4473

NUT, SNAP

$3.24

4

115-5142

SCREW-HHF

$10.79

5

135-7189

MODULE-HOUR METER

$178.99

6

126-6187

SWITCH-PTO, SEALED

$56.09

7

126-6285

IGNITION SWITCH ASM

$56.09

7:2

108-8660

NUT-MOUNTING

$9.59

7:3

106-5270

IGNITION KEY SET

$20.89

7:4

108-8659

WASHER-BACKUP

$13.19

8

135-1924-03

SUPPORT, BATTERY CABLE

$18.69

9

32104-17

Screw-HWH 1/4-20 x 1/2 Tap

$1.39

10

142-2406

HARNESS-WIRE

$272.99

11

135-2126

HARNESS-BATTERY

$94.99

14

32144-11

Screw-HWH 5/16-18 x 3/4 TF

$8.51

15

117-2382

PLUG-PLASTIC

$0.83

16

104-3338

Switch-Delta

$56.09

17

110-6765

SWITCH

$14.29

18

1-303335

Tie-Cable 7 15/16 (Large)

product not available CALL FOR AVAILABILITY

$0.01

19

109-9274

HARNESS-CLUTCH

$20.89

20

1-303435

Washer-Spring Disc 1/4

$1.81

21

126-7875

DECAL-FUSE

$2.98

23

256-116

BUSHING-FLANGE

$4.55

99

135-7732

HARDWARE KIT, BATTERY

$3.11
