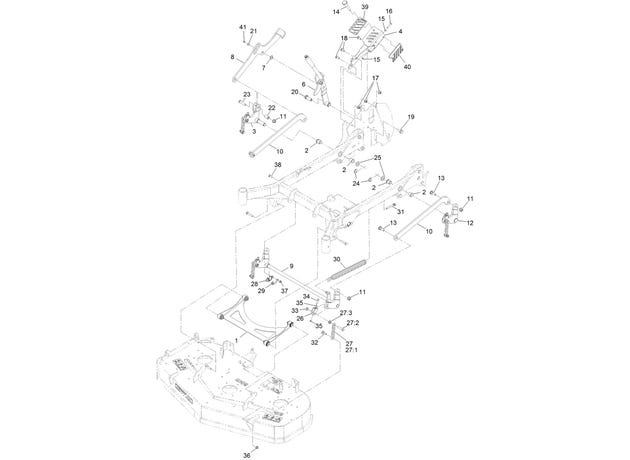

eXmark MN STS650AKC48400 Deck Lift Assembly

1

142-4364

ASM, DECK STRUT

$104.99

2

135-1248

BUSHING, IGUS

$5.75

3

135-4586-03

WELD, BELLCRANK, RT

$57.19

4

142-2300-03

WELD, HOC INDEX

$104.99

6

142-6677

ASM- LEVER HOC

$146.99

7

119-7640

WASHER-THRUST

$3.83

8

142-3040-03

STRAP, HOC INDEX

$85.99

9

135-4585-03

WELD, HOC CROSS SHAFT

$184.99

10

135-1253-03

STRAP, HOC LIFT

$56.09

11

99-5107

Nut-Lock 1/2-13

$2.20

12

135-4587-03

WELD, BELLCRANK

$57.19

13

135-1259

BOLT, SHOULDER

$16.49

14

126-5401

PIN-HOC

$21.99

15

3218-3

NUT-JAM

$0.74

16

323-50

BOLT-HH

$1.55

17

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

18

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

19

3234-38

SCREW-HHF

$6.71

20

142-2181

PIVOT, HOC LEVER

$15.39

21

3256-67

WASHER

$0.74

22

135-3944

SPACER, HOC

$5.99

23

135-3945

SCREW-HSBH

$9.59

24

32151-103

E-Ring

$3.47

25

119-2332

WASHER-FLAT

$2.98

26

109-9066

YOKE-ADJUST, DECK

$8.51

27

116-0756

DECK LIFT CHAIN ASM

$15.39

27:1

1-633447

CHAIN-LIFT, DECK

$11.99

27:2

109-9065

Screw-HH 7/16-14 x 2

$3.71

28

115-5065

BUSHING-FLANGE

$8.51

29

116-2887

GUSSET-LIFT, DECK

$5.75

30

116-0886

SPRING-EXTENSION

$126.99

31

92-7674

Screw-SHCS 3/8-16 x 2.212

$3.11

32

109-9840

Screw-Hex Flange 3/8-16 x .80

$5.75

33

32128-37

Nut-Whizlock 7/16-14

$4.67

34

322-47

Screw-HH 5/16-18 x 1 1/4

$2.72

35

3218-2

Nut-Jam 5/16-18

$0.59

36

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

37

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

38

3230-2

Bolt-Carriage 5/16-18 x 1

$1.68

39

135-2280

DECAL-HEIGHT OF CUT

$9.11

40

135-5337

PAD, KNEE

$12.09

41

142-2216

SCREW-BHT

$7.31
