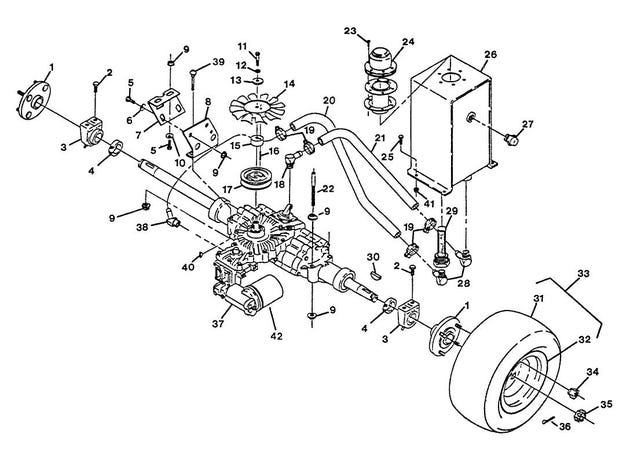

eXmark MN TR-22KC Axle and Hydraulics

#
Part #
Item
Price
Qty
Add
1
112-9049
WHEEL HUB ASM
$174.99
2
3234-12
SCREW-HHF
$1.94
3
1-543485
Bearing, pillow base
$112.99
4
1-373021
Clamp, collar (1")

product not available CALL FOR AVAILABILITY

$0.01
5
323-4
Screw-HH 3/8-16 x 3/4
$4.31
6
98-5975
Washer-Spring Disc 3/8
$3.71
7
1-543996-01
Stabilizer, axle (upper)

product not available CALL FOR AVAILABILITY

$0.01
8
1-543476-01
Stabilizer, (axle lower)
$39.59
9
3290-357
Nut-Whizlock 3/8-16
$1.11
10
3256-4
Washer-3/8 Std
$1.94
11
321-9
SCREW-HH
$5.39
12
1-805004
Washer-Lock 1/4 Heavy
$1.55
13
1-503033
Washer-Retainer, Pulley
$5.75
14
1-543359
Fan, 7" OD/10 blade
$32.99
15
1-543317
Spacer, fan
$15.39
16
1-806328
Rollpin, 7/32 x 7/8

product not available CALL FOR AVAILABILITY

$0.01
17
1-543928
Pulley, cast iron

product not available CALL FOR AVAILABILITY

$0.01
18
1-543887
Elbow, 90°.

product not available CALL FOR AVAILABILITY

$0.01
19
1-543892
Hose Clamp
$7.31
20
1-543930
Hose, 16.5 Push Lok
$56.09
21
1-543931
Hose, 8.0 Push Lok
$24.19
22
1-543054
Pin, guide
$9.71
23
1-802002
SCREW
$2.85
24
1-543541
Breather, filler and cap
$86.99
25
322-3
Screw-HH 5/16-18 x 3/4
$1.11
26
1-542913-03
Tank, hydraulic

product not available CALL FOR AVAILABILITY

$0.01
27
1-543894
Oil Eye, hyd tank
$24.19
28
1-543889
Elbow, 90°.

product not available CALL FOR AVAILABILITY

$0.01
29
1-543864
Suction strainer
$158.99
30
3257-15
KEY-WOODRUFF
$12.09
31
144-3665
TIRE
$109.99
32
1-513042
WHEEL
$101.99
33
144-3664
WHEEL-ASSEMBLY
$176.99
34
242-50
Nut-Lug 1/2-20
$2.11
35
32136-5
NUT-HEX, SLOTTED
$9.11
36
1-806800
Pin-Cotter 9/64 x 1 1/2
$2.98
37
1-543055
Transaxle 851-114 Series

product not available CALL FOR AVAILABILITY

$0.01
38
1-543888
Elbow, 45°.
$46.19
39
1-807525
Bolt, 3/8-16x2-3/4 carriage
$8.99
40
3257-32
KEY-WOODRUFF
$2.98
41
32128-20
Nut-Whizlock 5/16-18
$1.39
42
109-4180
FILTER-25 MICRON, BI-DIRECTIONAL
$50.59

1-603919
O-Ring-SAE #10
$3.83

1-840022
Pro-Lock,Nut Type (.5cc Tube)
$18.69
