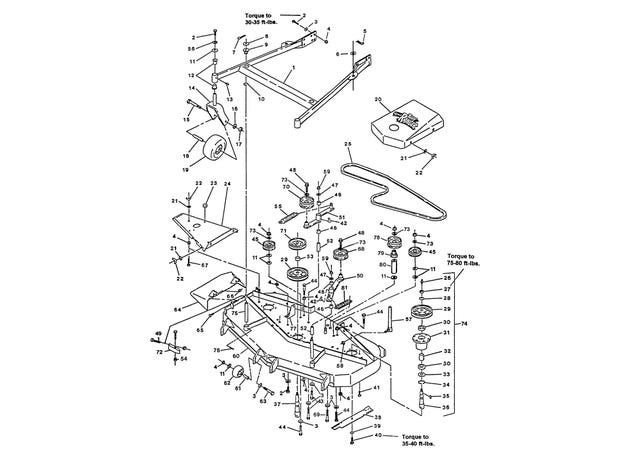

eXmark MN TR-18KC 60" Mower Deck

1

1-604847

Support,deck 1-612094-01 w/bshgsanddecals

product not available CALL FOR AVAILABILITY

$0.01

2

323-6

Screw-HH 3/8-16 x 1

$2.98

3

98-5975

Washer-Spring Disc 3/8

$3.71

4

3290-357

Nut-Whizlock 3/8-16

$1.11

5

1-806006

Hairpin, cotter

$1.55

6

1-323539

SPACER

$2.72

7

1-806009

Hairpin, .177

$3.24

8

1-513338

WASHER-FLAT

$4.55

9

1-513336

BUSHING-DECK

$25.29

10

32120-33

RING-RETAINING

$8.15

11

1-373034

Washer

$3.83

12

1-303514

BEARING-FLANGED

$13.19

13

302-52

FITTING-GREASE

$7.31

14

116-7941-01

FORK, CASTER

$83.99

15

325-20

Screw-HH 1/2-13 x 6

$8.51

16

3253-7

WASHER-LOCK

$1.25

17

3217-9

NUT-HH

$0.74

18

1-513547

SPACER

$13.19

19

103-2171

Kit,semi-pneumatic wheel replacement

$120.99

20

1-544849

Cover, Deck Drive Belt - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

22

1-543678

NUT-WING

$13.19

23

1-513291

Bumper, seat

product not available CALL FOR AVAILABILITY

$0.01

24

1-542588-01

Cover, deck

$184.99

25

1-603045-SL

BELT-DRIVE, BLADE WITH SLEEVE

$83.99

26

302-19

Zerk-1/4-28 Str

$2.85

27

3219-6

Nut-Hex 5/8-18

$4.43

28

1-513208

Washer-Spring Disc 5/8

$9.95

29

1-513207

Sheave, blade drive

$103.24

30

1-303543

Cutter housing bearing

$43.99

31

1-414315

HOUSING,BEARING W/O-RING

$197.99

32

1-513188

Spacer, bearing

$23.09

33

1-513193

Seal, mech dust

$7.67

34

1-808506

Retaining ring

$7.55

35

3257-32

KEY-WOODRUFF

$2.98

36

1-603031

Spindle - Outer Blade

$151.99

37

1-603022

Spindle - Center Blade

$163.99

38

103-3233-S

SPK, BLADE SOLID 20.5

$38.49

39

1-513435

Washer-Spring Disc 1/2

$5.99

40

3213-1

SCREW-HH

$2.72

41

1-809035

Screw, 3/8-16 x 1 taptite

$5.63

42

302-40

Zerk-90° 1/4-28

$3.59

43

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

44

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

45

1-303516

Pulley, V-Idler

$54.99

46

1-513034

SLEEVE-BEARING

$8.15

47

3256-4

Washer-3/8 Std

$1.94

48

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

49

322-2

Screw-HH 5/16-18 x 5/8

$2.98

50

1-602867

Arm, deck drive idler

product not available CALL FOR AVAILABILITY

$1.00

51

1-602591

Arm, deck idler

product not available CALL FOR AVAILABILITY

$1.00

52

1-603384

BUSHING-PIVOT, IDLER

$14.29

53

1-603504

Spacer, tube

$18.69

54

32128-20

Nut-Whizlock 5/16-18

$1.39

55

1-603413

SPRING-EXTENSION

$24.19

56

3253-5

WASHER-LOCK

$0.44

57

1-411532

KIT,SUPPORT LINK W/PIN

$135.99

58

1-803031

Nut, 3/8-24 torque

product not available CALL FOR AVAILABILITY

$0.01

59

3296-39

Nut-Nyloc 3/8-16

$2.98

60

1-612149

Deck, 1-612286-01 w/decals, rodsandbaffle

product not available CALL FOR AVAILABILITY

$0.01

61

1-603602

BUSHING,ROLLER

$24.19

62

1-603299

ROLLER-SCALP, ANTI

$23.09

63

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

64

109-2758-01

Wld, Chute Discharge

$173.99

65

322-5

Screw-HH 5/16-18 x 1

$0.74

66

3296-29

Nut-Nyloc 5/16-18

$2.72

67

1-800031

Tapbolt, 3/8-16 x 2 3/4

product not available CALL FOR AVAILABILITY

$0.01

68

1-613098

PULLEY-IDLER

$48.39

69

323-16

SCREW-HH

$3.47

70

1-603497

Pulley, idler

$56.09

71

103-2270

Sheave, mower drive

$73.69

72

1-602913-01

Baffle, Discharge

$47.29

73

3256-24

Washer-3/8 SAE

$0.83

74

1-604262

Drive Assy - Outer Blade

$534.23

75

1-603001

Rod, deck support

$46.19

76

32121-15

PIN-ROLL

$1.81

77

1-603620-01

Bracket, spring anchor

$26.39

78

1-603805

PULLEY-IDLER

$56.09

79

1-513791

Bushing

$5.99

80

1-603494

Spacer

$10.79

81

1-603414

SPRING-EXTENSION

$21.99



1-513810

BUSHING

$6.59



1-513809

BEARING

$36.29



1-513808

TIRE

$43.99



1-603661

Blade - Low Lift

$19.66



103-3231

BLADE,MULCH 20.5

$32.99



103-3232-S

SPK, BLADE NOTCHED 20.5

$37.39



1-602865

Idler arm, w/bearings deck drive

$127.99



1-614025

Center Cutter Housing-Complete

$753.99



1-602604

Idler arm assy w/bearings

$133.99



1-612003

UNKNOWN

product not available CALL FOR AVAILABILITY

$0.01



1-601806

Idler Pulley Kit

$97.99
