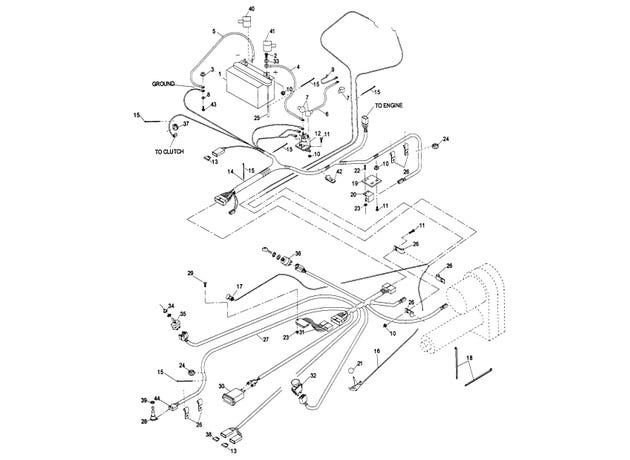

eXmark MN TR23KC Electrical Group

1

1-603479

BATTERY

product not available CALL FOR AVAILABILITY

$1.00

2

321-4

Screw-HH 1/4-20 x 3/4

$1.39

3

32128-20

Nut-Whizlock 5/16-18

$1.39

4

109-7653

POSITIVE BATTERY CABLE ASM

$36.29

5

1-543767

WIRE-GROUND

$19.79

6

1-543766

Wire, starter (Kohler)

$16.49

7

1-543393

Insulator-Solenoid

$5.75

8

1-303334

Washer-Spring Disc 5/16

$2.98

9

1-543084

WIRE,STARTER SOLONOID

$6.20

10

32128-33

Nut-Whizlock 1/4-20

$0.97

11

321-3

Screw-HH 1/4-20 x 5/8

$1.55

12

117-1197

SOLENOID

$46.19

13

1-816001

FUSE-BLADE TYPE, 20 AMP

$7.07

14

1-543065

Harness, wire (engine)

product not available CALL FOR AVAILABILITY

$0.01

15

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

16

1-633696

THROTTLE CABLE ASM

$63.79

17

1-603336

CONTROL-CHOKE

$41.79

18

3290-378

Tie-Cable

$1.11

19

1-323128

Bracket, safety switch

$25.29

20

1-513051

Switch-N.O.

$19.79

21

1-513592

Knob-Ball Red

$7.07

22

32108-55

10-24 X 5/8 FLT HD MS

$1.94

23

3296-2

Nut-Nyloc #10-24

$2.46

24

1-543296

GROMMET

$9.35

25

1-809040

Hose, battery manifold (23")

product not available CALL FOR AVAILABILITY

$0.01

26

1-513762

Clip-Loom 1/2

$8.51

27

1-553064

HARNESS,CONSOLE WIRING

$194.99

28

1-603760

Switch, seat safety

$69.29

29

1-807527

Bolt, carriage 10-24 x 3/4

product not available CALL FOR AVAILABILITY

$0.01

30

120-2244

HOURMETER

$71.49

31

1-543316

MODULE,OPC

$175.99

32

103-5221

Switch-PTO

$59.39

33

3256-2

Washer-1/4 Std

$0.59

34

1-543386

BOOT-SWITCH, TOGGLE

$31.89

35

1-543385

SWITCH-TOGGLE, DPDT

$119.99

36

1-543070

SWITCH,IGNITION

$45.09

37

1-543286

GROMMET

$13.19

38

1-816003

FUSE-BLADE TYPE, 30 AMP

$5.75

39

1-543348

Nut, 5/8-32 (seat switch)

product not available CALL FOR AVAILABILITY

$0.01

40

109-2407

INSULATOR-BATTERY

$5.75

41

1-543390

Insulator, battery negative

$8.15

42

1-603727

CLIP-LOOM

$3.11

43

322-9

Screw-HH 5/16-18 x 1 3/4

$3.71

44

1-543335

Connector, Packard 2-way

$1.42



1-603511

Key-Ignition

$2.72
