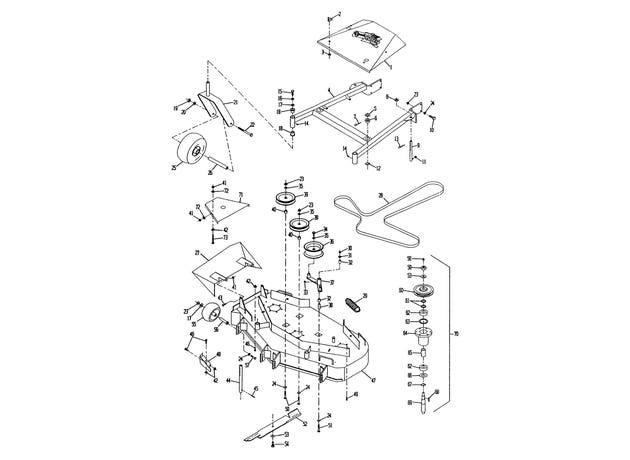

eXmark MN TT3614KA 48" Mower Deck

1

116-2711

Shield, Belt (1-413101-01) W/Decals

$307.99

2

1-323385

Knob-3 Prong

$5.75

3

1-323417

Washer-Belt Shield

$3.47

4

1-414310

Support wld w/bushings and decals

$1,079.99

5

1-513338

WASHER-FLAT

$4.55

6

1-513336

BUSHING-DECK

$25.29

7

1-806009

Hairpin, .177

$3.24

8

1-323539

SPACER

$2.72

9

1-411532

KIT,SUPPORT LINK W/PIN

$135.99

10

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

11

1-803031

Nut, 3/8-24 torque

product not available CALL FOR AVAILABILITY

$0.01

12

32120-33

RING-RETAINING

$8.15

13

1-806006

Hairpin, cotter

$1.55

14

302-52

FITTING-GREASE

$7.31

15

323-6

Screw-HH 3/8-16 x 1

$2.98

16

3253-5

WASHER-LOCK

$0.44

17

1-373034

Washer

$3.83

18

1-303514

BEARING-FLANGED

$13.19

19

3217-9

NUT-HH

$0.74

20

3253-7

WASHER-LOCK

$1.25

21

116-7941-01

FORK, CASTER

$83.99

22

325-20

Screw-HH 1/2-13 x 6

$8.51

23

3290-357

Nut-Whizlock 3/8-16

$1.11

24

98-5975

Washer-Spring Disc 3/8

$3.71

25

103-2171

Kit,semi-pneumatic wheel replacement

$120.99

26

1-513547

SPACER

$13.19

27

103-2431-01

Chute weldment, discharge

$135.99

28

1-413093

Belt, deck drive

$133.99

29

116-6317

SPRING-EXTENSION

$28.59

30

3296-39

Nut-Nyloc 3/8-16

$2.98

31

3256-4

Washer-3/8 Std

$1.94

32

1-513034

SLEEVE-BEARING

$8.15

33

302-40

Zerk-90° 1/4-28

$3.59

34

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

35

3256-24

Washer-3/8 SAE

$0.83

36

116-4666

IDLER-PULLEY, FLAT

$69.29

37

1-414398

Arm, weldmt w/bushings

product not available CALL FOR AVAILABILITY

$0.01

38

1-603384

BUSHING-PIVOT, IDLER

$14.29

39

1-613098

PULLEY-IDLER

$48.39

40

1-413113

BUSHING-IDLER

$6.35

41

3296-29

Nut-Nyloc 5/16-18

$2.72

42

32128-20

Nut-Whizlock 5/16-18

$1.39

43

322-5

Screw-HH 5/16-18 x 1

$0.74

44

1-603001

Rod, deck support

$46.19

45

32121-15

PIN-ROLL

$1.81

46

322-2

Screw-HH 5/16-18 x 5/8

$2.98

47

1-414384

Deck weldmt w/decals, discharge Baffle and support rods

$2,310.99

48

116-2297-01

Baffle, Discharge

$30.79

49

1-809035

Screw, 3/8-16 x 1 taptite

$5.63

50

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

51

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

52

103-6583-S

SPK, BLADE NOTCHED 16.25

$32.99

53

1-513208

Washer-Spring Disc 5/8

$9.95

54

103-1026

SCREW-CAP

$5.75

55

1-603299

ROLLER-SCALP, ANTI

$23.09

56

1-603602

BUSHING,ROLLER

$24.19

57

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

58

302-19

Zerk-1/4-28 Str

$2.85

59

3219-6

Nut-Hex 5/8-18

$4.43

60

1-413029

Pulley, w/hub

$75.89

61

1-543436

WASHER-SPACER

$1.55

62

1-303543

Cutter housing bearing

$43.99

63

1-303542

O-Ring

$3.11

64

1-413314

Housing, bearing

$158.99

65

1-513188

Spacer, bearing

$23.09

66

1-513193

Seal, mech dust

$7.67

67

1-808506

Retaining ring

$7.55

68

1-807268

KEY-RECTANGLE

$2.98

69

1-413035

Spindle

product not available CALL FOR AVAILABILITY

$0.01

70

1-414172

Cutter housing assy

product not available CALL FOR AVAILABILITY

$0.01

71

103-2970-01

Shield, Belt

$35.19

72

3256-3

Washer-5/16 Std

$0.74

73

1-800017

Bolt, Tap 5/16-18 x 3 1/4

$7.55



1-513808

TIRE

$43.99



1-513809

BEARING

$36.29



1-513810

BUSHING

$6.59



103-6581-S

SPK, BLADE MULCH 16.25

$35.19



103-6738-S

SPK, BLADE LOW LIFT 16.25

$32.99



MK483

Mulch Kit (48")

product not available CALL FOR AVAILABILITY

$1.00



1-850337

Exmark red touch up spray paint

$31.89
