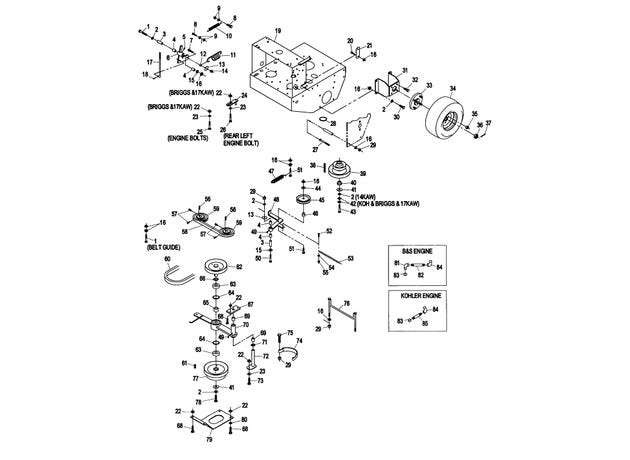

eXmark MN TT4816BV Engine Deck Group

#
Part #
Item
Price
Qty
Add
1
1-800297
Screw, 3/8-16 x 4

product not available CALL FOR AVAILABILITY

$0.01
2
1-303327
XREF 98-5975

product not available CALL FOR AVAILABILITY

$0.01
3
1-603044
BUSHING
$15.39
4
1-513034
SLEEVE-BEARING
$8.15
5
1-811006
Zerk, 1/8 - 28 straight

product not available CALL FOR AVAILABILITY

$0.01
6
1-412285
Link weldment, pivot

product not available CALL FOR AVAILABILITY

$0.01
7
1-800274
5/16-18 x 1 1/4 HH capscrew

product not available CALL FOR AVAILABILITY

$0.01
8
1-800254
Screw, 1/4-20 x 1

product not available CALL FOR AVAILABILITY

$0.01
9
1-809012
1/4-20 Whizlock Nut

product not available CALL FOR AVAILABILITY

$0.01
10
1-523498
Spring, Motion Control
$11.99
11
1-513113
Sheave, w/drum (48")
$20.89
12
1-543007
Spacer
$8.99
13
1-213069
WASHER
$2.98
14
1-804256
XREF 3296-29

product not available CALL FOR AVAILABILITY

$0.01
15
1-805260
3/8 Std. flatwasher

product not available CALL FOR AVAILABILITY

$0.01
16
1-809007
3/8-16 Whizlock Nut

product not available CALL FOR AVAILABILITY

$0.01
17
1-413282
Linkage, Lower
$19.79
18
1-806003
PIN-COTTER
$1.81
19
1-412132
Deck weldment, engine

product not available CALL FOR AVAILABILITY

$0.01
20
1-800290
3/8-16 x 3/4 HHCS

product not available CALL FOR AVAILABILITY

$0.01
21
1-633068
ARM-LIFT, DECK
$12.09
22
1-809001
Nut-Whizlock

product not available CALL FOR AVAILABILITY

$0.01
23
1-303334
Washer-Spring Disc 5/16
$2.98
24
1-322110
GUIDE-BELT
$13.19
25
1-809072
SCRW,CAP HH M8-1.25X25MM

product not available CALL FOR AVAILABILITY

$0.01
26
1-809018
SCRW,CAPHH 8MMX1.25X30MM

product not available CALL FOR AVAILABILITY

$0.01
27
1-800303
Screw, 3/8-16 x 4 1/2

product not available CALL FOR AVAILABILITY

$0.01
28
1-323366
Ring-Split
$7.07
29
1-804257
3/8-16 Nylock nut

product not available CALL FOR AVAILABILITY

$0.01
30
1-800292
3/8-16 x 1 HHCS

product not available CALL FOR AVAILABILITY

$0.01
31
1-412080-01
Mount, wheel motor 36"
$115.99
32
1-803045
Screw, whiz (ac 3/8-16 x 3/4

product not available CALL FOR AVAILABILITY

$0.01
33
1-602997
HUB ASM W/STUDS

product not available CALL FOR AVAILABILITY

$0.01
34
1-603714
Tire and Wheel Assembly

product not available CALL FOR AVAILABILITY

$0.01
35
1-513011
XREF 242-50

product not available CALL FOR AVAILABILITY

$0.01
36
1-803040
Nut-Slotted

product not available CALL FOR AVAILABILITY

$0.01
37
1-806800
Pin-Cotter 9/64 x 1 1/2
$2.98
38
1-807264
KEY,MACH 1/4X1/4X2-5/8
$5.75
39
1-413004
Sheave assy, drive
$208.99
40
1-603609
Bushing, clutch keeper
$30.79
41
1-373034
Washer
$3.83
42
1-603610
Washer-Spring Disc 7/16
$5.75
43
1-809080
Screw, m10 x 1.5 x 55
$5.63
44
1-805259
Washer-Flat

product not available CALL FOR AVAILABILITY

$0.01
45
1-603843
PULLEY-IDLER
$22.11
46
1-603496
BUSHING-IDLER
$7.91
47
1-603402
SPRING-EXTENSION
$8.87
48
1-412136
Idler arm weldment

product not available CALL FOR AVAILABILITY

$0.01
49
1-811007
ZERK,1/4-28X45ALEMITE#163

product not available CALL FOR AVAILABILITY

$0.01
50
1-800299
Screw, 3/8-16 x 2-3/4

product not available CALL FOR AVAILABILITY

$0.01
51
1-800295
3/8-16 X 1 3/4 HH capscrew

product not available CALL FOR AVAILABILITY

$0.01
52
1-809069
SCREW-HSH
$3.23
53
1-323365
Chain-Link, Twist
$17.59
54
1-805252
Washer, No.10

product not available CALL FOR AVAILABILITY

$0.01
55
1-804252
10-24 Nylock nut

product not available CALL FOR AVAILABILITY

$0.01
56
1-807272
Key-5mm x 5mm x 25mm
$6.35
57
1-803050
Setscrew-5/16-18 x 3/4
$2.98
58
1-413095
Belt,pump drive

product not available CALL FOR AVAILABILITY

$0.01
59
1-413010
SHEAVE ASM
$51.69
60
1-413096
Belt, Blade Clutch

product not available CALL FOR AVAILABILITY

$0.01
61
1-807259
KEY
$2.46
62
1-412011
Sheave w/shaft
$160.99
63
1-413111
Bearing, Clutch Shaft
$43.99
64
1-808502
RING,SNAP WLDS N5000-206

product not available CALL FOR AVAILABILITY

$0.01
65
1-413012
Spacer, Bearing Clutch
$7.55
66
1-523157
Washer
$1.81
67
1-413049-01
Plate, Clutch Pivot
$41.79
68
1-800273
SCRW,CAP HH 5/16-18X1

product not available CALL FOR AVAILABILITY

$0.01
69
1-413207
Pivot, Bearing
$14.29
70
1-412417
Arm Weldmt, Clutch

product not available CALL FOR AVAILABILITY

$0.01
71
1-413235
Washer, Spacer
$2.98
72
1-412138-03
Pivot Pin weldment
$40.69
73
1-800271
5/16-18 x 3/4 HH capscrew

product not available CALL FOR AVAILABILITY

$0.01
74
1-413062
Band, Brake Clutch
$57.19
75
1-800294
Screw, 3/8-16 x 1 1/2

product not available CALL FOR AVAILABILITY

$0.01
76
1-412325
Guide, Belt weldment

product not available CALL FOR AVAILABILITY

$0.01
77
1-412031
Sheave, w/drum (36")
$143.99
78
1-800521
Screw, Hex Cap 3/8-24 x 1 G8
$1.55
79
1-413009-01
Plate, Guard
$62.69
80
1-805258
5/16 Std. flat washer

product not available CALL FOR AVAILABILITY

$0.01
81
1-403124
ELBOW-90 DEG
$25.29
82
1-543232
NIPPLE
$19.79
83
1-543233
CAP,3/8NPT HEX
$16.49
84
1-303431
FITTING-90 DEG
$32.99
85
1-323326
NIPPLE,3/8 NPT SCH40
$13.19

1-800275
5/16-18 x 1 1/2 HH capscrew

product not available CALL FOR AVAILABILITY

$0.01

1-800276
Screw, 5/16-18 x 1-3/4

product not available CALL FOR AVAILABILITY

$0.01

1-613150
Stud, 1 /2-20

product not available CALL FOR AVAILABILITY

$0.01

1-414143
Link Pivot w/Bearing
$117.99

1-412082-01
Mount-Wheel Motor
$118.99

1-603427
Tire 16 x 6.50-8

product not available CALL FOR AVAILABILITY

$0.01

1-603715
RIM-WHEEL
$70.39

1-800819
Screw, 7/16-20 x 2-1/2

product not available CALL FOR AVAILABILITY

$0.01

1-414141
Idler arm weldmt w/brgs
$138.99

1-414418
Clutch Arm w/Bearings
$364.99

1-412028
Sheave w/drum (48")
$148.99

1-850337
Exmark red touch up spray paint
$31.89

1-840022
Pro-Lock,Nut Type (.5cc Tube)
$18.69
