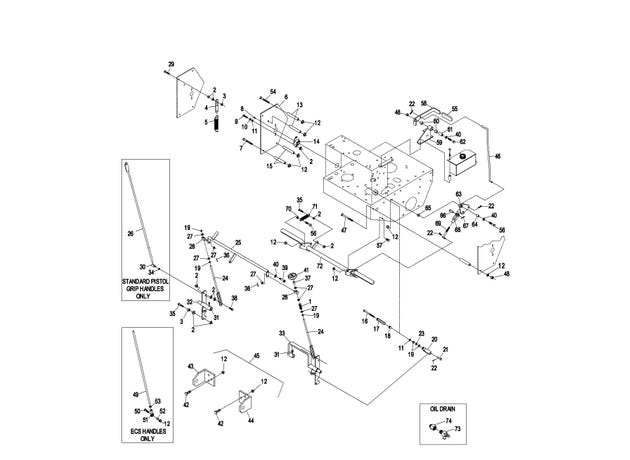

eXmark MN TT3615KAC Engine Deck Group (Part 2)

1

1-323245

Spring-Compression

$7.07

2

32128-20

Nut-Whizlock 5/16-18

$1.39

3

3296-29

Nut-Nyloc 5/16-18

$2.72

4

1-613089

TAB-SPRING, EXTENSION

$9.95

5

1-603693

SPRING-EXTENSION

$15.39

6

1-413201-01

SHIELD

product not available CALL FOR AVAILABILITY

$0.01

8

302-19

Zerk-1/4-28 Str

$2.85

9

322-3

Screw-HH 5/16-18 x 3/4

$1.11

10

1-805005

Washer-Lock 5/16 Heavy

$1.55

11

3256-2

Washer-1/4 Std

$0.59

12

3290-357

Nut-Whizlock 3/8-16

$1.11

13

1-323195-01

Spacer-Shield

$8.87

14

1-633102

Bearing-Flanged

$18.69

15

1-323197-01

SPACER-SHIELD

$8.87

16

1-603737

Bolt-Neutral Return

$9.59

17

1-603807

Spring

$3.83

18

1-603735

BUSHING-FLANGED

$7.07

19

3219-2

Nut-Hex 5/16-24

$1.11

20

1-303105

Yoke-Adjustable

$13.19

21

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

22

1-806003

PIN-COTTER

$1.81

23

3220-2

Nut-Jam 5/16-24

$1.68

24

1-413350

LINK-CONTROL, SPEED

$15.39

25

1-412203

Crank weldmt

product not available CALL FOR AVAILABILITY

$0.01

26

1-413219

ROD-LEVER, DRIVE

$27.49

27

3256-23

Washer-5/16 SAE

$2.59

28

1-603676

SWIVEL-ADJUSTABLE, SHORT

$15.57

29

1-800016

BOLT-TAP, HH

$1.68

30

103-1235

SWIVEL-LEVER, DRIVE

$38.49

31

1-803022

Setscrew-5/16-18 x 5/8

$2.98

32

103-1190-01

Shaft-Control, LH

$159.99

33

103-1191-01

Shaft-Control, RH

product not available CALL FOR AVAILABILITY

$0.01

34

32151-47

RING-RETAINING

$3.24

35

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

36

3272-5

Pin-Cotter 3/32 x 1/2

$1.81

37

1-603903

SPACER

$5.99

38

1-403180

Screw-HH 5/16-18 x 1 1/4 Sp

$2.98

39

1-809056

SCREW-HSH SHLDR

$8.51

40

3256-24

Washer-3/8 SAE

$0.83

41

1-413151

KNOB-TRACKING

$9.59

42

323-6

Screw-HH 3/8-16 x 1

$2.98

43

1-413252-01

Bracket, sulky LH

product not available CALL FOR AVAILABILITY

$0.01

44

1-413254-01

Bracket, sulky RH

$64.89

45

1-411255

Kit, Sulky Hitch

product not available CALL FOR AVAILABILITY

$1.00

46

1-413492

Linkage, upper brake

$59.39

47

323-23

SCREW-HH

$6.11

48

3296-39

Nut-Nyloc 3/8-16

$2.98

49

103-1148

Rod,drive lever

$19.79

50

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

51

103-1167

JOINT-BALL END, .38x.38FE LH

$32.99

52

103-1166

SPACER-TUBE, PUMP LINK

$7.19

53

3220-16

Nut-Jam 3/8-24 LH

$2.33

54

323-16

SCREW-HH

$3.47

55

1-303020

GRIP-LEVER

$2.98

56

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

57

323-4

Screw-HH 3/8-16 x 3/4

$4.31

58

1-412501-03

Lever-Parkbrake

product not available CALL FOR AVAILABILITY

$0.01

59

1-414504

Bracket ASM

$75.99

60

1-413347

SLEEVE-BUSHING

$2.98

61

1-413344

Bushing-Pivot

$19.79

62

323-10

Screw-HH 3/8-16 x 2

$0.97

63

1-414508

Bellcrank ASM

$63.79

64

1-303548

Bushing-Plastic

$5.75

65

32128-21

Nut-3/8-16 Flanged Side Lock

$0.97

66

1-808285

Pin-Clevis 3/8 x 1 1/8

$3.47

67

3272-10

Pin-Cotter 1/8 x 3/4

$1.39

68

1-633131

YOKE-LINKAGE, BRAKE

$16.49

69

1-413489

Linkage-Lower

$23.09

70

3218-3

NUT-JAM

$0.74

71

1-323161

SPRING-IDLER

$12.09

72

103-2085-03

BRAKE ASM

product not available CALL FOR AVAILABILITY

$0.01

73

103-1965

Valve-Drain, Oil

$57.19

74

103-1966

ADAPTER-STR

$18.69



103-0265

Spring, neutral return

$6.47



1-850337

Exmark red touch up spray paint

$31.89



103-2004-03

BRAKE

product not available CALL FOR AVAILABILITY

$0.01
