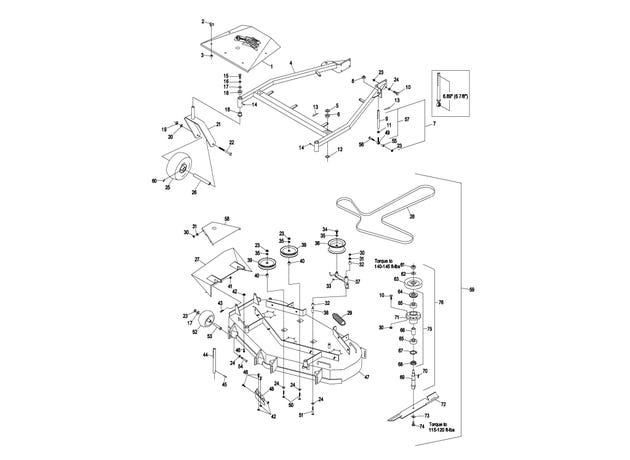

eXmark MN TT3615KAC 52" Mower Deck

1

1-414388

Shield, belt w/decals

product not available CALL FOR AVAILABILITY

$0.01

2

1-323385

Knob-3 Prong

$5.75

3

1-323417

Washer-Belt Shield

$3.47

4

1-414311

Support wld w/bushings and decals

$1,090.99

5

1-413425

SPACER-DECK SUPPORT

$7.07

6

1-513336

BUSHING-DECK

$25.29

7

1-611216

Kit, Link Assembly

product not available CALL FOR AVAILABILITY

$0.01

8

1-323539

SPACER

$2.72

9

1-413525

Link, rear deck support

$45.09

10

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

11

3219-3

Nut-Hex 3/8-24

$2.07

12

32120-33

RING-RETAINING

$8.15

13

1-806009

Hairpin, .177

$3.24

14

302-52

FITTING-GREASE

$7.31

15

323-6

Screw-HH 3/8-16 x 1

$2.98

16

3253-5

WASHER-LOCK

$0.44

17

1-373034

Washer

$3.83

18

1-303514

BEARING-FLANGED

$13.19

19

3217-9

NUT-HH

$0.74

20

3253-7

WASHER-LOCK

$1.25

21

1-522143-01

Fork, caster

product not available CALL FOR AVAILABILITY

$0.01

22

325-20

Screw-HH 1/2-13 x 6

$8.51

23

3290-357

Nut-Whizlock 3/8-16

$1.11

24

98-5975

Washer-Spring Disc 3/8

$3.71

25

103-1224

DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

26

103-2169

Spacer,front caster (semi-pneumatic)

$14.29

27

1-602571-01

Chute, discharge

$169.99

28

1-413308

Belt, deck drive

$139.99

29

1-633151

SPRING-EXTENSION

product not available CALL FOR AVAILABILITY

$0.01

30

3296-39

Nut-Nyloc 3/8-16

$2.98

31

3256-4

Washer-3/8 Std

$1.94

32

1-513034

SLEEVE-BEARING

$8.15

33

302-40

Zerk-90° 1/4-28

$3.59

34

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

35

3256-24

Washer-3/8 SAE

$0.83

36

1-413099

PULLEY-IDLER

$31.90

37

1-412394-03

Arm, weldment

product not available CALL FOR AVAILABILITY

$0.01

38

1-603384

BUSHING-PIVOT, IDLER

$14.29

39

1-613098

PULLEY-IDLER

$48.39

40

1-413113

BUSHING-IDLER

$6.35

41

3296-29

Nut-Nyloc 5/16-18

$2.72

42

32128-20

Nut-Whizlock 5/16-18

$1.39

43

322-5

Screw-HH 5/16-18 x 1

$0.74

44

1-603001

Rod, deck support

$46.19

45

1-806332

Roll pin, 1/4 x 1-1/2

product not available CALL FOR AVAILABILITY

$0.01

46

322-2

Screw-HH 5/16-18 x 5/8

$2.98

47

1-414385

Deck weldmt w/decals, discharge Baffle and support rods

$2,886.99

48

1-602913-01

Baffle, Discharge

$47.29

49

1-613204

BALLJOINT

$32.99

50

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

51

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

52

1-603299

ROLLER-SCALP, ANTI

$23.09

53

1-603602

BUSHING,ROLLER

$24.19

54

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

55

1-603050

Spacer

$7.91

56

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

57

1-414521

Link Assy

product not available CALL FOR AVAILABILITY

$0.01

58

103-2971-01

Shield, Belt

$72.59

59

103-0322

Asm, Deck Complete

product not available CALL FOR AVAILABILITY

$1.00

60

302-61

FITTING-GREASE

$12.09

61

3217-46

Nut-Hex 3/4-16 Heavy

$13.19

62

103-2802

Washer-Spring Disc 3/4

$5.75

63

1-413424

Sheave, w/hub 6 5/16" O.D.

$70.39

64

103-1330

Guard-Bearing Top

$5.75

65

103-2477

BEARING-JACKSHAFT

$60.49

66

103-2534

Spacer-Bearing

$9.59

67

32120-8

RING-SNAP

$3.24

68

103-2535

Spacer-Guard Bottom

$13.19

69

103-2788

Shaft, Spindle

$81.99

70

1-807268

KEY-RECTANGLE

$2.98

71

1-323532

HOUSING-SPINDLE

product not available CALL FOR AVAILABILITY

$0.01

72

103-2528

Blade-Notched

$11.98

73

1-513208

Washer-Spring Disc 5/8

$9.95

74

103-1026

SCREW-CAP

$5.75

75

103-2547

Cutter housing assembly

product not available CALL FOR AVAILABILITY

$0.01

76

103-3207

Cutter Housing Complete

product not available CALL FOR AVAILABILITY

$0.01

77

103-2171

Kit,semi-pneumatic wheel replacement

$120.99



1-413303-01

Shield, belt

product not available CALL FOR AVAILABILITY

$0.01



103-2170

Bushing (semi-pneumatic)

$9.71



1-513809

BEARING

$36.29



1-412317-01

Support weldmt

product not available CALL FOR AVAILABILITY

$0.01



1-414398

Arm, weldmt w/bushings

product not available CALL FOR AVAILABILITY

$0.01



1-412313-01

Deck weldmt

product not available CALL FOR AVAILABILITY

$0.01



103-2518

BLADE-MULCH

product not available CALL FOR AVAILABILITY

$0.01



103-2508

BLADE-LIFT, LOW

product not available CALL FOR AVAILABILITY

$0.01



103-1578

Blade, Solid 18.00

product not available CALL FOR AVAILABILITY

$0.01
