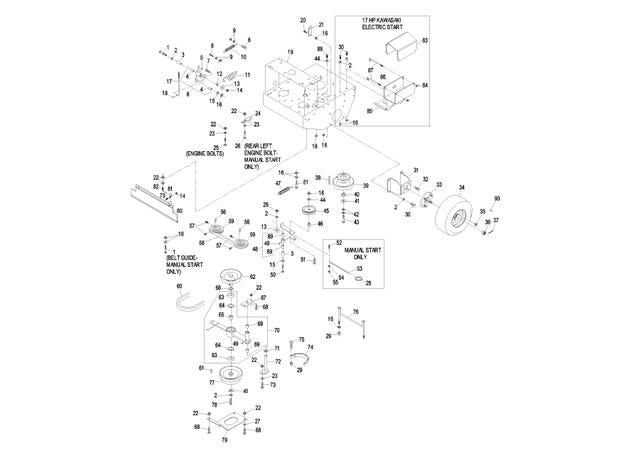

eXmark MN TT4817KAEC Engine Deck Group

1

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

2

98-5975

Washer-Spring Disc 3/8

$3.71

3

1-603044

BUSHING

$15.39

4

1-513034

SLEEVE-BEARING

$8.15

5

302-19

Zerk-1/4-28 Str

$2.85

6

1-414143

Link Pivot w/Bearing

$117.99

7

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

8

321-6

Screw-HH 1/4-20 x 1

$0.74

9

32128-33

Nut-Whizlock 1/4-20

$0.97

10

1-523498

Spring, Motion Control

$11.99

11

1-513113

Sheave, w/drum (48")

$20.89

12

1-543007

Spacer

$8.99

13

1-213069

WASHER

$2.98

14

3296-29

Nut-Nyloc 5/16-18

$2.72

15

3256-4

Washer-3/8 Std

$1.94

16

3290-357

Nut-Whizlock 3/8-16

$1.11

17

1-413282

Linkage, Lower

$19.79

18

1-806003

PIN-COTTER

$1.81

19

103-3494

Asm, Deck (103-2886-01) W/Decals

product not available CALL FOR AVAILABILITY

$1.00

20

323-4

Screw-HH 3/8-16 x 3/4

$4.31

21

1-633068

ARM-LIFT, DECK

$12.09

22

32128-20

Nut-Whizlock 5/16-18

$1.39

23

1-303334

Washer-Spring Disc 5/16

$2.98

24

1-322110

GUIDE-BELT

$13.19

25

322-7

SCREW-HH

$1.25

26

322-9

Screw-HH 5/16-18 x 1 3/4

$3.71

27

3256-3

Washer-5/16 Std

$0.74

28

1-323366

Ring-Split

$7.07

29

3296-39

Nut-Nyloc 3/8-16

$2.98

30

323-6

Screw-HH 3/8-16 x 1

$2.98

31

1-412080-01

Mount, wheel motor 36"

$115.99

32

3234-12

SCREW-HHF

$1.94

33

112-9049

WHEEL HUB ASM

$174.99

34

1-413473

Wheel And Tire ASM

$189.99

35

242-50

Nut-Lug 1/2-20

$2.11

36

32136-5

NUT-HEX, SLOTTED

$9.11

37

1-806800

Pin-Cotter 9/64 x 1 1/2

$2.98

38

1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.75

39

1-413004

Sheave assy, drive

$208.99

40

1-603609

Bushing, clutch keeper

$30.79

41

1-373034

Washer

$3.83

42

1-603610

Washer-Spring Disc 7/16

$5.75

43

3212-10

Screw-HH 7/16-20 x 2 1/2

$7.07

44

3256-24

Washer-3/8 SAE

$0.83

45

132-4718

PULLEY-IDLER, FLAT

$34.09

46

1-603496

BUSHING-IDLER

$7.91

47

1-603402

SPRING-EXTENSION

$8.87

48

1-414141

Idler arm weldmt w/brgs

$138.99

49

1481

FITTING-GREASE

$7.07

50

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

51

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

52

1-809069

SCREW-HSH

$3.23

53

1-323365

Chain-Link, Twist

$17.59

54

3256-14

WASHER-FLAT

$0.59

55

3296-2

Nut-Nyloc #10-24

$2.46

56

1-807272

Key-5mm x 5mm x 25mm

$6.35

57

1-803050

Setscrew-5/16-18 x 3/4

$2.98

58

109-1057-SL

BELT,COG A 50.55 WITH SLEEVE

$38.49

59

1-413010

SHEAVE ASM

$51.69

60

1-413096-SL

BELT,BLADE CLUTCH WITH SLEEVE

$50.59

61

1-807259

KEY

$2.46

62

1-412011

Sheave w/shaft

$160.99

63

1-413111

Bearing, Clutch Shaft

$43.99

64

32120-8

RING-SNAP

$3.24

65

1-413012

Spacer, Bearing Clutch

$7.55

66

1-523157

Washer

$1.81

67

1-413049-01

Plate, Clutch Pivot

$41.79

68

322-5

Screw-HH 5/16-18 x 1

$0.74

69

1-413207

Pivot, Bearing

$14.29

70

1-414418

Clutch Arm w/Bearings

$364.99

71

1-413235

Washer, Spacer

$2.98

72

1-412138-03

Pivot Pin weldment

$40.69

73

322-3

Screw-HH 5/16-18 x 3/4

$1.11

74

1-413062

Band, Brake Clutch

$57.19

75

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

76

1-412325

Guide, Belt weldment

product not available CALL FOR AVAILABILITY

$0.01

77

1-412031

Sheave, w/drum (36")

$143.99

78

1-800521

Screw, Hex Cap 3/8-24 x 1 G8

$1.55

79

1-413009-01

Plate, Guard

$62.69

80

103-2056

Shield-Drag

$64.89

81

1-413510

Clip-Loom

$2.98

82

1-413511

Hanger, Drag Shield

$9.11

83

103-3442

Battery, Cover (1-543891) W/Decal

$74.79

84

1-543792

Wingnut-Nyloc 1/4-20

$7.07

85

1-413541

Trim-lok

$5.39

86

103-1098

Stand w/ trim-lok

$169.99

87

1-543882

Bolt, hold down

$15.39

88

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

89

103-4681

SLEEVE-BEARING

$5.75

90

1-807019

Key-Woodruff

$18.69



1-613263

WHEEL AND TIRE ASM

$173.99



1-613264

TIRE-TURFMASTER

$141.99



1-412082-01

Mount-Wheel Motor

$118.99



1-633926

STUD-WHEEL

$5.03



1-413474

Tire-Turfmaster

$124.99



107-2475

WHEEL

$74.79



1-412028

Sheave w/drum (48")

$148.99
