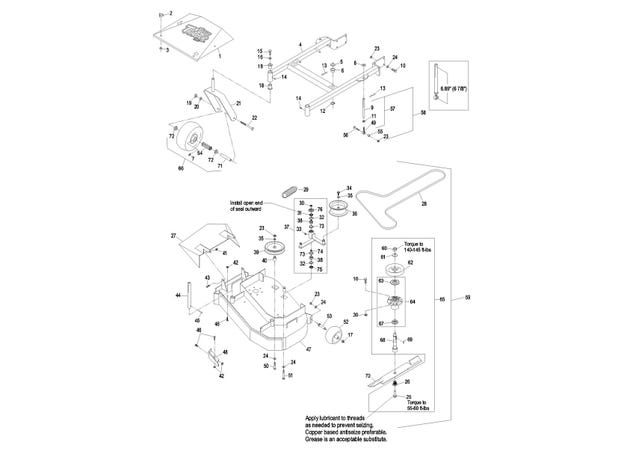

eXmark MN THP15KA363 36" Mower Deck

1

116-2710

Shield, Belt (1-413098-01) W/Decals

$284.99

2

1-323385

Knob-3 Prong

$5.75

3

1-323417

Washer-Belt Shield

$3.47

4

1-414309

Support wld w/bushings and decals

$974.99

5

1-413425

SPACER-DECK SUPPORT

$7.07

6

1-513336

BUSHING-DECK

$25.29

7

302-61

FITTING-GREASE

$12.09

8

1-323539

SPACER

$2.72

9

1-413525

Link, rear deck support

$45.09

10

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

11

3220-3

Nut-Jam 3/8-24

$0.44

12

32120-33

RING-RETAINING

$8.15

13

1-806009

Hairpin, .177

$3.24

14

302-52

FITTING-GREASE

$7.31

15

323-6

Screw-HH 3/8-16 x 1

$2.98

16

3253-5

WASHER-LOCK

$0.44

17

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

18

1-303514

BEARING-FLANGED

$13.19

19

3217-9

NUT-HH

$0.74

20

3253-7

WASHER-LOCK

$1.25

21

116-7941-01

FORK, CASTER

$83.99

22

325-20

Screw-HH 1/2-13 x 6

$8.51

23

3290-357

Nut-Whizlock 3/8-16

$1.11

24

98-5975

Washer-Spring Disc 3/8

$3.71

25

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

26

103-3037

BUSHING,SPLINED

$23.09

27

103-2431-01

Chute weldment, discharge

$135.99

28

1-413094

Belt, deck drive

$107.99

29

116-6317

SPRING-EXTENSION

$28.59

30

3296-39

Nut-Nyloc 3/8-16

$2.98

31

103-3506

Seal-Single Lip

$5.75

32

32120-10

Ring-Retaining

$1.68

33

302-40

Zerk-90° 1/4-28

$3.59

34

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

35

3256-24

Washer-3/8 SAE

$0.83

36

116-4666

IDLER-PULLEY, FLAT

$69.29

37

103-8584

Kit, Idler Arm (103-7327-03) W/Brgs

$204.99

38

103-3504

Bearing-Spherical

$24.19

39

1-613098

PULLEY-IDLER

$48.39

40

1-413113

BUSHING-IDLER

$6.35

41

3296-29

Nut-Nyloc 5/16-18

$2.72

42

32128-20

Nut-Whizlock 5/16-18

$1.39

43

322-5

Screw-HH 5/16-18 x 1

$0.74

44

1-603001

Rod, deck support

$46.19

45

32121-15

PIN-ROLL

$1.81

46

322-2

Screw-HH 5/16-18 x 5/8

$2.98

47

1-414383

Deck weldmt w/decals, discharge Baffle and support rods

$2,179.99

48

116-2297-01

Baffle, Discharge

$30.79

49

1-613204

BALLJOINT

$32.99

50

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

51

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

52

1-603299

ROLLER-SCALP, ANTI

$23.09

53

126-2928

KIT, ANTI-SCALP ROLLER AXLE

$27.49

54

1-513809

BEARING

$36.29

55

1-603050

Spacer

$7.91

56

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

58

1-411532

KIT,SUPPORT LINK W/PIN

$135.99

59

103-0320

Assembly, Cutting deck complete

product not available CALL FOR AVAILABILITY

$1.00

60

3217-46

Nut-Hex 3/4-16 Heavy

$13.19

61

103-2802

Washer-Spring Disc 3/4

$5.75

62

1-413424

Sheave, w/hub 6 5/16" O.D.

$70.39

63

103-1330

Guard-Bearing Top

$5.75

64

103-8280

Kit, Cutter Housing

$247.99

65

103-9081

Asm, Cutter Housing Complete

$427.99

66

103-2171

Kit,semi-pneumatic wheel replacement

$120.99

67

103-2535

Spacer-Guard Bottom

$13.19

68

103-9071

Kit, Spindle

$203.99

69

1-807268

KEY-RECTANGLE

$2.98

70

103-6402-S

SPK, BLADE NOTCHED 18.0 (.94 HOLE)

$31.89

71

1-513547

SPACER

$13.19

72

1-513810

BUSHING

$6.59

73

106-7159

O-Ring

$1.25

74

103-5677

Spacer

$2.98

75

103-3505

SEAL-LIP, DOUBLE

$5.75

76

103-2916

Guard-Top

$2.98



103-6392-S

SPK, BLADE MULCH 18.0 (.94 HOLE)

$31.89



103-6387-S

SPK, BLADE LOW LIFT 18.0 (.94 HOLE)

$32.99



103-6382-S

SPK, BLADE SOLID 18.0 (.94 HOLE)

$37.39



116-5175-S

SPK,BLADE-EXTREME 2, 18.00"

$31.89
