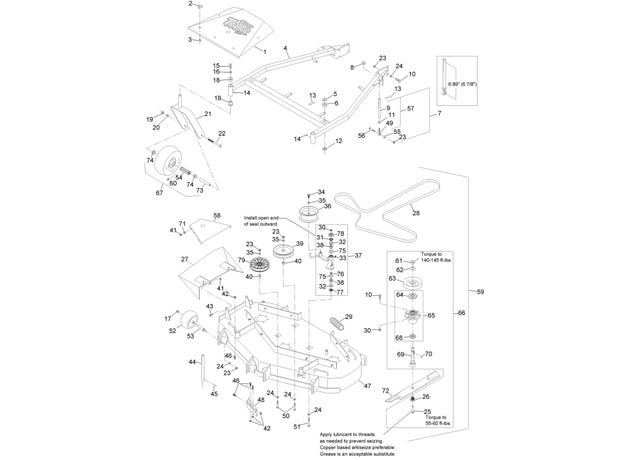

eXmark MN THP15KA363 52" Mower Deck

1

1-414388

Shield, belt w/decals

product not available CALL FOR AVAILABILITY

$0.01

2

1-323385

Knob-3 Prong

$5.75

3

1-323417

Washer-Belt Shield

$3.47

4

1-414311

Support wld w/bushings and decals

$1,090.99

5

1-413425

SPACER-DECK SUPPORT

$7.07

6

1-513336

BUSHING-DECK

$25.29

7

1-411532

KIT,SUPPORT LINK W/PIN

$135.99

8

1-323539

SPACER

$2.72

9

1-413525

Link, rear deck support

$45.09

10

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

11

3220-3

Nut-Jam 3/8-24

$0.44

12

32120-33

RING-RETAINING

$8.15

13

1-806009

Hairpin, .177

$3.24

14

302-52

FITTING-GREASE

$7.31

15

323-6

Screw-HH 3/8-16 x 1

$2.98

16

3253-5

WASHER-LOCK

$0.44

17

1-373034

Washer

$3.83

18

1-303514

BEARING-FLANGED

$13.19

19

3217-9

NUT-HH

$0.74

20

3253-7

WASHER-LOCK

$1.25

21

1-522143-01

Fork, caster

product not available CALL FOR AVAILABILITY

$0.01

22

325-20

Screw-HH 1/2-13 x 6

$8.51

23

3290-357

Nut-Whizlock 3/8-16

$1.11

24

98-5975

Washer-Spring Disc 3/8

$3.71

25

109-5958

Screw-Hex Flange 1/2-20

product not available CALL FOR AVAILABILITY

$0.01

26

103-3037

BUSHING,SPLINED

$23.09

27

1-602571-01

Chute, discharge

$169.99

28

1-413308

Belt, deck drive

$139.99

29

103-3330

Spring-Extension

$11.66

30

3296-39

Nut-Nyloc 3/8-16

$2.98

31

103-3506

Seal-Single Lip

$5.75

32

32120-10

Ring-Retaining

$1.68

33

302-40

Zerk-90° 1/4-28

$3.59

34

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

35

3256-24

Washer-3/8 SAE

$0.83

36

1-413099

PULLEY-IDLER

$31.90

37

103-8585

Kit, Idler Arm (103-7356-03) W/Brgs

$186.99

38

103-3504

Bearing-Spherical

$24.19

39

1-613098

PULLEY-IDLER

$48.39

40

1-413113

BUSHING-IDLER

$6.35

41

3296-29

Nut-Nyloc 5/16-18

$2.72

42

32128-20

Nut-Whizlock 5/16-18

$1.39

43

322-5

Screw-HH 5/16-18 x 1

$0.74

44

1-603001

Rod, deck support

$46.19

45

1-806332

Roll pin, 1/4 x 1-1/2

product not available CALL FOR AVAILABILITY

$0.01

46

322-2

Screw-HH 5/16-18 x 5/8

$2.98

47

1-414385

Deck weldmt w/decals, discharge Baffle and support rods

$2,886.99

48

1-602913-01

Baffle, Discharge

$47.29

49

1-613204

BALLJOINT

$32.99

50

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

51

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

52

1-603299

ROLLER-SCALP, ANTI

$23.09

53

99-2842

SPACER

$6.46

54

1-513809

BEARING

$36.29

55

1-603050

Spacer

$7.91

56

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

57

1-414521

Link Assy

product not available CALL FOR AVAILABILITY

$0.01

58

103-2971-01

Shield, Belt

$72.59

59

103-0322

Asm, Deck Complete

product not available CALL FOR AVAILABILITY

$1.00

60

302-61

FITTING-GREASE

$12.09

61

3217-46

Nut-Hex 3/4-16 Heavy

$13.19

62

103-2802

Washer-Spring Disc 3/4

$5.75

63

1-413424

Sheave, w/hub 6 5/16" O.D.

$70.39

64

103-1330

Guard-Bearing Top

$5.75

65

103-8280

Kit, Cutter Housing

$247.99

66

103-9081

Asm, Cutter Housing Complete

$427.99

67

103-2171

Kit,semi-pneumatic wheel replacement

$120.99

68

103-2535

Spacer-Guard Bottom

$13.19

69

103-9071

Kit, Spindle

$203.99

70

1-807268

KEY-RECTANGLE

$2.98

71

3256-3

Washer-5/16 Std

$0.74

72

103-6402

BLADE-NOTCHED

product not available CALL FOR AVAILABILITY

$0.01

73

1-513547

SPACER

$13.19

74

1-513810

BUSHING

$6.59

75

106-7159

O-Ring

$1.25

76

103-5677

Spacer

$2.98

77

103-3505

SEAL-LIP, DOUBLE

$5.75

78

103-2916

Guard-Top

$2.98

79

109-0977

PULLEY,IDLER 5"

$75.89



103-6392

BLADE, MULCH 18.0 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01



103-6387

BLADE, LOW LIFT 18.0 (.94 HOLE)

$12.32



103-6382

BLADE, SOLID 18.0 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01



103-6397

*OBS* BLADE, EXTREME 18.0 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01
