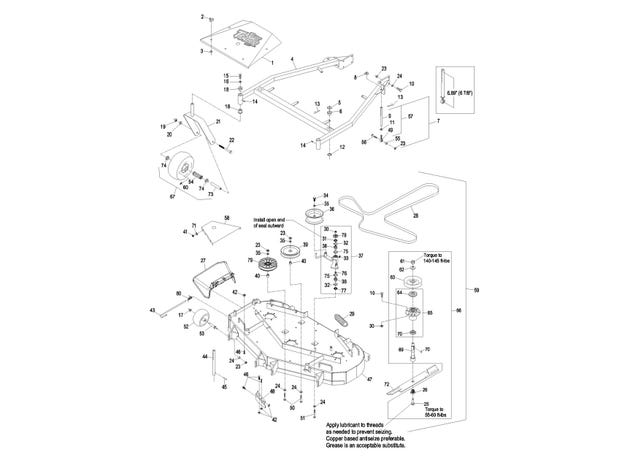

eXmark MN THP17KA363CA 52" Mower Deck

1

116-2712

Shield, Belt (1-413303-01) W/Decals

$315.99

2

1-323385

Knob-3 Prong

$5.75

3

1-323417

Washer-Belt Shield

$3.47

4

1-414311

Support wld w/bushings and decals

$1,090.99

5

1-413425

SPACER-DECK SUPPORT

$7.07

6

1-513336

BUSHING-DECK

$25.29

8

1-323539

SPACER

$2.72

9

1-413525

Link, rear deck support

$45.09

10

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

11

3220-3

Nut-Jam 3/8-24

$0.44

12

32120-33

RING-RETAINING

$8.15

13

1-806009

Hairpin, .177

$3.24

14

302-52

FITTING-GREASE

$7.31

15

323-6

Screw-HH 3/8-16 x 1

$2.98

16

3253-5

WASHER-LOCK

$0.44

17

1-373034

Washer

$3.83

18

1-303514

BEARING-FLANGED

$13.19

19

3217-9

NUT-HH

$0.74

20

3253-7

WASHER-LOCK

$1.25

21

116-7941-01

FORK, CASTER

$83.99

22

325-20

Screw-HH 1/2-13 x 6

$8.51

23

3290-357

Nut-Whizlock 3/8-16

$1.11

24

98-5975

Washer-Spring Disc 3/8

$3.71

25

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

26

103-3037

BUSHING,SPLINED

$23.09

27

109-5151

Deflector-Discharge

$54.99

28

1-413308

Belt, deck drive

$139.99

29

116-6317

SPRING-EXTENSION

$28.59

30

3296-39

Nut-Nyloc 3/8-16

$2.98

31

103-3506

Seal-Single Lip

$5.75

32

32120-10

Ring-Retaining

$1.68

33

302-40

Zerk-90° 1/4-28

$3.59

34

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

35

3256-24

Washer-3/8 SAE

$0.83

36

116-4666

IDLER-PULLEY, FLAT

$69.29

37

103-8585

Kit, Idler Arm (103-7356-03) W/Brgs

$186.99

38

103-3504

Bearing-Spherical

$24.19

39

1-613098

PULLEY-IDLER

$48.39

40

1-413113

BUSHING-IDLER

$6.35

41

3296-29

Nut-Nyloc 5/16-18

$2.72

42

32128-20

Nut-Whizlock 5/16-18

$1.39

43

109-8854

PIN-CHUTE

$16.49

44

1-603001

Rod, deck support

$46.19

45

32121-15

PIN-ROLL

$1.81

46

322-2

Screw-HH 5/16-18 x 5/8

$2.98

47

1-414385

Deck weldmt w/decals, discharge Baffle and support rods

$2,886.99

48

1-602913-01

Baffle, Discharge

$47.29

49

1-613204

BALLJOINT

$32.99

50

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

51

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

52

1-603299

ROLLER-SCALP, ANTI

$23.09

53

126-2928

KIT, ANTI-SCALP ROLLER AXLE

$27.49

54

1-513809

BEARING

$36.29

55

1-603050

Spacer

$7.91

56

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

57

1-411532

KIT,SUPPORT LINK W/PIN

$135.99
