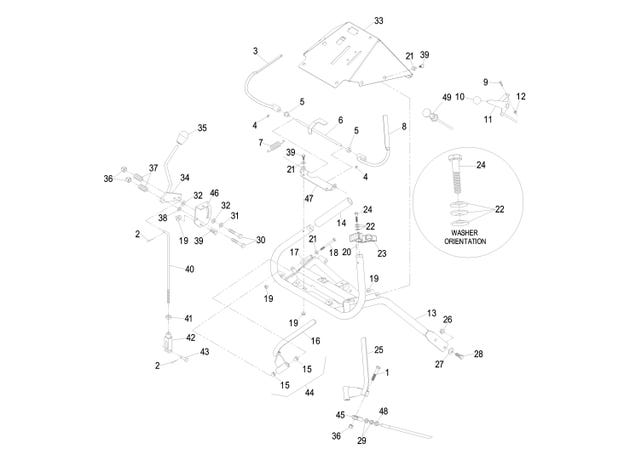

eXmark MN TT23KCE ECS Upper Handles And Controls

1

322-9

Screw-HH 5/16-18 x 1 3/4

$3.71

2

1-806003

PIN-COTTER

$1.81

3

116-4079

WLD,LH OPC LEVER

$35.19

4

1-803322

SCREW-SET

$1.55

5

1-303365

BUSHING-NYLON

$5.75

6

103-0769-03

Rod weldment, OPC

$43.99

7

1-303363

SPRING-EXTENSION

$7.07

8

116-4080

WLD,RH OPC LEVER

$35.19

9

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

10

1-513592

Knob-Ball Red

$7.07

11

1-633696

THROTTLE CABLE ASM

$63.79

12

3296-2

Nut-Nyloc #10-24

$2.46

13

103-1537-03

Handle wld, upper ecs

$621.99

14

103-0815

GRIP-BAR, HANDLE

$12.09

15

1-413152

BUSHING-SLEEVE

$2.98

16

103-2514

Asm, Drive Lever LH

$118.99

17

103-0027

BUSHING-LEVER, DRIVE

$20.89

18

321-14

SCREW-HH

$5.39

19

32128-33

Nut-Whizlock 1/4-20

$0.97

20

126-2925

PIN-SPRING

$1.55

21

3256-22

Washer-1/4 SAE

$0.59

22

1-303435

Washer-Spring Disc 1/4

$1.81

23

103-1371

Thumb latch asm RH

$30.79

24

103-0235

SCREW-HH

$1.55

26

3290-357

Nut-Whizlock 3/8-16

$1.11

27

98-5975

Washer-Spring Disc 3/8

$3.71

28

323-6

Screw-HH 3/8-16 x 1

$2.98

29

3220-3

Nut-Jam 3/8-24

$0.44

30

322-10

SCREW-HH

$1.11

31

1-603716

Washer-Friction

$5.75

32

1-323244

Washer-Friction

$8.03

33

103-1552

Console w/ decals

$311.99

34

116-8632

Lever-Shift w/Grip

$63.79

35

103-0423

Knob .38-16 nyloc

$24.19

36

3296-29

Nut-Nyloc 5/16-18

$2.72

37

1-323245

Spring-Compression

$7.07

38

3256-23

Washer-5/16 SAE

$2.59

39

321-3

Screw-HH 1/4-20 x 5/8

$1.55

40

1-413225

Rod, speed control

$15.39

41

3220-2

Nut-Jam 5/16-24

$1.68

42

1-303105

Yoke-Adjustable

$13.19

43

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

44

103-2513

Asm, Drive Lever RH

$118.99

45

103-2463

JOINT-BALL, END

$28.59

46

103-0503

Bracket,shifter slide

$15.39

47

103-0489-03

Bracket, opc axle

$24.19

48

3219-3

Nut-Hex 3/8-24

$2.07

49

1-603336

CONTROL-CHOKE

$41.79



103-1372

Thumb latch asm LH

$30.79
