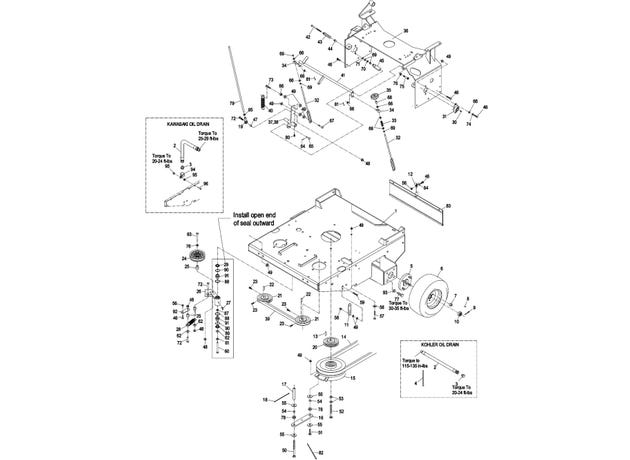

eXmark MN TT20KCE Engine Deck Group

#
Part #
Item
Price
Qty
Add
1
109-6408
Eng Deck (116-1794-01) W/ Decals

product not available CALL FOR AVAILABILITY

$0.01
2
116-4924
ENGINE OIL DRAIN HOSE ASM
$38.49
3
109-1012
Plug
$8.51
5
112-9049
WHEEL HUB ASM
$174.99
6
103-1715
Tire and wheel assy
$340.99
7
242-50
Nut-Lug 1/2-20
$2.11
8
1-807019
Key-Woodruff
$18.69
9
1-806800
Pin-Cotter 9/64 x 1 1/2
$2.98
10
32136-5
NUT-HEX, SLOTTED
$9.11
11
1-613089
TAB-SPRING, EXTENSION
$9.95
12
1-413510
Clip-Loom
$2.98
13
1-807259
KEY
$2.46
14
103-2240-SL
BELT,B 83.65 WITH SLEEVE
$61.59
15
103-0662
CLUTCH ASM
$468.99
16
1-633543-03
STRAP-CLUTCH, BRAKE
$15.39
17
1-323195-03
Standoff, Clutch
$8.99
18
1-303287
Tie-Cable 5 1/2 (Small)
$1.55
19
103-1167
JOINT-BALL END, .38x.38FE LH
$32.99
20
1-653035
PULLEY
$70.39
21
1-413010
SHEAVE ASM
$51.69
22
1-807272
Key-5mm x 5mm x 25mm
$6.35
23
1-803050
Setscrew-5/16-18 x 3/4
$2.98
24
109-4077
PULLEY-IDLER, FLAT
$21.99
25
1-603496
BUSHING-IDLER
$7.91
26
109-2578
Kit, Idler Arm W/Bearings
$200.99
27
302-40
Zerk-90° 1/4-28
$3.59
28
1-603414
SPRING-EXTENSION
$21.99
29
103-3506
Seal-Single Lip
$5.75
30
302-19
Zerk-1/4-28 Str
$2.85
31
1-633102
Bearing-Flanged
$18.69
32
1-613206
Rod, control arm
$18.69
33
1-323245
Spring-Compression
$7.07
34
126-8571
SWIVEL-ADJUSTABLE, SHORT
$5.75
35
1-413151
KNOB-TRACKING
$9.59
36
116-1792-01
Support, Tank/Handle
$484.99
37
103-1561-01
Arm, control LH
$80.29
38
103-2344
Arm, control RH - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01
39
109-2584-SL
BELT,COG A-59.5 WITH SLEEVE
$38.49
40
1-603693
SPRING-EXTENSION
$15.39
41
103-2234-01
Crank weldmt
$137.99
42
1-603737
Bolt-Neutral Return
$9.59
43
103-0265
Spring, neutral return
$6.47
44
1-603735
BUSHING-FLANGED
$7.07
45
1-303105
Yoke-Adjustable
$13.19
46
322-3
Screw-HH 5/16-18 x 3/4
$1.11
47
103-2421
Tube, pump link spacer
$7.55
48
3290-357
Nut-Whizlock 3/8-16
$1.11
49
32128-20
Nut-Whizlock 5/16-18
$1.39
50
322-38
SCREW-HH
$7.31
51
322-6
Screw-HH 5/16-18 x 1 1/4
$4.55
52
3212-12
Screw-HH 7/16-20 x 3
$3.47
53
1-603610
Washer-Spring Disc 7/16
$5.75
54
1-633545
SPACER
$3.11
55
1-613235
WASHER
$1.94
56
3296-29
Nut-Nyloc 5/16-18
$2.72
57
322-7
SCREW-HH
$1.25
58
1-303334
Washer-Spring Disc 5/16
$2.98
59
1-800016
BOLT-TAP, HH
$1.68
60
1-800805
Screw-HH 3/8-16 x 3-1/2 Gr8
$5.75
61
3253-5
WASHER-LOCK
$0.44
62
3256-4
Washer-3/8 Std
$1.94
63
323-9
Screw-HH 3/8-16 x 1 3/4
$1.68
64
1-806003
PIN-COTTER
$1.81
65
1-808280
Pin-Clevis 5/16 x 1 49/64
$2.98
66
3256-23
Washer-5/16 SAE
$2.59
67
1-403180
Screw-HH 5/16-18 x 1 1/4 Sp
$2.98
68
1-603903
SPACER
$5.99
69
3219-2
Nut-Hex 5/16-24
$1.11
70
3220-2
Nut-Jam 5/16-24
$1.68
71
3256-2
Washer-1/4 Std
$0.59
72
323-8
Screw-HH 3/8-16 x 1 1/2
$3.59
73
116-3515
SCREW-HH, SPECIAL
$1.42
74
1-805005
Washer-Lock 5/16 Heavy
$1.55
75
1-809056
SCREW-HSH SHLDR
$8.51
76
3256-24
Washer-3/8 SAE
$0.83
77
323-6
Screw-HH 3/8-16 x 1
$2.98
78
1-633630
Grommet
$6.23
79
103-1576
Rod, drive lever
$19.79
80
1-803022
Setscrew-5/16-18 x 5/8
$2.98
81
3272-5
Pin-Cotter 3/32 x 1/2
$1.81
82
3290-378
Tie-Cable
$1.11
83
103-2224
Shield, drag
$62.69
84
3256-3
Washer-5/16 Std
$0.74
85
3220-16
Nut-Jam 3/8-24 LH
$2.33
86
3218-2
Nut-Jam 5/16-18
$0.59
87
103-5677
Spacer
$2.98
88
106-7159
O-Ring
$1.25
89
103-3505
SEAL-LIP, DOUBLE
$5.75
90
32120-10
Ring-Retaining
$1.68
91
103-3504
Bearing-Spherical
$24.19
92
1-633068
ARM-LIFT, DECK
$12.09
93
98-5975
Washer-Spring Disc 3/8
$3.71
94
1-643312
Clip-Loom
$7.07
95
32128-33
Nut-Whizlock 1/4-20
$0.97
96
321-6
Screw-HH 1/4-20 x 1
$0.74

1-603306-SL
BELT,DECK DRIVE WITH SLEEVE
$60.49

103-2238
Wheel only
$97.99

103-2237
Tire only 18 x 8.50
$188.99

1-633926
STUD-WHEEL
$5.03

116-5327
ASM,HOSE OIL DRAIN CT W/PLUG
$41.79

3212-10
Screw-HH 7/16-20 x 2 1/2
$7.07

323-7
Screw-HH 3/8-16 x 1 1/4
$3.23
