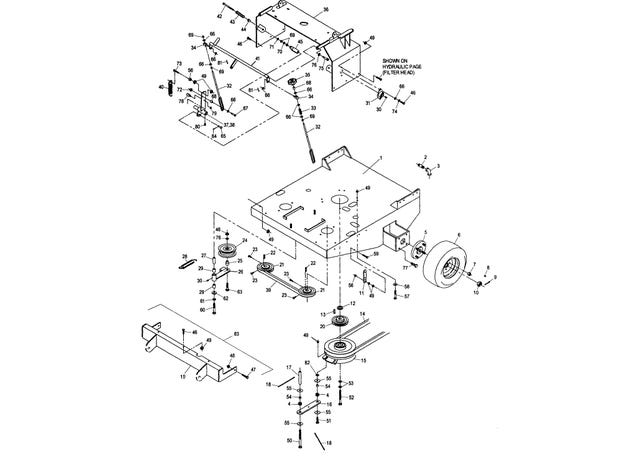

eXmark MN TT22KC Engine Deck Group

1

1-602944

Engine Deck Weldment

product not available CALL FOR AVAILABILITY

$0.00

2

1-543064

NIPPLE,PIPE

product not available CALL FOR AVAILABILITY

$0.01

3

1-303428

ELBOW-90 DEG

$13.19

4

1-633630

Grommet

$6.23

5

112-9049

WHEEL HUB ASM

$174.99

6

1-613263

WHEEL AND TIRE ASM

$173.99

7

242-50

Nut-Lug 1/2-20

$2.11

8

1-807019

Key-Woodruff

$18.69

9

1-806800

Pin-Cotter 9/64 x 1 1/2

$2.98

10

32136-5

NUT-HEX, SLOTTED

$9.11

11

1-613089

TAB-SPRING, EXTENSION

$9.95

12

103-2308

Spacer-Crankshaft

$9.95

13

1-807259

KEY

$2.46

14

1-603306-SL

BELT,DECK DRIVE WITH SLEEVE

$60.49

15

1-611223

Clutch w/strap assembled

$592.99

16

1-633543-03

STRAP-CLUTCH, BRAKE

$15.39

17

1-323195-01

Spacer-Shield

$8.87

18

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

19

1-602438-01

Hitch weldmt

product not available CALL FOR AVAILABILITY

$0.01

20

1-603589

Sheave, 4 1/4 O.D. - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

21

1-603778

Sheave - pump

$84.99

22

1-807272

Key-5mm x 5mm x 25mm

$6.35

23

1-803050

Setscrew-5/16-18 x 3/4

$2.98

24

132-4718

PULLEY-IDLER, FLAT

$34.09

25

1-603496

BUSHING-IDLER

$7.91

26

1-602521

Idler Arm ASM

$106.99

27

1-603044

BUSHING

$15.39

28

1-603402

SPRING-EXTENSION

$8.87

29

1-513034

SLEEVE-BEARING

$8.15

30

302-19

Zerk-1/4-28 Str

$2.85

31

1-633102

Bearing-Flanged

$18.69

32

1-613206

Rod, control arm

$18.69

33

1-323245

Spring-Compression

$7.07

34

126-8571

SWIVEL-ADJUSTABLE, SHORT

$5.75

35

1-413151

KNOB-TRACKING

$9.59

36

1-612165-01

Support, tank/handle

product not available CALL FOR AVAILABILITY

$0.01

37

1-611304

Arm, control LH

product not available CALL FOR AVAILABILITY

$0.01

38

103-2344

Arm, control RH - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

39

1-603809

BELT-HYDRO TRANS DR

$39.59

40

1-603693

SPRING-EXTENSION

$15.39

41

1-612173-01

Crank weldmt - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

42

1-603737

Bolt-Neutral Return

$9.59

43

1-603807

Spring

$3.83

44

1-603735

BUSHING-FLANGED

$7.07

45

1-303105

Yoke-Adjustable

$13.19

46

322-3

Screw-HH 5/16-18 x 3/4

$1.11

47

323-6

Screw-HH 3/8-16 x 1

$2.98

48

3290-357

Nut-Whizlock 3/8-16

$1.11

49

32128-20

Nut-Whizlock 5/16-18

$1.39

50

322-38

SCREW-HH

$7.31

52

3212-10

Screw-HH 7/16-20 x 2 1/2

$7.07

53

1-603610

Washer-Spring Disc 7/16

$5.75

54

1-633545

SPACER

$3.11

55

1-613235

WASHER

$1.94

56

3296-29

Nut-Nyloc 5/16-18

$2.72

57

322-7

SCREW-HH

$1.25

58

1-303334

Washer-Spring Disc 5/16

$2.98

59

1-800016

BOLT-TAP, HH

$1.68

60

323-12

Screw-HH 3/8-16 x 2 1/2

$2.98

61

3253-5

WASHER-LOCK

$0.44

62

1-373034

Washer

$3.83

63

3231-29

SCREW-CARR

$8.39

64

1-806003

PIN-COTTER

$1.81

65

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

66

3256-23

Washer-5/16 SAE

$2.59

67

1-809057

SCREW-HSH

product not available CALL FOR AVAILABILITY

$0.01

68

1-603903

SPACER

$5.99

69

3219-2

Nut-Hex 5/16-24

$1.11

70

3220-2

Nut-Jam 5/16-24

$1.68

71

3256-2

Washer-1/4 Std

$0.59

72

32128-33

Nut-Whizlock 1/4-20

$0.97

73

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

74

1-805005

Washer-Lock 5/16 Heavy

$1.55

75

1-809056

SCREW-HSH SHLDR

$8.51

76

3256-24

Washer-3/8 SAE

$0.83

77

3234-12

SCREW-HHF

$1.94

78

1-413227

Swivel, drive lever

product not available CALL FOR AVAILABILITY

$0.01

79

32151-73

RING-CLIP

$3.11

80

1-803022

Setscrew-5/16-18 x 5/8

$2.98

81

3272-5

Pin-Cotter 3/32 x 1/2

$1.81

82

3256-3

Washer-5/16 Std

$0.74

83

1-601000

Hitch Kit, sulky

product not available CALL FOR AVAILABILITY

$1.00



103-0662

CLUTCH ASM

$468.99



107-2475

WHEEL

$74.79



1-613264

TIRE-TURFMASTER

$141.99



1-633926

STUD-WHEEL

$5.03



1-850337

Exmark red touch up spray paint

$31.89



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69
