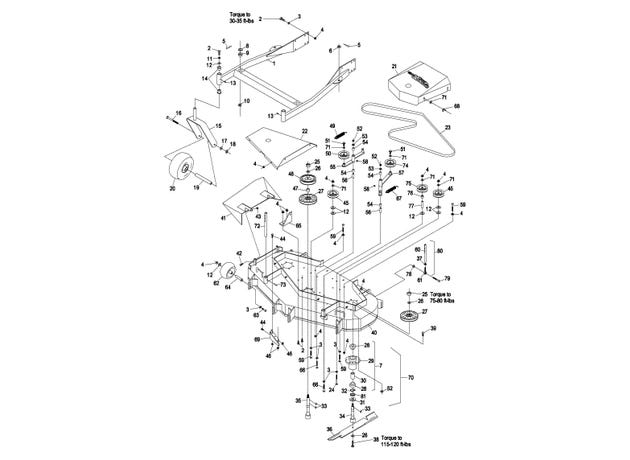

eXmark MN TT23KA 52" Mower Deck

1

1-604960

Support,deck 1-612092-01 w/bshgs and decals

product not available CALL FOR AVAILABILITY

$0.01

2

323-6

Screw-HH 3/8-16 x 1

$2.98

3

98-5975

Washer-Spring Disc 3/8

$3.71

4

3290-357

Nut-Whizlock 3/8-16

$1.11

5

806009

Hairpin, .177

product not available CALL FOR AVAILABILITY

$1.00

6

1-323539

SPACER

$2.72

7

1-634619

CUTTER HOUSING ASM

product not available CALL FOR AVAILABILITY

$0.01

8

1-413425

SPACER-DECK SUPPORT

$7.07

9

1-513336

BUSHING-DECK

$25.29

10

32120-33

RING-RETAINING

$8.15

11

3253-5

WASHER-LOCK

$0.44

12

1-373034

Washer

$3.83

13

302-52

FITTING-GREASE

$7.31

14

1-303514

BEARING-FLANGED

$13.19

15

1-522143-01

Fork, caster

product not available CALL FOR AVAILABILITY

$0.01

16

325-20

Screw-HH 1/2-13 x 6

$8.51

17

3253-7

WASHER-LOCK

$1.25

18

3217-9

NUT-HH

$0.74

19

1-513547

SPACER

$13.19

20

1-513648

WHEEL AND TIRE ASM

product not available CALL FOR AVAILABILITY

$0.01

21

1-614041

Cover w/decal

product not available CALL FOR AVAILABILITY

$0.01

22

1-602545-01

Cover, deck

product not available CALL FOR AVAILABILITY

$0.01

23

1-603576

Belt, blade drive

product not available CALL FOR AVAILABILITY

$0.01

24

323-16

SCREW-HH

$3.47

25

3219-6

Nut-Hex 5/8-18

$4.43

26

1-513208

Washer-Spring Disc 5/8

$9.95

27

1-553039

Sheave, blade drive

$133.51

28

1-513016

BEARING

$82.49

29

1-323532

HOUSING-SPINDLE

product not available CALL FOR AVAILABILITY

$0.01

30

1-323528

SPACER-BEARING

$9.59

31

1-633573

GUARD-BEARING, BOTTOM

$5.75

32

32120-8

RING-SNAP

$3.24

33

3257-32

KEY-WOODRUFF

$2.98

34

103-0958

Spindle, outer blade

$133.99

35

103-0959

Spindle, center blade

product not available CALL FOR AVAILABILITY

$0.01

36

1-633482

BLADE,18.0

product not available CALL FOR AVAILABILITY

$0.01

37

3219-3

Nut-Hex 3/8-24

$2.07

38

103-0862

Screw-Cap

$6.35

39

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

40

1-612155

Deck,1-612287-01 w/decals, rods and baffle

product not available CALL FOR AVAILABILITY

$0.01

41

1-602571-01

Chute, discharge

$169.99

42

322-5

Screw-HH 5/16-18 x 1

$0.74

43

3296-29

Nut-Nyloc 5/16-18

$2.72

44

322-2

Screw-HH 5/16-18 x 5/8

$2.98

45

1-303516

Pulley, V-Idler

$54.99

46

32128-20

Nut-Whizlock 5/16-18

$1.39

47

1-603504

Spacer, tube

$18.69

48

1-603581

Sheave, mower drive

$137.99

49

1-603413

SPRING-EXTENSION

$24.19

50

1-603497

Pulley, idler

$56.09

51

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

52

3296-39

Nut-Nyloc 3/8-16

$2.98

53

3256-4

Washer-3/8 Std

$1.94

54

1-513034

SLEEVE-BEARING

$8.15

55

1-602604

Idler arm assy w/bearings

$133.99

56

1-603384

BUSHING-PIVOT, IDLER

$14.29

57

1-602865

Idler arm, w/bearings deck drive

$127.99

58

302-40

Zerk-90° 1/4-28

$3.59

59

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

60

1-413525

Link, rear deck support

$45.09

61

1-613204

BALLJOINT

$32.99

62

1-603299

ROLLER-SCALP, ANTI

$23.09

63

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

64

1-603602

BUSHING,ROLLER

$24.19

65

1-603620-01

Bracket, spring anchor

$26.39

66

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

67

1-603414

SPRING-EXTENSION

$21.99

68

1-543678

NUT-WING

$13.19

69

1-602913-01

Baffle, Discharge

$47.29

70

1-554033

Housing, cutter complete (center)

$753.99

71

3256-24

Washer-3/8 SAE

$0.83

72

1-603001

Rod, deck support

$46.19

73

1-806332

Roll pin, 1/4 x 1-1/2

product not available CALL FOR AVAILABILITY

$0.01

74

1-613098

PULLEY-IDLER

$48.39

75

1-603805

PULLEY-IDLER

$56.09

76

1-513791

Bushing

$5.99

77

1-603494

Spacer

$10.79

78

1-603050

Spacer

$7.91

79

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

80

1-414521

Link Assy

product not available CALL FOR AVAILABILITY

$0.01

81

1-323533

SPACER-PULLEY/BEARING

$5.75



1-513810

BUSHING

$6.59



1-513809

BEARING

$36.29



1-513808

TIRE

$43.99



1-513807

1-513648

product not available CALL FOR AVAILABILITY

$0.01



1-613251

Blade, solid air foil

product not available CALL FOR AVAILABILITY

$0.01



1-633485

BLADE-LO LIFT 18.0 *

product not available CALL FOR AVAILABILITY

$0.01



1-633484

Blade, mulching

product not available CALL FOR AVAILABILITY

$0.01



1-602591-03

Arm, deck idler

product not available CALL FOR AVAILABILITY

$0.01



1-602867-03

Arm, deck drive idler

product not available CALL FOR AVAILABILITY

$1.00



1-554019

Housing, cutter complete (outer)

$477.99



1-850337

Exmark red touch up spray paint

$31.89



1-601806

Idler Pulley Kit

$97.99



MK523

Mulch kit

product not available CALL FOR AVAILABILITY

$1.00
