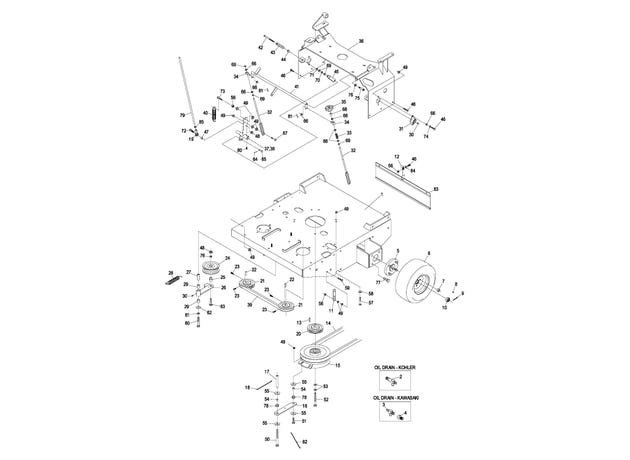

eXmark MN TT20KCC Engine Deck Group (Part 1)

1

103-3422

Eng Deck 103-2963-01 w/ decals

product not available CALL FOR AVAILABILITY

$1.00

2

103-1963

VALVE-DRAIN, OIL

$79.19

3

103-1965

Valve-Drain, Oil

$57.19

4

103-1966

ADAPTER-STR

$18.69

5

112-9049

WHEEL HUB ASM

$174.99

6

103-1715

Tire and wheel assy

$340.99

7

242-50

Nut-Lug 1/2-20

$2.11

8

1-807019

Key-Woodruff

$18.69

9

1-806800

Pin-Cotter 9/64 x 1 1/2

$2.98

10

32136-5

NUT-HEX, SLOTTED

$9.11

11

1-613089

TAB-SPRING, EXTENSION

$9.95

12

1-413510

Clip-Loom

$2.98

13

1-807259

KEY

$2.46

14

103-2240-SL

BELT,B 83.65 WITH SLEEVE

$61.59

15

103-0662

CLUTCH ASM

$468.99

16

1-633543-03

STRAP-CLUTCH, BRAKE

$15.39

17

1-323195-01

Spacer-Shield

$8.87

18

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

19

103-1167

JOINT-BALL END, .38x.38FE LH

$32.99

20

1-653035

PULLEY

$70.39

21

1-413010

SHEAVE ASM

$51.69

22

1-807272

Key-5mm x 5mm x 25mm

$6.35

23

1-803050

Setscrew-5/16-18 x 3/4

$2.98

24

132-4718

PULLEY-IDLER, FLAT

$34.09

25

1-603496

BUSHING-IDLER

$7.91

26

1-602521

Idler Arm ASM

$106.99

27

1-603044

BUSHING

$15.39

28

1-603402

SPRING-EXTENSION

$8.87

29

1-513034

SLEEVE-BEARING

$8.15

30

302-19

Zerk-1/4-28 Str

$2.85

31

1-633102

Bearing-Flanged

$18.69

32

1-613206

Rod, control arm

$18.69

33

1-323245

Spring-Compression

$7.07

34

126-8571

SWIVEL-ADJUSTABLE, SHORT

$5.75

35

1-413151

KNOB-TRACKING

$9.59

36

103-4673-01

Support, Tank/Handle

product not available CALL FOR AVAILABILITY

$0.01

37

103-1561-01

Arm, control LH

$80.29

38

103-2344

Arm, control RH - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

39

109-2584-SL

BELT,COG A-59.5 WITH SLEEVE

$38.49

40

1-603693

SPRING-EXTENSION

$15.39

41

103-2234-01

Crank weldmt

$137.99

42

1-603737

Bolt-Neutral Return

$9.59

43

103-0265

Spring, neutral return

$6.47

44

1-603735

BUSHING-FLANGED

$7.07

45

1-303105

Yoke-Adjustable

$13.19

46

322-3

Screw-HH 5/16-18 x 3/4

$1.11

47

103-2421

Tube, pump link spacer

$7.55

48

3290-357

Nut-Whizlock 3/8-16

$1.11

49

32128-20

Nut-Whizlock 5/16-18

$1.39

50

322-38

SCREW-HH

$7.31

52

3212-10

Screw-HH 7/16-20 x 2 1/2

$7.07

53

1-603610

Washer-Spring Disc 7/16

$5.75

54

1-633545

SPACER

$3.11

55

1-613235

WASHER

$1.94

56

3296-29

Nut-Nyloc 5/16-18

$2.72

57

322-7

SCREW-HH

$1.25

58

1-303334

Washer-Spring Disc 5/16

$2.98

59

1-800016

BOLT-TAP, HH

$1.68

60

323-12

Screw-HH 3/8-16 x 2 1/2

$2.98

61

3253-5

WASHER-LOCK

$0.44

62

1-373034

Washer

$3.83

63

3231-29

SCREW-CARR

$8.39

64

1-806003

PIN-COTTER

$1.81

65

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

66

3256-23

Washer-5/16 SAE

$2.59

67

1-403180

Screw-HH 5/16-18 x 1 1/4 Sp

$2.98

68

1-603903

SPACER

$5.99

69

3219-2

Nut-Hex 5/16-24

$1.11

70

3220-2

Nut-Jam 5/16-24

$1.68

71

3256-2

Washer-1/4 Std

$0.59

72

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

73

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

74

1-805005

Washer-Lock 5/16 Heavy

$1.55

75

1-809056

SCREW-HSH SHLDR

$8.51

76

3256-24

Washer-3/8 SAE

$0.83

77

3234-12

SCREW-HHF

$1.94

78

1-633630

Grommet

$6.23

79

103-1576

Rod, drive lever

$19.79

80

1-803022

Setscrew-5/16-18 x 5/8

$2.98

81

3272-5

Pin-Cotter 3/32 x 1/2

$1.81

82

3290-378

Tie-Cable

$1.11

83

103-2224

Shield, drag

$62.69

84

3256-3

Washer-5/16 Std

$0.74

85

3220-16

Nut-Jam 3/8-24 LH

$2.33



1-603306-SL

BELT,DECK DRIVE WITH SLEEVE

$60.49



103-2238

Wheel only

$97.99



103-2237

Tire only 18 x 8.50

$188.99



1-633926

STUD-WHEEL

$5.03



3212-12

Screw-HH 7/16-20 x 3

$3.47



1-850337

Exmark red touch up spray paint

$31.89
