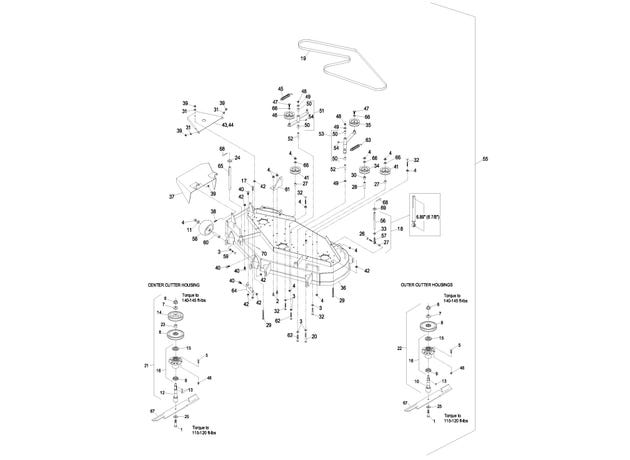

eXmark MN TT20KCC Deck Group FMD604 60"

1

103-0862

Screw-Cap

$6.35

2

323-6

Screw-HH 3/8-16 x 1

$2.98

3

98-5975

Washer-Spring Disc 3/8

$3.71

4

3290-357

Nut-Whizlock 3/8-16

$1.11

5

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

6

3217-46

Nut-Hex 3/4-16 Heavy

$13.19

7

103-2802

Washer-Spring Disc 3/4

$5.75

8

103-2794

Sheave, Blade Drive

$71.49

9

103-2535

Spacer-Guard Bottom

$13.19

10

103-2785

Spindle

$111.99

11

1-373034

Washer

$3.83

12

103-2786

Spindle, Center Blade (Long)

$157.99

13

103-2982

Key-Machine 1/4 x 3/16 x 3/4

$3.24

14

103-2791

Sheave, Mower Drive

$73.69

15

103-1330

Guard-Bearing Top

$5.75

16

103-8280

Kit, Cutter Housing

$247.99

17

322-3

Screw-HH 5/16-18 x 3/4

$1.11

18

1-411532

KIT,SUPPORT LINK W/PIN

$135.99

19

1-633173-SL

BELT,MULE DRIVE WITH SLEEVE

$99.99

20

323-23

SCREW-HH

$6.11

21

103-8076

Housing, Cutter Complete (Center)

$667.99

22

103-8075

Cutter Housing Complete

$498.99

23

103-3209

Spacer, Tube

$8.99

24

1-413425

SPACER-DECK SUPPORT

$7.07

25

103-0865

Washer-Blade Bolt, Heavy

$6.35

26

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

27

1-603050

Spacer

$7.91

28

1-633988

SPACER-ANCHOR, CLUTCH

$12.09

29

1-800017

Bolt, Tap 5/16-18 x 3 1/4

$7.55

30

1-513791

Bushing

$5.99

31

3256-3

Washer-5/16 Std

$0.74

32

323-12

Screw-HH 3/8-16 x 2 1/2

$2.98

33

3219-3

Nut-Hex 3/8-24

$2.07

34

1-603805

PULLEY-IDLER

$56.09

35

1-613098

PULLEY-IDLER

$48.39

36

103-8388

Deck, 103-7316-01 W/ Decals

$3,540.99

37

103-2349-01

Chute, Discharge

$148.99

38

322-5

Screw-HH 5/16-18 x 1

$0.74

39

3296-29

Nut-Nyloc 5/16-18

$2.72

40

322-2

Screw-HH 5/16-18 x 5/8

$2.98

41

1-303516

Pulley, V-Idler

$54.99

42

32128-20

Nut-Whizlock 5/16-18

$1.39

43

103-2967-01

Shield, Belt RH

$69.29

44

103-2968-01

Shield, Belt LH

$69.29

45

1-603413

SPRING-EXTENSION

$24.19

46

1-603497

Pulley, idler

$56.09

47

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

48

3296-39

Nut-Nyloc 3/8-16

$2.98

49

3256-4

Washer-3/8 Std

$1.94

50

1-513034

SLEEVE-BEARING

$8.15

51

1-602604

Idler arm assy w/bearings

$133.99

52

1-603384

BUSHING-PIVOT, IDLER

$14.29

53

1-602865

Idler arm, w/bearings deck drive

$127.99

54

302-40

Zerk-90° 1/4-28

$3.59

55

103-2279

Complete deck assembly

product not available CALL FOR AVAILABILITY

$1.00

56

1-413525

Link, rear deck support

$45.09

57

1-613204

BALLJOINT

$32.99

58

1-603299

ROLLER-SCALP, ANTI

$23.09

59

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

60

1-603602

BUSHING,ROLLER

$24.19

61

1-603620-01

Bracket, spring anchor

$26.39

62

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

63

1-603414

SPRING-EXTENSION

$21.99

64

1-602913-01

Baffle, Discharge

$47.29

65

1-603001

Rod, deck support

$46.19

66

3256-24

Washer-3/8 SAE

$0.83

67

103-2530-S

SPK, BLADE NOTCHED 20.50

$35.19

68

1-806009

Hairpin, .177

$3.24

69

1-323539

SPACER

$2.72

70

32121-15

PIN-ROLL

$1.81



103-1580-S

SPK, BLADE SOLID 20.5

$37.39



103-2510-S

SPK, BLADE LOW LIFT 20.5

$39.59



103-0301-S

SPK, BLADE MULCHING 20.5

$35.19



1-850337

Exmark red touch up spray paint

$31.89
