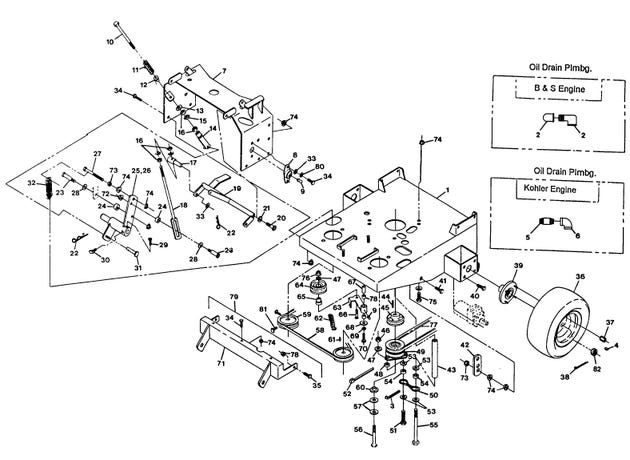

eXmark MN TTH-18KC Engine Deck Group

1

1-602944

Engine Deck Weldment

product not available CALL FOR AVAILABILITY

$0.00

2

1-303431

FITTING-90 DEG

$32.99

3

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

4

1-807019

Key-Woodruff

$18.69

5

1-543064

NIPPLE,PIPE

product not available CALL FOR AVAILABILITY

$0.01

6

1-303428

ELBOW-90 DEG

$13.19

7

1-612165-01

Support, tank/handle

product not available CALL FOR AVAILABILITY

$0.01

8

1-543514

Flange mntg (side)

$34.09

9

302-19

Zerk-1/4-28 Str

$2.85

10

1-603737

Bolt-Neutral Return

$9.59

11

1-603807

Spring

$3.83

12

1-603735

BUSHING-FLANGED

$7.07

13

3256-2

Washer-1/4 Std

$0.59

14

1-303105

Yoke-Adjustable

$13.19

15

3220-2

Nut-Jam 5/16-24

$1.68

16

3219-2

Nut-Hex 5/16-24

$1.11

17

126-8571

SWIVEL-ADJUSTABLE, SHORT

$5.75

18

1-613206

Rod, control arm

$18.69

19

1-602695-01

Crank Weldment - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

20

1-809056

SCREW-HSH SHLDR

$8.51

21

3256-24

Washer-3/8 SAE

$0.83

22

1-806003

PIN-COTTER

$1.81

23

1-809057

SCREW-HSH

product not available CALL FOR AVAILABILITY

$0.01

24

1-603903

SPACER

$5.99

25

1-602671-01

Arm Weldment - Control RH - DISCONTINUED

$123.99

26

1-602673-01

WLD,LH CONTROL ARM

$115.99

27

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

29

1-809058

No.10-24 x 3/4 Hex Sckt Hd Capscrew - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

30

1-803022

Setscrew-5/16-18 x 5/8

$2.98

31

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

32

1-603693

SPRING-EXTENSION

$15.39

33

3256-23

Washer-5/16 SAE

$2.59

34

322-3

Screw-HH 5/16-18 x 3/4

$1.11

35

323-6

Screw-HH 3/8-16 x 1

$2.98

36

1-413473

Wheel And Tire ASM

$189.99

37

242-50

Nut-Lug 1/2-20

$2.11

38

1-806800

Pin-Cotter 9/64 x 1 1/2

$2.98

39

112-9049

WHEEL HUB ASM

$174.99

40

3234-12

SCREW-HHF

$1.94

41

1-800016

BOLT-TAP, HH

$1.68

42

1-603801

Anchor-Spring

$21.99

43

1-603469-01

Standoff - Clutch - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

44

1-807010

3/4 x 1/4 No.91 Woodruff Key (20 HP Kohler) - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

45

1-603589

Sheave, 4 1/4 O.D. - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

47

3256-3

Washer-5/16 Std

$0.74

48

1-323093

Spacer

product not available CALL FOR AVAILABILITY

$0.01

49

1-611223

Clutch w/strap assembled

$592.99

50

1-602974

Cable assy

product not available CALL FOR AVAILABILITY

$0.01

52

3290-378

Tie-Cable

$1.11

53

1-213069

WASHER

$2.98

54

1-543007

Spacer

$8.99

55

1-800287

5/16-18 HH Cap. 6.5 - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

56

3212-12

Screw-HH 7/16-20 x 3

$3.47

57

1-603610

Washer-Spring Disc 7/16

$5.75

58

1-603809

BELT-HYDRO TRANS DR

$39.59

59

1-603778

Sheave - pump

$84.99

60

1-603609

Bushing, clutch keeper

$30.79

61

1-807272

Key-5mm x 5mm x 25mm

$6.35

62

1-603402

SPRING-EXTENSION

$8.87

63

1-602521

Idler Arm ASM

$106.99

64

132-4718

PULLEY-IDLER, FLAT

$34.09

65

1-603496

BUSHING-IDLER

$7.91

66

3231-29

SCREW-CARR

$8.39

67

1-603044

BUSHING

$15.39

68

1-373034

Washer

$3.83

69

3253-5

WASHER-LOCK

$0.44

70

323-12

Screw-HH 3/8-16 x 2 1/2

$2.98

71

1-602438-01

Hitch weldmt

product not available CALL FOR AVAILABILITY

$0.01

72

32128-33

Nut-Whizlock 1/4-20

$0.97

73

3296-29

Nut-Nyloc 5/16-18

$2.72

74

32128-20

Nut-Whizlock 5/16-18

$1.39

75

322-7

SCREW-HH

$1.25

76

3290-357

Nut-Whizlock 3/8-16

$1.11

77

1-611022

Kit, Belt/Shield

product not available CALL FOR AVAILABILITY

$0.00

78

1-513034

SLEEVE-BEARING

$8.15

79

1-601000

Hitch Kit, sulky

product not available CALL FOR AVAILABILITY

$1.00

80

1-805005

Washer-Lock 5/16 Heavy

$1.55

81

1-803050

Setscrew-5/16-18 x 3/4

$2.98

82

1-809068

3/4-16 - 2B Slotted Hex Nut

product not available CALL FOR AVAILABILITY

$0.01



1-603306-SL

BELT,DECK DRIVE WITH SLEEVE

$60.49



1-611023

Kit, Belt/Shield

product not available CALL FOR AVAILABILITY

$0.00
