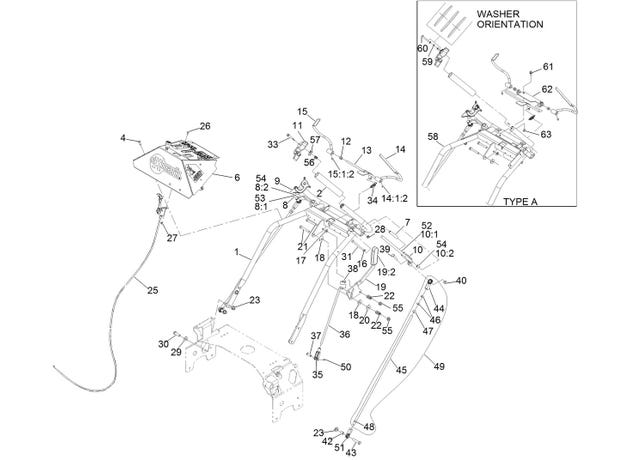

eXmark MN TTS680PKC483E0 Handle Assembly

1

126-2642-03

WELD, HANDLE

$410.99

2

103-0815

GRIP-BAR, HANDLE

$12.09

4

32144-10

Screw-HWH 1/4-20 x .62

$5.15

6

126-4705

ASM, CONSOLE W/ DECALS

$138.99

7

103-0027

BUSHING-LEVER, DRIVE

$20.89

8

103-2513

Asm, Drive Lever RH

$118.99

9

103-1371

Thumb latch asm RH

$30.79

10

103-2514

Asm, Drive Lever LH

$118.99

11

103-1372

Thumb latch asm LH

$30.79

12

1-303365

BUSHING-NYLON

$5.75

13

103-0769-03

Rod weldment, OPC

$43.99

14

116-4079

WLD,LH OPC LEVER

$35.19

15

116-4080

WLD,RH OPC LEVER

$35.19

15:1:2

1-803322

SCREW-SET

$1.55

16

3256-22

Washer-1/4 SAE

$0.59

17

3256-23

Washer-5/16 SAE

$2.59

18

1-323244

Washer-Friction

$8.03

19

126-0148

LEVER, SHIFT W/GRIP

$52.79

19:2

103-5994

GRIP-HANDLE, STEERING

$14.29

20

1-603716

Washer-Friction

$5.75

21

120-9738

SCREW-HH

$1.81

22

1-323245

Spring-Compression

$7.07

23

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

25

109-3958

CONTROL-THROTTLE

$41.79

26

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

27

3296-2

Nut-Nyloc #10-24

$2.46

28

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

29

98-5975

Washer-Spring Disc 3/8

$3.71

30

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

31

321-14

SCREW-HH

$5.39

33

126-2931

SCREW-SHOULDER

$3.24

34

1-303363

SPRING-EXTENSION

$7.07

35

1-303105

Yoke-Adjustable

$13.19

36

1-413225

Rod, speed control

$15.39

37

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

38

1-806003

PIN-COTTER

$1.81

39

322-9

Screw-HH 5/16-18 x 1 3/4

$3.71

40

3296-29

Nut-Nyloc 5/16-18

$2.72

42

103-1166

SPACER-TUBE, PUMP LINK

$7.19

43

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

44

103-2463

JOINT-BALL, END

$28.59

45

103-1148

Rod,drive lever

$19.79

46

3220-3

Nut-Jam 3/8-24

$0.44

47

3219-3

Nut-Hex 3/8-24

$2.07

48

3220-16

Nut-Jam 3/8-24 LH

$2.33

49

116-3414

DRIVE LINK ASM

$35.19

50

3272-5

Pin-Cotter 3/32 x 1/2

$1.81

51

103-1167

JOINT-BALL END, .38x.38FE LH

$32.99

52

116-4081

WLD,LH DRIVE LEVER

$52.79

53

116-4082

WLD,RH DRIVE LEVER

$52.79

54

1-413152

BUSHING-SLEEVE

$2.98

55

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

56

1-633349

Spring-Compression

$5.75

57

126-2921

LATCH, ECS

$12.09

58

126-0142-03

WLD,TTH ECS HANDLE

$410.99

59

1-303435

Washer-Spring Disc 1/4

$1.81

60

103-0235

SCREW-HH

$1.55

61

126-1592

SCREW-HHF

$1.55

62

103-0489-03

Bracket, opc axle

$24.19

63

32128-33

Nut-Whizlock 1/4-20

$0.97
