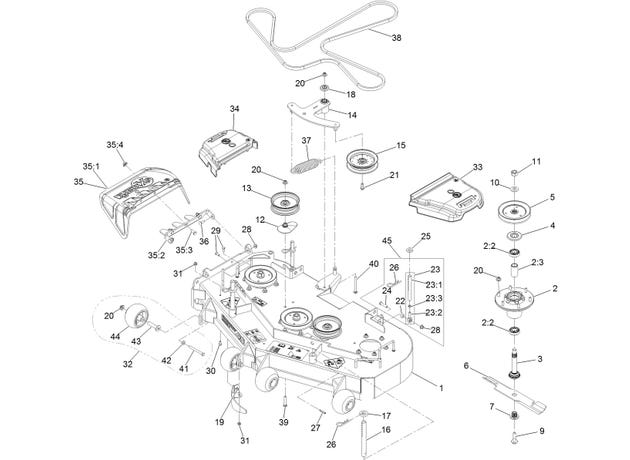

Deck Assembly

#
Part #
Item
Price
Qty
Add
1
126-0781
ASM, DECK 48" W/DECALS
$2,104.99
2
116-3344
ASM-CUTTER HSG WITH BEARINGS
$138.99
2:2
116-0720
BEARING-BALL
$21.99
2:3
116-3312
SPACER-BEARING
$9.59
3
116-3342
ASM-SPINDLE AND SEAL
$81.39
4
116-1286
GUARD,BEARING TOP .989
$5.63
5
116-0674
SHEAVE,BLADE DRIVE 5.90
$74.79
6
116-5177-S
SPK,BLADE-EXTREME 2, 16.25"
$30.79
6
103-6401-S
SPK, BLADE NOTCHED 16.25 (.94 HOLE)
$29.69
6
103-6391-S
SPK, BLADE MULCH 16.25 (.94 HOLE)
$30.79
6
103-6386-S
SPK, BLADE LOW LIFT 16.25 (.94 HOLE)
$29.69
6
103-6381-S
SPK, BLADE SOLID 16.25 (.94 HOLE)
$32.99
7
103-3037
BUSHING,SPLINED
$21.99
9
109-9220
Screw-SEMS 1/2-20 x 2.19
$8.63
10
103-2802
Washer-Spring Disc 3/4
$5.39
11
116-7306
NUT-HEX
$3.24
12
109-2872
SPACER-PULLEY
$21.99
13
116-4669
IDLER-PULLEY, FLAT
$76.44
14
126-2314
ASM, DECK IDLER
$163.99
15
126-9196
IDLER-PULLEY, FLAT
$58.84
16
1-603001
Rod, deck support
$43.99
17
1-413425
SPACER-DECK SUPPORT
$6.71
18
103-2916
Guard-Top
$2.85
19
126-2782-01
BAFFLE, DOGLEG
$43.99
21
126-1680
SCREW-HHF
$1.81
22
1-603050
Spacer
$7.43
23:1
1-413525
Link, rear deck support
$42.89
23:2
1-613204
BALLJOINT
$30.79
23:3
3220-3
Nut-Jam 3/8-24
$0.44
24
323-9
Screw-HH 3/8-16 x 1 3/4
$1.55
25
1-323539
SPACER
$2.59
26
1-806009
Hairpin, .177
$3.11
27
32121-15
PIN-ROLL
$1.68
28
104-8301
Nut-Nyloc 3/8-16 Flg
$1.42
29
322-3
Screw-HH 5/16-18 x 3/4
$1.11
30
322-2
Screw-HH 5/16-18 x 5/8
$2.85
31
104-8300
Nut-Nyloc 5/16-18 Flg
$1.25
32
116-9981
KIT, ANTI-SCALP ROLLER
$50.59
33
109-6936
COVER-BELT, LH
$37.39
34
109-6935
COVER-BELT, RH
$37.39
35
126-0959
ASM, DISCHARGE CHUTE
$89.99
35:1
109-2738
CHUTE,DISCHARGE
$71.49
35:2
126-0958-01
BRACKET, DISCHARGE CHUTE
$40.69
35:4
109-6658
Nut-Nyloc 3/8-16 Flg
$1.42
36
3231-22
Bolt-Carriage 3/8-16 x 1
$3.47
37
116-6317
SPRING-EXTENSION
$27.49
38
126-0783-SL
BELT, DECK WITH SLEEVE
$102.99
39
3231-40
Bolt-Carriage 3/8-16 x 2 1/4
$2.85
40
3231-24
Bolt-Carriage 3/8-16 x 3 3/4
$14.29
41
116-9362
Screw-HH 3/8-16 x 3 3/4 GR 8
$2.98
42
98-5975
Washer-Spring Disc 3/8
$3.47
43
116-8131
AXLE, ROLLER
$12.09
44
103-8415
ROLLER-ANTI-SCALP
$23.09
45
1-411532
KIT,SUPPORT LINK W/PIN
$127.99
