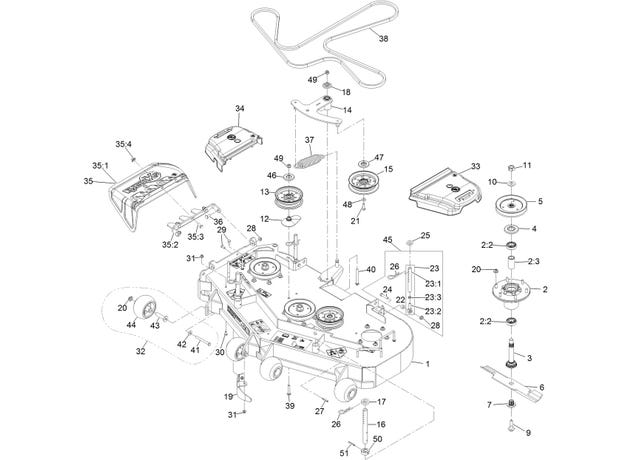

eXmark MN TTS680PKC483E0 Deck Assembly

1

126-0781

ASM, DECK 48" W/DECALS

$2,230.99

2

116-3344

ASM-CUTTER HSG WITH BEARINGS

$146.99

2:2

116-0720

BEARING-BALL

$23.09

2:3

116-3312

SPACER-BEARING

$9.59

3

116-3342

ASM-SPINDLE AND SEAL

$77.99

4

116-1286

GUARD,BEARING TOP .989

$5.99

5

116-0674

SHEAVE,BLADE DRIVE 5.90

$79.19

6

116-5177-S

SPK,BLADE-EXTREME 2, 16.25"

$32.99

6

103-6401-S

SPK, BLADE NOTCHED 16.25 (.94 HOLE)

$31.89

6

103-6391-S

SPK, BLADE MULCH 16.25 (.94 HOLE)

$32.99

6

103-6386-S

SPK, BLADE LOW LIFT 16.25 (.94 HOLE)

$31.89

6

103-6381-S

SPK, BLADE SOLID 16.25 (.94 HOLE)

$35.19

7

103-3037

BUSHING,SPLINED

$23.09

9

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

10

103-2802

Washer-Spring Disc 3/4

$5.75

11

116-7306

NUT-HEX

$3.11

12

109-2872

SPACER-PULLEY

$23.09

13

126-9197

IDLER-PULLEY, FLAT 5.00X1.31

$63.79

14

126-2314

ASM, DECK IDLER

$173.99

15

126-9196

IDLER-PULLEY, FLAT

$62.69

16

135-7043

ROD, DECK SUPPORT TTS

$38.49

17

1-413425

SPACER-DECK SUPPORT

$7.07

18

103-2916

Guard-Top

$2.98

19

126-2782-01

BAFFLE, DOGLEG

$46.19

21

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

22

1-603050

Spacer

$7.91

23:1

1-413525

Link, rear deck support

$45.09

23:2

1-613204

BALLJOINT

$32.99

23:3

3220-3

Nut-Jam 3/8-24

$0.44

24

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

25

1-323539

SPACER

$2.72

26

1-806009

Hairpin, .177

$3.24

27

32121-15

PIN-ROLL

$1.81

28

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

29

322-3

Screw-HH 5/16-18 x 3/4

$1.11

30

322-2

Screw-HH 5/16-18 x 5/8

$2.98

31

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

32

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

33

109-6936

COVER-BELT, LH

$39.59

34

109-6935

COVER-BELT, RH

$39.59

35

126-0959

ASM, DISCHARGE CHUTE

$94.99

35:1

109-2738

CHUTE,DISCHARGE

$75.89

35:2

126-0958-01

BRACKET, DISCHARGE CHUTE

$42.89

35:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

36

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

37

116-6317

SPRING-EXTENSION

$28.59

38

126-0783-SL

BELT, DECK WITH SLEEVE

$108.99

39

3231-40

Bolt-Carriage 3/8-16 x 2 1/4

$2.98

40

3231-24

Bolt-Carriage 3/8-16 x 3 3/4

$15.39

41

116-9362

Screw-HH 3/8-16 x 3 3/4 GR 8

$3.11

42

98-5975

Washer-Spring Disc 3/8

$3.71

43

116-8131

AXLE, ROLLER

$13.19

44

103-8415

ROLLER-ANTI-SCALP

$24.19

45

1-411532

KIT,SUPPORT LINK W/PIN

$135.99

46

126-8043

SHIELD-DUST

$2.98

47

126-9195

SHIELD-GUARD, DUST

$3.11

48

43-0940

SPACER

$5.87

49

32128-19

Nut-Hex 3/8-16 Side Lock

$1.81

50

135-4828

COLLAR, DECK HEIGHT PIN

$18.69

51

32121-32

PIN-ROLL

$1.68
