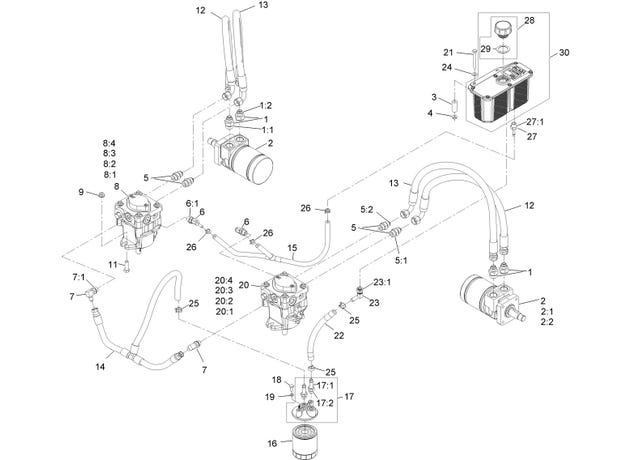

eXmark MN TTS20PKAE483 Hydraulic Assembly

1

1-603991

Adapter-Straight

$21.99

1:1

1-603919

O-Ring-SAE #10

$3.83

2

1-603718

HYD MOTOR ASM

$1,059.99

2:1

1-000138

BEARING AND SEAL KIT

$285.99

2:2

1-000119

SEAL KIT

$176.99

3

103-2191

Spacer

$8.51

4

32128-33

Nut-Whizlock 1/4-20

$0.97

5

1-603990

Adapter-Straight

$18.69

5:1

1-603920

O-Ring-SAE #8

$3.95

5:2

1-603992

O-Ring-37 Flare #8

$2.98

6

103-1799

ELBOW-90 DEG

$30.79

7

103-1802

FITTING-ELBOW, 90 DEG

$24.19

8

116-0942

LH HYD PUMP ASM

$1,023.99

9

32128-43

Nut-Whizlock 3/8-16

$1.68

11

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

12

119-7827

HYD HOSE ASM

$80.29

13

1-323241

HOSE-PRESSURE, HIGH

$75.99

14

116-2123

CHARGE HOSE ASM

$61.59

15

116-0918

CASE DRAIN HOSE ASM

$38.49

16

1-523541

ELEMENT-FILTER, WINTER

$50.59

16

109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$50.59

17

103-2889

Filter Head ASM

$99.99

17:1

103-1912

Adapter-Straight

$23.09

18

321-3

Screw-HH 1/4-20 x 5/8

$1.55

19

1-805004

Washer-Lock 1/4 Heavy

$1.55

20

116-0943

RH HYD PUMP ASM

$1,023.99

20:1

103-2664

INPUT SHAFT KIT

$211.99

20:2

94-6922

BEARING-THRUST

$63.79

20:3

103-2666

CYLINDER BLOCK KIT

$459.99

20:4

105-6184

SEAL OVERHAUL KIT

$81.39

21

321-15

SCREW-HH

$1.68

22

103-2959

Hose-Charge

$9.35

23

103-1807

FITTING-BARBED, 45 DEG

$28.59

24

3256-22

Washer-1/4 SAE

$0.59

25

103-1988

Clamp-Hose 11/16

$1.55

26

103-1716

Clamp-Hose 17/32

$1.55

27

103-1801

Adapter-Straight

$31.89

27:1

237-42

O-RING

$3.24

28

103-7615

Asm, Cap W/Gasket

$30.79

29

142-2792

O-RING

$1.68

30

103-1947

HYD Reservoir ASM

$221.99
