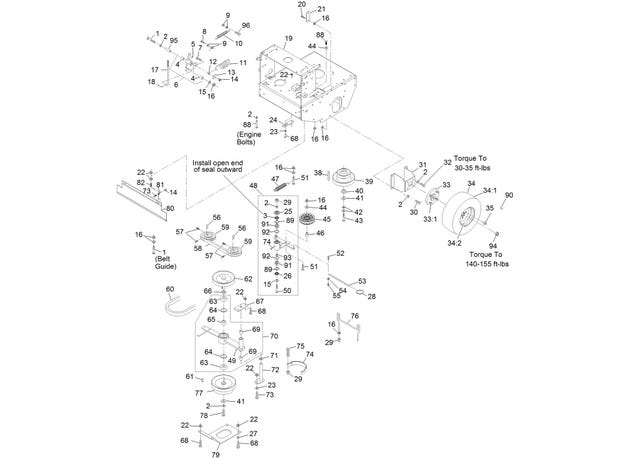

eXmark MN TTS541KA523 Engine Deck Assembly

1

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

2

98-5975

Washer-Spring Disc 3/8

$3.71

3

103-3506

Seal-Single Lip

$5.75

4

1-513034

SLEEVE-BEARING

$8.15

5

302-19

Zerk-1/4-28 Str

$2.85

6

1-414143

Link Pivot w/Bearing

$117.99

7

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

8

321-6

Screw-HH 1/4-20 x 1

$0.74

9

32128-33

Nut-Whizlock 1/4-20

$0.97

10

1-523498

Spring, Motion Control

$11.99

11

103-7398

Spring, Belt Tension

$19.79

12

1-543007

Spacer

$8.99

13

1-213069

WASHER

$2.98

14

3296-29

Nut-Nyloc 5/16-18

$2.72

15

3256-4

Washer-3/8 Std

$1.94

16

3290-357

Nut-Whizlock 3/8-16

$1.11

17

1-413282

Linkage, Lower

$19.79

18

1-806003

PIN-COTTER

$1.81

19

116-6129

Asm, Deck (116-6080-01) W/Decals

$1,049.39

20

323-4

Screw-HH 3/8-16 x 3/4

$4.31

21

1-633068

ARM-LIFT, DECK

$12.09

22

32128-20

Nut-Whizlock 5/16-18

$1.39

23

1-303334

Washer-Spring Disc 5/16

$2.98

24

1-322110

GUIDE-BELT

$13.19

25

103-2916

Guard-Top

$2.98

26

103-3505

SEAL-LIP, DOUBLE

$5.75

27

3256-3

Washer-5/16 Std

$0.74

28

1-323366

Ring-Split

$7.07

29

3296-39

Nut-Nyloc 3/8-16

$2.98

31

1-412082-01

Mount-Wheel Motor

$118.99

32

323-6

Screw-HH 3/8-16 x 1

$2.98

33

112-9049

WHEEL HUB ASM

$174.99

33:1

1-633926

STUD-WHEEL

$5.03

34

1-613263

WHEEL AND TIRE ASM

$173.99

34:1

1-613264

TIRE-TURFMASTER

$141.99

34:2

107-2475

WHEEL

$74.79

35

242-50

Nut-Lug 1/2-20

$2.11

38

1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.75

39

103-6309

Asm, Drive Sheave

$211.99

40

1-603609

Bushing, clutch keeper

$30.79

41

1-373034

Washer

$3.83

42

1-603610

Washer-Spring Disc 7/16

$5.75

43

3212-10

Screw-HH 7/16-20 x 2 1/2

$7.07

44

3256-24

Washer-3/8 SAE

$0.83

45

109-4077

PULLEY-IDLER, FLAT

$21.99

46

1-603496

BUSHING-IDLER

$7.91

47

116-6316

SPRING-EXTENSION

$23.09

48

109-1296

Kit, Idler Arm (109-1208-03) W/Brgs

$195.99

49

1481

FITTING-GREASE

$7.07

50

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

51

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

52

1-809069

SCREW-HSH

$3.23

53

1-323365

Chain-Link, Twist

$17.59

54

3256-14

WASHER-FLAT

$0.59

55

3296-2

Nut-Nyloc #10-24

$2.46

56

1-807272

Key-5mm x 5mm x 25mm

$6.35

57

120-6474

SCREW-SET, SQH 5/16-18 X 3/4

$2.98

58

109-1057-SL

BELT,COG A 50.55 WITH SLEEVE

$38.49

59

1-413010

SHEAVE ASM

$51.69

60

103-6317-SL

BELT,B-38.0 WITH SLEEVE

$38.49

61

1-807259

KEY

$2.46

62

103-6308

Sheave W/Shaft

$145.99

63

1-413111

Bearing, Clutch Shaft

$43.99

64

32120-8

RING-SNAP

$3.24

65

1-413012

Spacer, Bearing Clutch

$7.55

66

1-523157

Washer

$1.81

67

1-413049-01

Plate, Clutch Pivot

$41.79

68

322-5

Screw-HH 5/16-18 x 1

$0.74

69

1-413207

Pivot, Bearing

$14.29

70

1-414418

Clutch Arm w/Bearings

$364.99

71

1-413235

Washer, Spacer

$2.98

72

1-412138-03

Pivot Pin weldment

$40.69

73

322-3

Screw-HH 5/16-18 x 3/4

$1.11

74

1-413062

Band, Brake Clutch

$57.19

75

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

76

103-6310

Wld, Belt Guide

$35.19

77

1-412031

Sheave, w/drum (36")

$143.99

78

1-800521

Screw, Hex Cap 3/8-24 x 1 G8

$1.55

79

1-413009-01

Plate, Guard

$62.69

80

103-2056

Shield-Drag

$64.89

81

1-413510

Clip-Loom

$2.98

82

1-413511

Hanger, Drag Shield

$9.11

88

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

89

32120-10

Ring-Retaining

$1.68

90

1-807019

Key-Woodruff

$18.69

91

103-3504

Bearing-Spherical

$24.19

92

106-7159

O-Ring

$1.25

93

103-5677

Spacer

$2.98

94

116-2839

NUT-LOCK

$12.09

95

1-603044

BUSHING

$15.39

96

321-8

Screw-HH 1/4-20 x 1 1/4

$4.43
