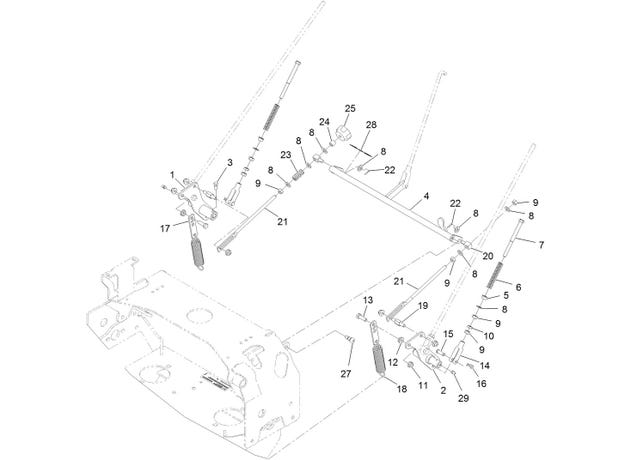

eXmark MN TTS600GKA523E0 Controls Assembly

1

116-9975

WELD, MOTION CONTROL, RT

$70.39

2

116-9974

WELD, MOTION CONTROL, LT

$70.39

3

1-803022

Setscrew-5/16-18 x 5/8

$2.98

4

126-2982-01

WELD, SPEED CONTROL

$78.99

5

1-603735

BUSHING-FLANGED

$7.07

6

103-0265

Spring, neutral return

$6.47

7

1-603737

Bolt-Neutral Return

$9.59

8

3256-23

Washer-5/16 SAE

$2.59

9

3219-2

Nut-Hex 5/16-24

$1.11

10

3220-2

Nut-Jam 5/16-24

$1.68

11

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

12

32128-20

Nut-Whizlock 5/16-18

$1.39

13

322-5

Screw-HH 5/16-18 x 1

$0.74

14

1-303105

Yoke-Adjustable

$13.19

15

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

16

1-806003

PIN-COTTER

$1.81

17

1-613089

TAB-SPRING, EXTENSION

$9.95

18

1-603693

SPRING-EXTENSION

$15.39

19

126-0610

PIN, MOTION CONTROL

$7.07

20

126-8571

SWIVEL-ADJUSTABLE, SHORT

$5.75

21

1-413350

LINK-CONTROL, SPEED

$15.39

22

3272-5

Pin-Cotter 3/32 x 1/2

$1.81

23

1-323245

Spring-Compression

$7.07

24

1-603903

SPACER

$5.99

25

103-3060

KNOB-TRACKING

$7.55

27

1-809056

SCREW-HSH SHLDR

$8.51

28

116-7918

DECAL-TRACKING ADJUSTMENT

$24.19

29

302-19

Zerk-1/4-28 Str

$2.85
