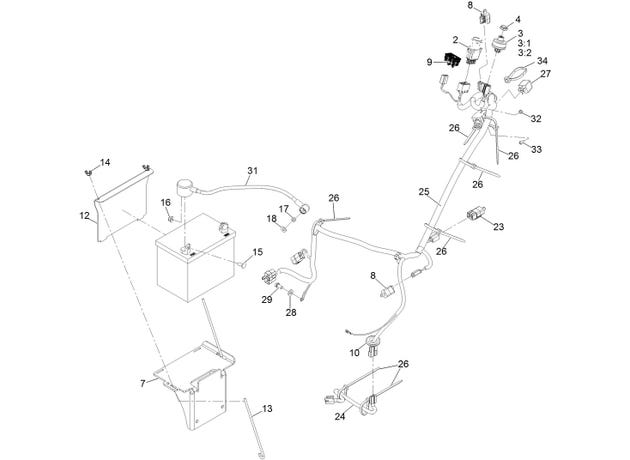

eXmark MN TTS600GKA523E0 Electrical Assembly

2

103-5221

Switch-PTO

$59.39

3

109-4736

Asm, Switch W/Nut

$42.89

3:1

3254-5

WASHER-LOCK

$1.55

3:2

218-461

NUT-HH

$4.19

4

103-0498

Nut-Ignition

$3.59

7

126-1470-03

WELD, BATTERY MOUNT

$78.99

8

110-6765

SWITCH

$14.29

9

126-3931

METER-HOUR

$69.29

10

1-543286

GROMMET

$13.19

12

126-0069-03

BRACKET, BATTERY HOLD DOWN

$35.19

13

1-633651

BOLT-HOLDDOWN

$8.75

14

1-543792

Wingnut-Nyloc 1/4-20

$7.07

15

3230-1

Bolt-Carriage 5/16-18 x 3/4

$1.94

16

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

17

3217-5

Nut-Hex 1/4-20

$0.83

18

3256-22

Washer-1/4 SAE

$0.59

23

126-1904

SWITCH, 2 POLE

$12.09

24

126-0624

Harness-Clutch Pigtail

$14.29

25

126-0626

HARNESS-MAIN

$249.99

26

3290-378

Tie-Cable

$1.11

27

1-643275

Relay-12VDC 40 Amp

$24.19

28

33094-00

Washer

$0.14

29

33114-016

Screw-HH M8-1.25 x 16mm

$0.74

30

1-413540

CABLE-BATTERY, NEGATIVE

$14.29

31

109-7628

ASM,POSITIVE BATTERY CABLE

$27.49

32

3296-2

Nut-Nyloc #10-24

$2.46

33

1-803071

SCREW

$1.55

34

1-643115

TIE-PLASTIC

$3.11
