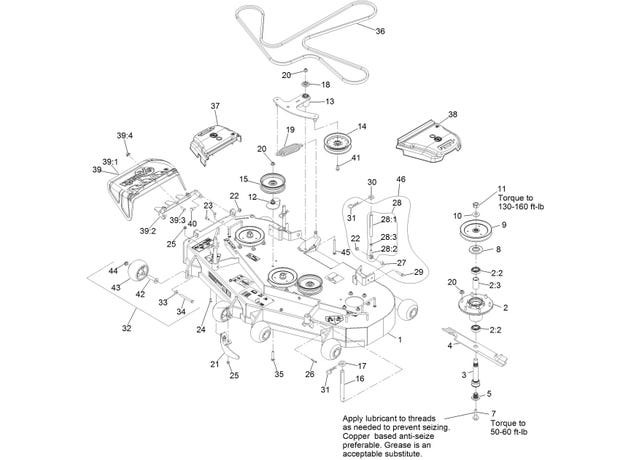

eXmark MN TTS541GKA52300 Deck Assembly

1

126-0766

ASM, DECK W/ DECALS, 52"

$2,232.99

2

116-3344

ASM-CUTTER HSG WITH BEARINGS

$146.99

2:2

116-0720

BEARING-BALL

$23.09

2:3

116-3312

SPACER-BEARING

$9.59

3

116-3342

ASM-SPINDLE AND SEAL

$77.99

4

103-6382-S

SPK, BLADE SOLID 18.0 (.94 HOLE)

$37.39

4

103-6387-S

SPK, BLADE LOW LIFT 18.0 (.94 HOLE)

$32.99

4

103-6392-S

SPK, BLADE MULCH 18.0 (.94 HOLE)

$31.89

4

103-6402-S

SPK, BLADE NOTCHED 18.0 (.94 HOLE)

$31.89

4

116-5175-S

SPK,BLADE-EXTREME 2, 18.00"

$31.89

5

103-3037

BUSHING,SPLINED

$23.09

7

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

8

116-1286

GUARD,BEARING TOP .989

$5.99

9

116-0675

SHEAVE,BLADE DRIVE 6.50

$87.99

10

103-2802

Washer-Spring Disc 3/4

$5.75

11

116-7306

NUT-HEX

$3.11

12

109-2872

SPACER-PULLEY

$23.09

13

126-2314

ASM, DECK IDLER

$173.99

14

126-9196

IDLER-PULLEY, FLAT

$62.69

15

116-4669

IDLER-PULLEY, FLAT

$81.39

16

1-603001

Rod, deck support

$46.19

17

1-413425

SPACER-DECK SUPPORT

$7.07

18

103-2916

Guard-Top

$2.98

19

116-6317

SPRING-EXTENSION

$28.59

21

126-2783-01

BAFFLE, DOGLEG

$46.19

22

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

23

322-3

Screw-HH 5/16-18 x 3/4

$1.11

24

322-2

Screw-HH 5/16-18 x 5/8

$2.98

25

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

26

32121-15

PIN-ROLL

$1.81

27

1-603050

Spacer

$7.91

28:1

1-413525

Link, rear deck support

$45.09

28:2

1-613204

BALLJOINT

$32.99

28:3

3220-3

Nut-Jam 3/8-24

$0.44

29

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

30

1-323539

SPACER

$2.72

31

1-806009

Hairpin, .177

$3.24

32

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

33

98-5975

Washer-Spring Disc 3/8

$3.71

34

116-9362

Screw-HH 3/8-16 x 3 3/4 GR 8

$3.11

35

3231-40

Bolt-Carriage 3/8-16 x 2 1/4

$2.98

36

126-0784-SL

BELT, DECK WITH SLEEVE

$136.99

37

109-6935

COVER-BELT, RH

$39.59

38

109-6936

COVER-BELT, LH

$39.59

39

126-0959

ASM, DISCHARGE CHUTE

$94.99

39:1

109-2738

CHUTE,DISCHARGE

$75.89

39:2

126-0958-01

BRACKET, DISCHARGE CHUTE

$42.89

40

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

41

126-1680

SCREW-HHF

$1.94

42

116-8131

AXLE, ROLLER

$13.19

43

103-8415

ROLLER-ANTI-SCALP

$24.19

44

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

45

3231-24

Bolt-Carriage 3/8-16 x 3 3/4

$15.39

46

1-411532

KIT,SUPPORT LINK W/PIN

$135.99
