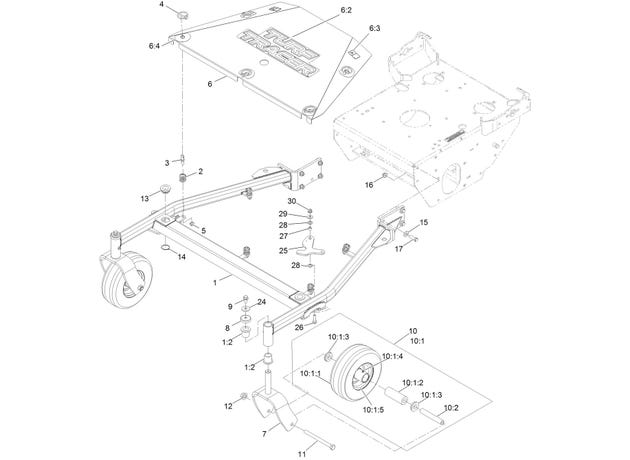

eXmark MN TTS481GKA48300 Frame Assembly

1

126-1514

ASM, FRAME W/ BUSHINGS, 48

$584.99

1:2

1-303514

BEARING-FLANGED

$13.19

2

126-1503

SPRING

$2.98

3

135-7455

PIN, SPRING

$5.75

4

92-1298

PIN-LYNCH

$4.07

6

126-1517

ASM, SHIELD W/ DECALS, 48

$225.99

6:2

126-6892

DECAL-TURF TRACER

$15.39

6:3

106-5517

DECAL-WARNING

$5.75

6:4

126-1692

DECAL-SCRATCH COVER

$16.49

7

116-7941-01

FORK, CASTER

$83.99

8

126-1425

CAP, DUST

$3.83

9

110-1718

Screw-Hex Flange 3/8-16 x 3/4

$2.33

10

103-2171

Kit,semi-pneumatic wheel replacement

$120.99

10:1:2

1-513809

BEARING

$36.29

10:1:3

1-513810

BUSHING

$6.59

10:1:4

302-61

FITTING-GREASE

$12.09

10:2

1-513547

SPACER

$13.19

11

325-20

Screw-HH 1/2-13 x 6

$8.51

12

99-5107

Nut-Lock 1/2-13

$2.20

13

1-513336

BUSHING-DECK

$25.29

14

32120-33

RING-RETAINING

$8.15

15

98-5975

Washer-Spring Disc 3/8

$3.71

16

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

17

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

24

1-373034

Washer

$3.83

25

135-4827-01

LATCH, DECK HEIGHT

$15.39

26

119-4036

SCREW-HHF

$1.39

27

136-7148

SPACER-GROMMET

$1.55

28

116-4280

WASHER-CONICAL

$5.75

29

3256-3

Washer-5/16 Std

$0.74

30

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25
