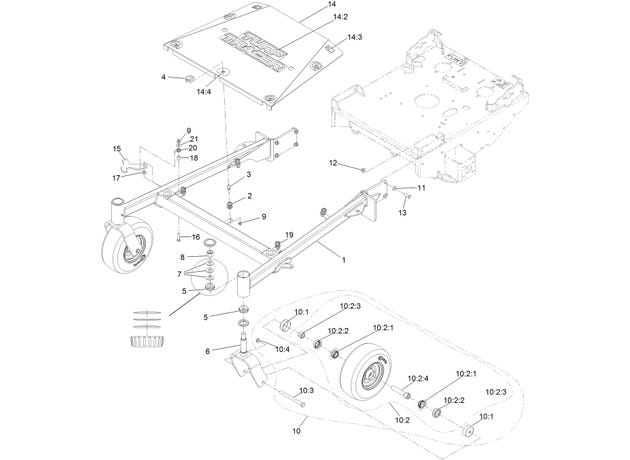

eXmark MN TTX680PKC52400 Main Frame Assembly

1

126-2540

ASM, FRONT FRAME W/ BEARINGS, 52

$875.99

2

126-1503

SPRING

$2.98

3

135-7455

PIN, SPRING

$5.75

4

92-1298

PIN-LYNCH

$4.07

5

1-543509

Cone-Bearing Tapered Roller

$14.29

6

103-1891-01

WLD, CASTER FORK

$108.99

7

1-633508

Washer-Spring Disc

$3.83

8

3296-51

Nut-Nyloc 3/4-10

$7.19

9

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

10

109-3524

ASM,WHEEL&BEARINGS

$233.99

10:1

103-2768

Guard-Seal

$3.95

10:2:1

1-633585

Bearing-Cone Tapered Roller

$21.99

10:2:2

103-0063

Seal-Double Lip

$9.95

10:2:3

103-3051

Spacer-Nut

$9.59

10:2:4

126-5359

CASTER AXLE ASM

$18.69

10:3

325-20

Screw-HH 1/2-13 x 6

$8.51

10:4

3296-45

NUT-HEX

$4.55

11

98-5975

Washer-Spring Disc 3/8

$3.71

12

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

13

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

14

126-2544

ASM, CENTER SHIELD W/ DECALS, 52

$135.99

14:2

126-6892

DECAL-TURF TRACER

$15.39

14:3

106-5517

DECAL-WARNING

$5.75

14:4

126-1692

DECAL-SCRATCH COVER

$16.49

15

135-4827-01

LATCH, DECK HEIGHT

$15.39

16

3230-4

Bolt-Carriage 5/16-18 x 1 1/2

$4.43

17

110-4068

WASHER-PLASTIC

$4.43

18

108-9087

COLLAR-BASKET

$14.29

19

75-3960

SPRING-TORSION, LH (YELLOW)

$26.39

20

75-3970

SPRING-TORSION, RH

$26.39

21

3256-3

Washer-5/16 Std

$0.74
