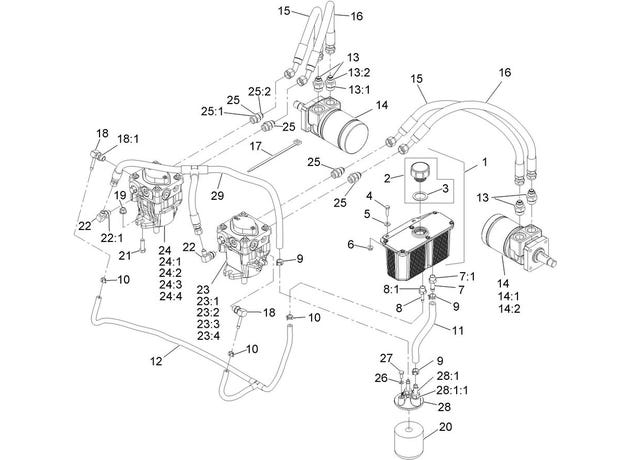

eXmark MN TTX650EKCE604 Hydraulics Assembly

1

103-1947

HYD Reservoir ASM

$221.99

2

103-7615

Asm, Cap W/Gasket

$30.79

3

142-2792

O-RING

$1.68

4

321-6

Screw-HH 1/4-20 x 1

$0.74

5

3256-22

Washer-1/4 SAE

$0.59

6

32128-33

Nut-Whizlock 1/4-20

$0.97

8

103-1801

Adapter-Straight

$31.89

9

103-1988

Clamp-Hose 11/16

$1.55

10

103-1716

Clamp-Hose 17/32

$1.55

11

109-1010

HOSE,CASE DRAIN RH

$8.15

12

103-4607

Asm, Case Drain Hose

$54.99

13

1-603991

Adapter-Straight

$21.99

13:1

1-603919

O-Ring-SAE #10

$3.83

14

1-603718

HYD MOTOR ASM

$1,059.99

14:1

1-000119

SEAL KIT

$176.99

14:2

1-000138

BEARING AND SEAL KIT

$285.99

15

116-8646

HOSE,HYDRAULIC W/COVER

$86.99

16

116-8647

Hose, Hydro

$89.99

17

3290-378

Tie-Cable

$1.11

18

103-1799

ELBOW-90 DEG

$30.79

19

32128-43

Nut-Whizlock 3/8-16

$1.68

20

1-523541

ELEMENT-FILTER, WINTER

$50.59

20

109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$50.59

21

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

22

103-1802

FITTING-ELBOW, 90 DEG

$24.19

23

116-2495

PUMP-HYD PE RH TTH

$1,191.99

24

116-2494

PUMP-HYD PE LH TTH

$1,191.99

24:1

103-2664

INPUT SHAFT KIT

$211.99

24:2

94-6922

BEARING-THRUST

$63.79

24:3

103-2666

CYLINDER BLOCK KIT

$459.99

24:4

105-6184

SEAL OVERHAUL KIT

$81.39

25

1-603990

Adapter-Straight

$18.69

25:1

1-603920

O-Ring-SAE #8

$3.95

25:2

1-603992

O-Ring-37 Flare #8

$2.98

26

1-805004

Washer-Lock 1/4 Heavy

$1.55

27

321-3

Screw-HH 1/4-20 x 5/8

$1.55

28

103-2889

Filter Head ASM

$99.99

28:1

103-1912

Adapter-Straight

$23.09

28:1:1

237-42

O-RING

$3.24

29

103-4608

Asm, Charge Hose

$82.49
