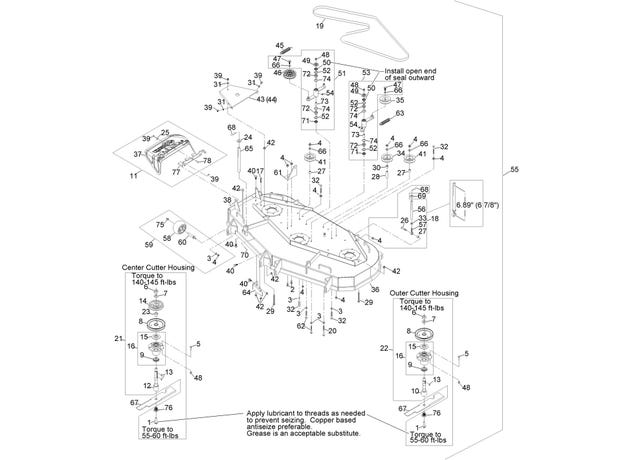

eXmark MN TTX691KAE604 Deck Assembly

#
Part #
Item
Price
Qty
Add
1
109-9220
Screw-SEMS 1/2-20 x 2.19
$9.11
2
323-6
Screw-HH 3/8-16 x 1
$2.98
3
98-5975
Washer-Spring Disc 3/8
$3.71
4
3290-357
Nut-Whizlock 3/8-16
$1.11
5
323-8
Screw-HH 3/8-16 x 1 1/2
$3.59
6
3217-46
Nut-Hex 3/4-16 Heavy
$13.19
7
103-2802
Washer-Spring Disc 3/4
$5.75
8
103-2794
Sheave, Blade Drive
$71.49
9
103-2535
Spacer-Guard Bottom
$13.19
10
103-9086
Kit-Splined Spindle
$206.99
11
109-4722
Asm, Discharge Chute
$148.99
12
103-9087
Kit, Center Blade Spindle (Long)
$205.99
13
103-2982
Key-Machine 1/4 x 3/16 x 3/4
$3.24
14
103-2791
Sheave, Mower Drive
$73.69
15
103-1330
Guard-Bearing Top
$5.75
16
103-8280
Kit, Cutter Housing
$247.99
17
322-3
Screw-HH 5/16-18 x 3/4
$1.11
18
1-411532
KIT,SUPPORT LINK W/PIN
$135.99
19
1-633173
Belt, blade drive
$72.13
20
323-23
SCREW-HH
$6.11
21
103-9083
Housing, Cutter Complete (Center)
$533.99
22
103-9076
Housing, Cutter Complete (Outer)
$433.99
23
103-3209
Spacer, Tube
$8.99
24
1-413425
SPACER-DECK SUPPORT
$7.07
25
3256-82
Washer
$0.97
26
323-9
Screw-HH 3/8-16 x 1 3/4
$1.68
27
1-603050
Spacer
$7.91
28
1-633988
SPACER-ANCHOR, CLUTCH
$12.09
29
1-800017
Bolt, Tap 5/16-18 x 3 1/4
$7.55
30
1-513791
Bushing
$5.99
31
3256-3
Washer-5/16 Std
$0.74
32
323-12
Screw-HH 3/8-16 x 2 1/2
$2.98
33
3220-3
Nut-Jam 3/8-24
$0.44
34
1-603805
PULLEY-IDLER
$56.09
35
1-613098
PULLEY-IDLER
$48.39
36
116-5952
Deck, (116-5863-01) W/ Decals
$2,686.99
37
109-2738
CHUTE,DISCHARGE
$75.89
38
322-5
Screw-HH 5/16-18 x 1
$0.74
39
3296-29
Nut-Nyloc 5/16-18
$2.72
40
322-2
Screw-HH 5/16-18 x 5/8
$2.98
41
1-303516
Pulley, V-Idler
$54.99
42
32128-20
Nut-Whizlock 5/16-18
$1.39
43
103-2967-01
Shield, Belt RH
$69.29
44
103-2968-01
Shield, Belt LH
$69.29
45
1-603413
SPRING-EXTENSION
$24.19
46
109-4077
PULLEY-IDLER, FLAT
$21.99
47
3234-11
Screw-HH FLG 3/8-16 x 1
$4.55
48
3296-39
Nut-Nyloc 3/8-16
$2.98
49
103-2916
Guard-Top
$2.98
50
103-3506
Seal-Single Lip
$5.75
51
103-8072
Kit, Idler Arm W/Bearings
$177.99
52
32120-10
Ring-Retaining
$1.68
53
103-8071
Kit, Idler Arm W/Bearings
$190.99
54
302-40
Zerk-90° 1/4-28
$3.59
55
116-5950
Complete Deck Assy

product not available CALL FOR AVAILABILITY

$1.00
56
1-413525
Link, rear deck support
$45.09
57
1-613204
BALLJOINT
$32.99
58
1-603299
ROLLER-SCALP, ANTI
$23.09
59
103-4051
KIT,ANTI-SCALP ROLLER
$28.66
60
99-2842
SPACER
$6.46
61
1-603620-01
Bracket, spring anchor
$26.39
62
98-5961
Screw-HH 3/8-16 x 4 Gr8
$5.75
63
1-603414
SPRING-EXTENSION
$21.99
64
116-2072-01
Baffle
$32.99
65
1-603001
Rod, deck support
$46.19
66
3256-24
Washer-3/8 SAE
$0.83
67
103-6403
BLADE, NOTCHED 20.5 (.94 hole)

product not available CALL FOR AVAILABILITY

$0.00
67
103-6383
BLADE, SOLID 20.5 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01
67
103-6388
BLADE- LOW LIFT 20.5 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01
67
103-6393
BLADE, MULCH 20.5 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01
67
103-6398
BLADE, EXTREME 20.5 (.94 HOLE)
$12.21
68
1-806009
Hairpin, .177
$3.24
69
1-323539
SPACER
$2.72
70
1-806332
Roll pin, 1/4 x 1-1/2

product not available CALL FOR AVAILABILITY

$0.01
71
103-3505
SEAL-LIP, DOUBLE
$5.75
72
103-3504
Bearing-Spherical
$24.19
73
1-413088
Spacer
$11.99
74
106-7159
O-Ring
$1.25
75
109-6658
Nut-Nyloc 3/8-16 Flg
$1.55
76
103-3037
BUSHING,SPLINED
$23.09
77
109-4573-01
Bracket, Discharge Chute
$85.99
78
3230-22
Bolt-Carriage 5/16-18 x 1 Sp
$2.59
