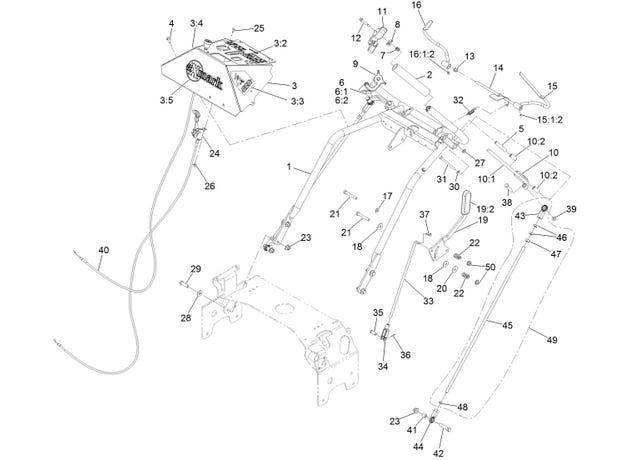

eXmark MN TTX691CKA60400 Handle Assembly

1

126-2642-03

WELD, HANDLE

$410.99

2

103-0815

GRIP-BAR, HANDLE

$12.09

3

126-3541

ASM, CONSOLE W/ DECALS

$120.99

3:2

135-2863

DECAL-CONSOLE

$34.09

3:3

103-2242

Decal, ECS instruction LH

$9.11

3:4

103-2243

Decal, ECS instruction RH

$9.11

3:5

126-6877

DECAL, EXMARK LOGO

$7.79

4

32144-10

Screw-HWH 1/4-20 x .62

$5.15

5

103-0027

BUSHING-LEVER, DRIVE

$20.89

6

103-2513

Asm, Drive Lever RH

$118.99

6:1

116-4082

WLD,RH DRIVE LEVER

$52.79

7

1-633349

Spring-Compression

$5.75

8

126-2921

LATCH, ECS

$12.09

9

103-1371

Thumb latch asm RH

$30.79

10

103-2514

Asm, Drive Lever LH

$118.99

10:1

116-4081

WLD,LH DRIVE LEVER

$52.79

10:2

126-9366

BUSHING, SLEEVE

$3.24

11

103-1372

Thumb latch asm LH

$30.79

12

126-2931

SCREW-SHOULDER

$3.24

13

1-303365

BUSHING-NYLON

$5.75

14

103-0769-03

Rod weldment, OPC

$43.99

15

116-4079

WLD,LH OPC LEVER

$35.19

16

116-4080

WLD,RH OPC LEVER

$35.19

16:1:2

1-803322

SCREW-SET

$1.55

17

3256-23

Washer-5/16 SAE

$2.59

18

1-323244

Washer-Friction

$8.03

19

126-0148

LEVER, SHIFT W/GRIP

$52.79

19:2

103-5994

GRIP-HANDLE, STEERING

$14.29

20

1-603716

Washer-Friction

$5.75

21

322-11

Screw-HH 5/16-18 x 2 1/4

product not available CALL FOR AVAILABILITY

$1.68

22

1-323245

Spring-Compression

$7.07

23

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

24

109-3958

CONTROL-THROTTLE

$41.79

25

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

26

3296-2

Nut-Nyloc #10-24

$2.46

27

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

28

98-5975

Washer-Spring Disc 3/8

$3.71

29

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

30

3256-22

Washer-1/4 SAE

$0.59

31

321-14

SCREW-HH

$5.39

32

1-303363

SPRING-EXTENSION

$7.07

33

1-413225

Rod, speed control

$15.39

34

1-303105

Yoke-Adjustable

$13.19

35

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

36

3272-5

Pin-Cotter 3/32 x 1/2

$1.81

37

1-806003

PIN-COTTER

$1.81

38

322-9

Screw-HH 5/16-18 x 1 3/4

$3.71

39

3296-29

Nut-Nyloc 5/16-18

$2.72

40

126-2107

CABLE, CHOKE

$45.09

41

103-1166

SPACER-TUBE, PUMP LINK

$7.19

42

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

43

103-2463

JOINT-BALL, END

$28.59

44

103-1167

JOINT-BALL END, .38x.38FE LH

$32.99

45

103-1148

Rod,drive lever

$19.79

46

3220-3

Nut-Jam 3/8-24

$0.44

47

3219-3

Nut-Hex 3/8-24

$2.07

48

3220-16

Nut-Jam 3/8-24 LH

$2.33

49

116-3414

DRIVE LINK ASM

$35.19

50

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25
