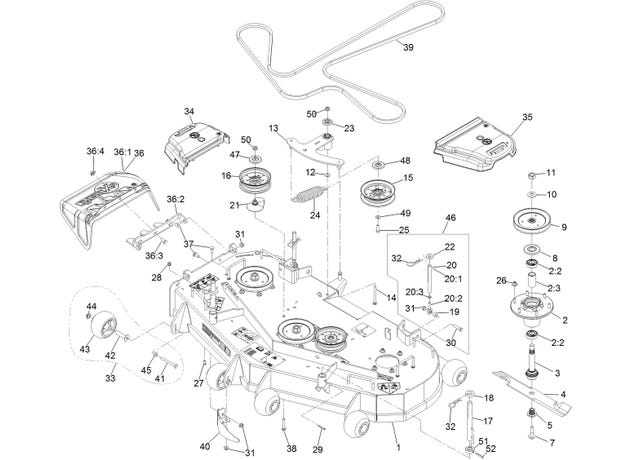

eXmark MN TTX691CKA52400 Deck Assembly

1

126-2472

ASM, DECK W/ DECALS, 52"

$2,696.99

2

116-3344

ASM-CUTTER HSG WITH BEARINGS

$146.99

2:2

116-0720

BEARING-BALL

$23.09

2:3

116-3312

SPACER-BEARING

$9.59

3

116-3341

ASM-SPINDLE AND SEAL

$77.99

4

103-6382-S

SPK, BLADE SOLID 18.0 (.94 HOLE)

$37.39

4

103-6387-S

SPK, BLADE LOW LIFT 18.0 (.94 HOLE)

$32.99

4

103-6392-S

SPK, BLADE MULCH 18.0 (.94 HOLE)

$31.89

4

103-6402-S

SPK, BLADE NOTCHED 18.0 (.94 HOLE)

$31.89

4

116-5175-S

SPK,BLADE-EXTREME 2, 18.00"

$31.89

5

103-3037

BUSHING,SPLINED

$23.09

7

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

8

116-1286

GUARD,BEARING TOP .989

$5.99

9

116-0675

SHEAVE,BLADE DRIVE 6.50

$87.99

10

103-2802

Washer-Spring Disc 3/4

$5.75

11

116-7306

NUT-HEX

$3.11

12

3256-4

Washer-3/8 Std

$1.94

13

126-2314

ASM, DECK IDLER

$173.99

14

3231-24

Bolt-Carriage 3/8-16 x 3 3/4

$15.39

15

126-9196

IDLER-PULLEY, FLAT

$62.69

16

126-9197

IDLER-PULLEY, FLAT 5.00X1.31

$63.79

17

135-4829

ROD, DECK SUPPORT

$30.79

18

1-413425

SPACER-DECK SUPPORT

$7.07

19

1-603050

Spacer

$7.91

20:1

1-413525

Link, rear deck support

$45.09

20:2

1-613204

BALLJOINT

$32.99

20:3

3220-3

Nut-Jam 3/8-24

$0.44

21

109-2872

SPACER-PULLEY

$23.09

22

1-323539

SPACER

$2.72

23

103-2916

Guard-Top

$2.98

24

116-6317

SPRING-EXTENSION

$28.59

25

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

27

322-2

Screw-HH 5/16-18 x 5/8

$2.98

28

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

29

32121-15

PIN-ROLL

$1.81

30

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

31

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

32

1-806009

Hairpin, .177

$3.24

33

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

34

109-6935

COVER-BELT, RH

$39.59

35

109-6936

COVER-BELT, LH

$39.59

36

109-7188

ASM,DISCHARGE CHUTE

$97.99

36:1

109-2738

CHUTE,DISCHARGE

$75.89

36:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

37

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

38

3231-40

Bolt-Carriage 3/8-16 x 2 1/4

$2.98

39

126-2538-SL

BELT, DECK DRIVE WITH SLEEVE

$161.99

40

116-5814-01

BAFFLE-DOGLEG, LZ-VT52

$63.79

41

116-9362

Screw-HH 3/8-16 x 3 3/4 GR 8

$3.11

42

116-8131

AXLE, ROLLER

$13.19

43

103-8415

ROLLER-ANTI-SCALP

$24.19

44

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

45

98-5975

Washer-Spring Disc 3/8

$3.71

46

1-411532

KIT,SUPPORT LINK W/PIN

$135.99

47

126-8043

SHIELD-DUST

$2.98

48

126-9195

SHIELD-GUARD, DUST

$3.11

49

43-0940

SPACER

$5.87

50

32128-19

Nut-Hex 3/8-16 Side Lock

$1.81

51

135-4828

COLLAR, DECK HEIGHT PIN

$18.69

52

32121-32

PIN-ROLL

$1.68
