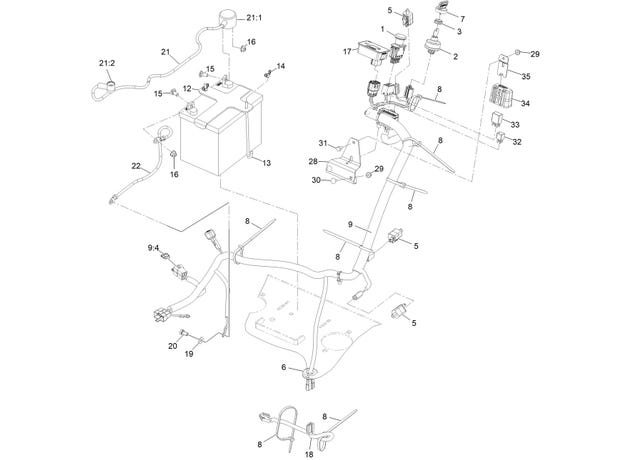

eXmark MN TTX691CKA60400 Electrical Assembly

1

103-5221

Switch-PTO

$59.39

2

135-2253

SWITCH, KEY START

$35.19

3

103-0498

Nut-Ignition

$3.59

5

110-6765

SWITCH

$14.29

6

1-543286

GROMMET

$13.19

7

103-2106

Key-Exmark Logo

$5.75

8

3290-378

Tie-Cable

$1.11

9

135-1870

HARNESS-WIRING

$322.99

9:4

1-816001

FUSE-BLADE TYPE, 20 AMP

$7.07

12

135-2056

BRACKET, BATTERY HOLD DOWN

$27.49

13

1-633651

BOLT-HOLDDOWN

$8.75

14

1-543792

Wingnut-Nyloc 1/4-20

$7.07

15

3230-1

Bolt-Carriage 5/16-18 x 3/4

$1.94

16

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

17

142-2440

MODULE-HOUR METER

$128.99

18

126-0624

Harness-Clutch Pigtail

$14.29

19

33094-00

Washer

$0.14

20

33114-016

Screw-HH M8-1.25 x 16mm

$0.74

21

109-7621

POSITIVE BATTERY CABLE ASM

$38.49

21:1

1-543393

Insulator-Solenoid

$5.75

21:2

109-2407

INSULATOR-BATTERY

$5.75

22

1-413540

CABLE-BATTERY, NEGATIVE

$14.29

28

135-2564-03

BRACKET, MOUNTING PDM

$34.09

29

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

30

3229-10

Bolt-Carriage 1/4-20 x 1/2

$1.55

31

321-2

Screw-HH 1/4-20 x 1/2

$3.71

32

126-3991

RELAY-MICRO

$41.79

33

126-6157

RELAY-MICRO 280, SPDT

$28.59

34

32180-176

COVER-BLOCK, FUSE

$7.79

35

32180-177

CLIP-MOUNTING

$3.71
