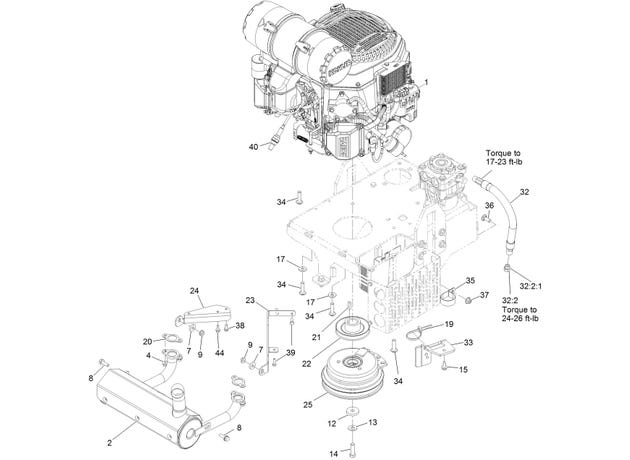

eXmark MN VTS740EKC60400 Engine Assembly

2

135-2666

KIT-KOHLER EFI MUFFLER

$365.99

4

68-9400

NUT-FLANGE

$2.98

7

104-7658

SPACER

$1.55

8

3234-29

Screw-HH FLG 5/16-18 x 1

$3.24

9

32128-25

Nut-Hex 5/16-18 Side Lock

$3.83

12

107-4136

WASHER

$6.71

13

1-603610

Washer-Spring Disc 7/16

$5.75

14

3212-6

Screw-HH 7/16-20 x 1 1/2

$2.72

15

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

17

98-5975

Washer-Spring Disc 3/8

$3.71

19

3290-378

Tie-Cable

$1.11

20

110-6697

GASKET-EXHAUST

$7.43

21

1-807259

KEY

$2.46

22

116-3882

PULLEY

$109.99

23

126-0071

MOUNT, MUFFLER-LT

$30.79

24

126-0072

MOUNT, MUFFLER-RT

$19.79

25

116-8517

CLUTCH-200 FT-LB, 1.125 BORE - NO D DRIV

$606.99

32

116-5108

OIL DRAIN HOSE ASM

$39.59

32:2

353-508

PLUG-HH

$8.87

32:2:1

237-42

O-RING

$3.24

33

116-3811-01

BRACKET-ANCHOR, CLUTCH

$39.59

34

126-0983

SCREW-BHTF

$5.75

35

2412-147

Clamp

$9.59

36

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

37

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

39

116-4295

Screw-HH M6-1 x 20mm W/Patch

$5.75

40

116-5395

SENSOR-OXYGEN

$166.99

44

116-5722

SCREW-HWHTF

$1.81
