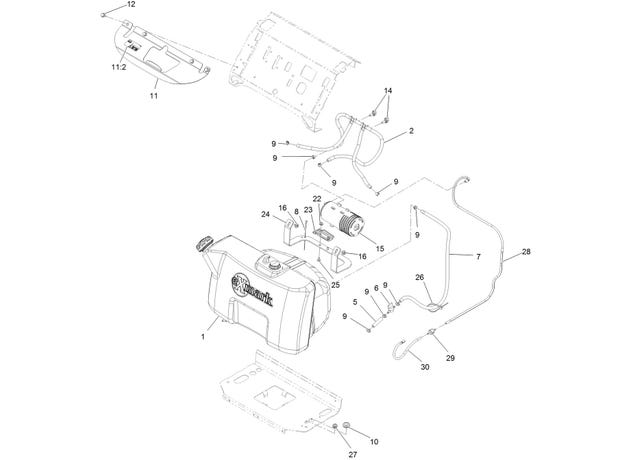

eXmark MN VTS730AKC52400 Fuel Assembly

1

135-0647

TANK ASM-

$702.99

2

116-5170

VENT ASM

$67.09

5

116-4651

HOSE-FUEL

$5.39

6

1-603770

Valve-Fuel

$9.11

7

109-0275

Hose-Fuel Line 32"

$14.29

8

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

9

2412-98

CLAMP-HOSE

$1.81

10

112-7069

GROMMET

$3.83

11

116-3088

BRACKET-TANK

$72.59

11:2

116-8775

DECAL-FILL, FUEL

$8.51

12

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

14

32180-040

CLIP-HARNESS

$2.98

15

117-1221

CANISTER-CARBON, 800CC

$72.59

16

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

22

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

23

114-0292

BRACKET-CANISTER, CARBON

$11.99

24

116-5600-03

Bracket-Canister Mounting

$60.49

25

116-5611

Bolt-Carriage 1/4-20 x 1/2 short neck

$5.75

26

3290-378

Tie-Cable

$1.11

27

237-136

GROMMET

$4.43

28

126-9473

HOSE, FORMED

$56.09

29

133-8499

VALVE-CHECK, VACUUM

$14.29

30

119-4235

HOSE-VENT, FORMED

$5.75
