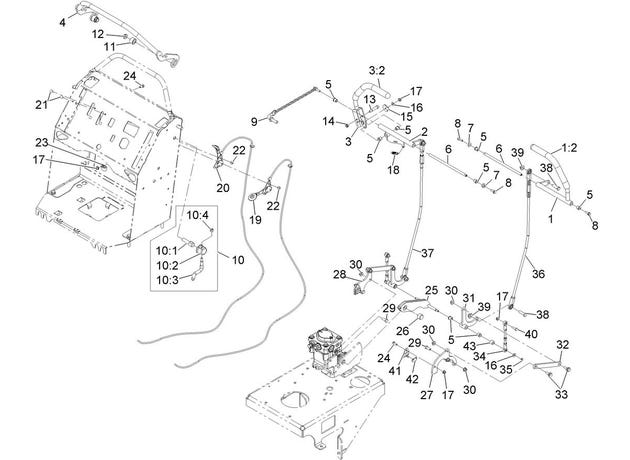

eXmark MN VT541KA363CA Control Assembly

1

116-4195

LEVER ASM, LH

$110.99

2

116-4196-03

MOTION CONTROL ASM, LH

$92.99

3

116-2356

LEVER ASM, RH

$106.99

3:2

116-2357

GRIP-HANDLE, CONTROL

$11.99

4

116-6985-03

TUBE ASM, FRONT SPEED CONTROL [

$118.99

5

103-9928

BEARING

$8.51

6

116-4197

SHAFT-PIVOT, MOTION CONTROL

$20.89

7

116-4198

SPACER-SHAFT, DRIVE LEVER

$7.07

8

117-8304

Screw-Hex Flange 1/4-20 x 3/4

$3.59

9

114-0409

HOC PIN ASM

$53.89

10:1

106-3239

Screw-Lock

$53.89

10:2

107-1644

CAP-LOCK

$39.59

10:3

107-1664

LEVER ASM

$76.99

10:4

3296-29

Nut-Nyloc 5/16-18

$2.72

11

116-2319

SPACER-CLAMP

$8.51

12

3296-45

NUT-HEX

$4.55

13

114-0239

Screw-Shoulder 5/16-18 x 1/2

$13.19

14

3296-47

Nut-Nyloc 5/16-18 Thin

$4.31

15

114-0268

CAM-LEVER

$7.07

16

3256-22

Washer-1/4 SAE

$0.59

17

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

18

114-0249

SPRING-EXTENSION

$14.29

19

116-4276

CONTROL-THROTTLE

$53.89

20

116-4277

CONTROL-CHOKE

$47.29

21

1-807533

Bolt-Carriage #10-24 x 5/8

$1.81

22

3290-148

Nut-Whizlock #10-24

$0.59

23

2412-87

CLAMP-CABLE

$3.47

24

3229-1

Bolt-Carriage 1/4-20 x 3/4

$4.07

25

116-4740

BELLCRANK LINK ASM

$81.99

26

116-4203

PIN-BELLCRANK LINK RETAINING

$8.63

27

116-4737

ARM-PUMP CONTROL

$31.89

28

116-7000

ARM-PUMP CONTROL RH

$26.39

29

322-4

Screw-HH 5/16-18 x 7/8

$0.83

30

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

31

116-4205

BELLCRANK-LOWER

$73.69

32

116-4208

LINK-BELLCRANK, PUMP

$7.07

33

116-2670

Screw-Shoulder HHF 5/16-18 x .96

$8.51

34

116-4210

VERTICAL ADJUST LINK

$98.99

35

32151-86

E-Ring

$2.98

36

116-4213

LINKAGE-TRACKING CONTROL, LH

$148.99

37

116-4214

LINKAGE-TRACKING CONTROL, RH

$148.99

38

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

39

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

40

321-5

Screw-HH 1/4-20 x 7/8

$0.59

41

116-4739

CLAMP-SWITCH

$15.39

42

116-2832

ACTUATOR-SWITCH, REED

$27.49

43

52-2480

SPACER-WHEEL

$7.07
