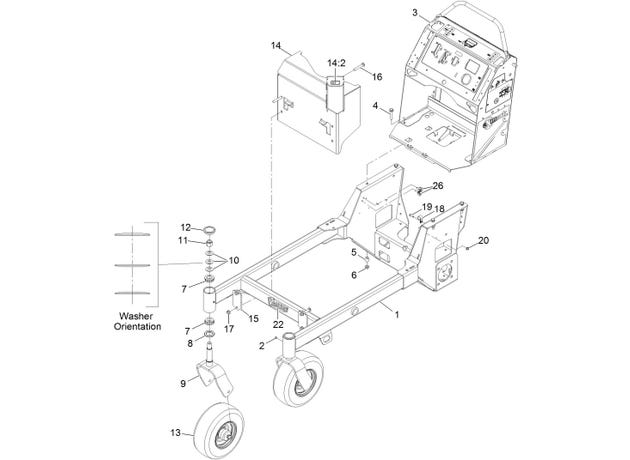

eXmark MN VT541KA363CA Main Frame Assembly

1

116-4650-01

FRAME ASM

$1,710.99

2

1-811010

Plug

$5.75

3

116-6323

CONTROL TOWER ASM

$987.99

4

108-3742

Screw-HH FLG 3/8-16 x 2

$6.95

5

121-1760

SPACER

$2.59

6

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

7

1-543509

Cone-Bearing Tapered Roller

$14.29

8

1-543511

Seal-Grease

$12.09

9

103-8618-01

FORK-CASTER

$122.99

10

1-633508

Washer-Spring Disc

$3.83

11

3296-51

Nut-Nyloc 3/4-10

$7.19

12

103-4882

CAP-GREASE

$8.51

13

112-3810

WHEEL/TIRE AND BEARING ASM

$191.99

14

116-8739

MUFFLER GUARD ASM

$219.99

14:2

106-5517

DECAL-WARNING

$5.75

15

119-7303-01

BRACKET-MOUNTING, GUARD

$14.29

16

3231-31

Bolt-Carriage 3/8-16 x 2 1/2

$7.91

17

32128-21

Nut-3/8-16 Flanged Side Lock

$0.97

18

2412-87

CLAMP-CABLE

$3.47

19

321-4

Screw-HH 1/4-20 x 3/4

$1.39

20

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

22

116-4268

DECAL-VANTAGE LOGO

$18.69

26

32180-040

CLIP-HARNESS

$2.98
