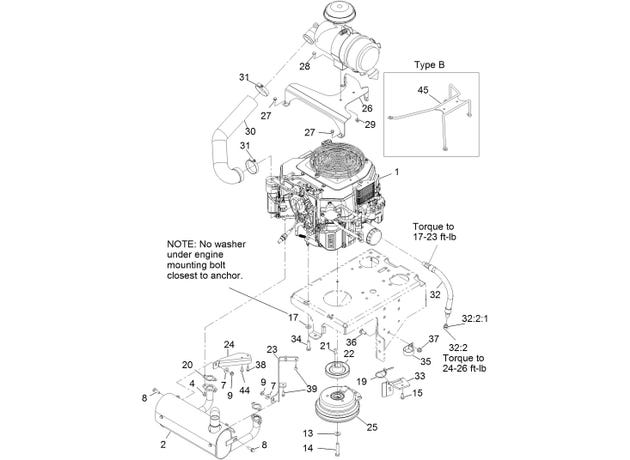

eXmark MN VT730EKC524 Engine Assembly

2

135-2666

KIT-KOHLER EFI MUFFLER

$365.99

4

68-9400

NUT-FLANGE

$2.98

7

104-7658

SPACER

$1.55

8

3234-29

Screw-HH FLG 5/16-18 x 1

$3.24

9

32128-25

Nut-Hex 5/16-18 Side Lock

$3.83

13

1-603610

Washer-Spring Disc 7/16

$5.75

14

3212-9

SCREW-HH

$13.19

15

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

17

98-5975

Washer-Spring Disc 3/8

$3.71

19

3290-378

Tie-Cable

$1.11

20

110-6697

GASKET-EXHAUST

$7.43

21

1-807259

KEY

$2.46

22

116-3882

PULLEY

$109.99

23

116-8751

BRACKET-MUFFLER, LH

$34.09

24

116-4038

BRACKET-MUFFLER, RH

$34.09

25

116-4477

CLUTCH-175 FT-LB, 1.125 BORE

$617.99

27

33103-016

Screw-HH FLG M6-1 x 16mm

$6.71

28

322-3

Screw-HH 5/16-18 x 3/4

$1.11

29

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

30

116-4047

HOSE-INTAKE, AIR

$110.99

31

2412-42

Clamp-Hose

$11.99

32

116-5108

OIL DRAIN HOSE ASM

$39.59

32:2

353-508

PLUG-HH

$8.87

32:2:1

237-42

O-RING

$3.24

33

116-3811-01

BRACKET-ANCHOR, CLUTCH

$39.59

34

32144-102

Screw-HWH 3/8-16 X 1 1/2 Taptite

$3.83

35

2412-147

Clamp

$9.59

36

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

37

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

39

116-4295

Screw-HH M6-1 x 20mm W/Patch

$5.75

44

116-5722

SCREW-HWHTF

$1.81

45

125-4660-03

MOUNT-CLEANER, AIR

$74.79
