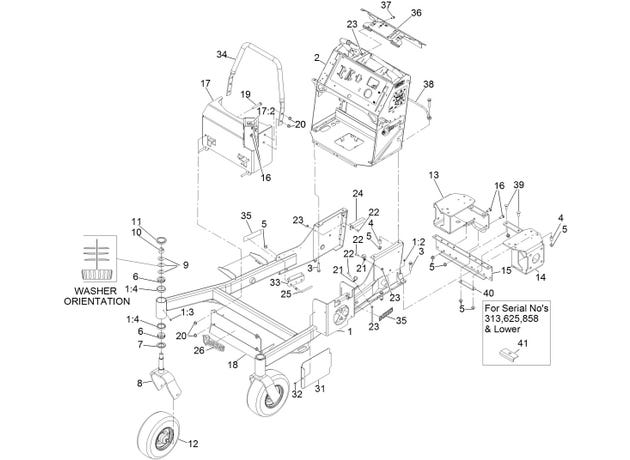

eXmark MN VTX691KA524 Main Frame Assembly

1

116-7045

FRONT FRAME ASM

$1,518.99

1:2

302-5

Zerk 1/4-28 Str Thrd Forming

$3.59

1:3

1-811010

Plug

$5.75

1:4

1-543508

Cup-Bearing Tapered Roller

$8.51

2

116-8854

TOWER ASSEMBLY

$731.99

3

108-3742

Screw-HH FLG 3/8-16 x 2

$6.95

4

121-1760

SPACER

$2.59

5

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

6

1-543509

Cone-Bearing Tapered Roller

$14.29

7

1-543511

Seal-Grease

$12.09

8

103-8618-01

FORK-CASTER

$122.99

9

1-633508

Washer-Spring Disc

$3.83

10

3296-51

Nut-Nyloc 3/4-10

$7.19

11

103-4882

CAP-GREASE

$8.51

12

112-3810

WHEEL/TIRE AND BEARING ASM

$191.99

13

119-7222-03

RH MOTOR MOUNT ASM

$234.99

14

119-7220-03

LH MOTOR MOUNT ASM

$234.99

15

119-7224-03

MOUNT-MOTOR, CENTER

$76.99

16

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

17

126-5015

ASM, MUFFLER GUARD W/ DECAL

$196.99

17:2

106-5517

DECAL-WARNING

$5.75

18

116-3113-01

PANEL-GUARD

$103.99

19

3231-31

Bolt-Carriage 3/8-16 x 2 1/2

$7.91

20

32128-21

Nut-3/8-16 Flanged Side Lock

$0.97

21

2412-87

CLAMP-CABLE

$3.47

22

321-4

Screw-HH 1/4-20 x 3/4

$1.39

23

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

24

116-5067

BRACKET-HOSE, FUEL (DOUBLE)

$20.89

25

116-3382

GUIDE-HOSE, SUPPORT

$19.79

26

116-3137

DECAL-VANTAGE LOGO

$11.99

31

116-6981-01

SHIELD-HEAT, TALL

$34.09

32

32144-4

Screw-HWH 1/4-20 x 1/2 Taptite

$1.68

33

116-6997-01

GUARD-HOSE

$13.19

34

116-8152-03

TUBE-GUARD

$43.99

35

116-3883

DECAL-X-SERIES

$7.79

36

116-8859

CONTROL PANNEL W/DECALS

$51.69

37

1-807512

BOLT-CARR

$1.68

38

116-7688

ROD, GUARD

$20.89

39

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.79

40

126-0337

SPACER, UP STOP

$6.35

41

126-0341

SPACER-UP STOP

product not available CALL FOR AVAILABILITY

$1.00
