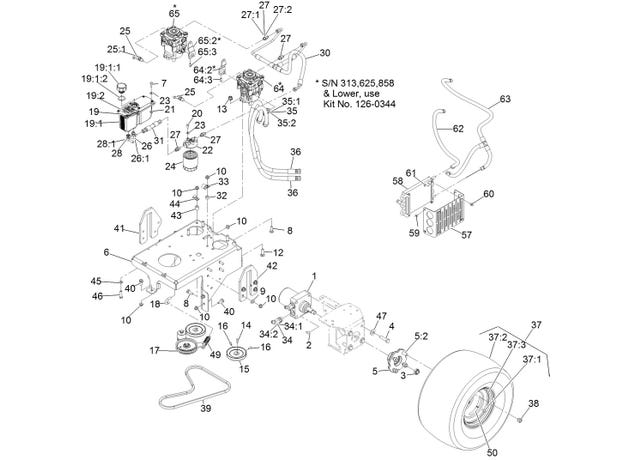

eXmark MN VTX691KA524 Ground Drive Assembly

#
Part #
Item
Price
Qty
Add
1
116-9109
MOTOR, WHEEL TE230
$1,091.99
2
3257-8
KEY-WOODRUFF
$5.75
3
116-2839
NUT-LOCK
$12.09
4
325-8
Screw-HH 1/2-13 x 1 1/4
$5.99
5
105-0800
WHEEL HUB ASM
$221.99
5:2
10-6830
STUD-TYPE, DRIVE
$6.11
6
116-7796-01
WELDMENT, FRAME
$349.99
7
321-6
Screw-HH 1/4-20 x 1
$0.74
8
119-4162
SCREW-CARR
$2.07
9
98-5975
Washer-Spring Disc 3/8
$3.71
10
104-8301
Nut-Nyloc 3/8-16 Flg
$1.55
12
3232-3
Bolt-Carriage 7/16-14 x 1 1/2
$3.71
13
114-8417
NUT-HF, NI
$2.85
14
1-807272
Key-5mm x 5mm x 25mm
$6.35
15
105-5648
PULLEY-PUMP
$116.99
17
116-7600
PUMP IDLER ASM
$81.99
18
116-8526
ANCHOR, SPRING
$16.49
19
116-2066
RESERVOIR ASM
$177.99
19:1:1
103-7615
Asm, Cap W/Gasket
$30.79
19:1:2
142-2792
O-RING
$1.68
19:2
116-0404
DECAL-HYDRAULIC TANK
$1.55
20
321-4
Screw-HH 1/4-20 x 3/4
$1.39
21
32128-32
Nut-Hex 1/4-20 Side Lock
$3.23
22
104-7836
Filter-Head
$16.49
23
3256-22
Washer-1/4 SAE
$0.59
24
109-4180
FILTER-25 MICRON, BI-DIRECTIONAL
$50.59
25
100-4887
FITTING-ELBOW, 90
$27.49
26
103-1802
FITTING-ELBOW, 90 DEG
$24.19
27
103-2156
Adapter-Straight
$42.89
27:2
103-1020
O-Ring-37 Flare #6
$1.55
28
103-1807
FITTING-BARBED, 45 DEG
$28.59
28:1
237-42
O-RING
$3.24
30
116-2650
HOSE ASSEMBLY - CHARGE
$135.99
31
116-2604
HYD HOSE ASM
$23.09
32
1-653069
SPACER-WHEEL
$13.19
33
1-633396
Clip-Loom 5/8
$5.75
34
1-523222
FITTING-HYD, 45 DEG
$64.89
34:1
1-603919
O-Ring-SAE #10
$3.83
35
1-523221
FITTING-HYD, 45 DEG
$50.59
35:1
1-603920
O-Ring-SAE #8
$3.95
35:2
1-603992
O-Ring-37 Flare #8
$2.98
36
116-6902
HYD HOSE ASM
$102.99
37
120-6465
WHEEL/TIRE ASM
$261.99
37:1
116-4605
RIM-8 INCH
$92.99
37:2
120-6466
TIRE
$121.99
37:3
232-27
STEM-VALVE

product not available CALL FOR AVAILABILITY

$3.30
38
242-50
Nut-Lug 1/2-20
$2.11
39
114567-SL
BELT-V, LOWER PTO WITH SLEEVE
$35.19
40
3234-42
Screw HHF 3/8-16 x 1
$3.59
41
116-4922
PLATE-LIFT, RH
$82.49
42
116-3546
PLATE, LIFT LH
$75.99
43
121-1760
SPACER
$2.59
44
116-3362
CLIP-TUBE
$5.39
45
3256-24
Washer-3/8 SAE
$0.83
46
323-8
Screw-HH 3/8-16 x 1 1/2
$3.59
47
1-513435
Washer-Spring Disc 1/2
$5.99
49
108-4056
SPRING-EXTENSION
$9.23
50
126-2130
DECAL-WHEEL TORQUE
$9.35
57
116-7497-01
BRACKET, COOLER MOUNTING
$82.99
58
135-6112
KIT-OIL COOLER
$316.99
59
32144-4
Screw-HWH 1/4-20 x 1/2 Taptite
$1.68
60
3234-13
SCREW-HHF
$1.68
61
32149-2
NUT-KEPS
$3.11
62
116-8839
HOSE, HYDRAULIC ASSY
$38.49
63
116-7613
HOSE ASM-HYD LP 3/8
$57.19
64
116-8846
PUMP W/ARM - LEFT
$1,191.99
65
116-8847
PUMP W/ARM -RIGHT
$1,191.99
65:2
126-0334
Arm-Hydro
$43.99
65:3
3241-5
Setscrew-SQH 1/4-20 X 5/8
$2.59
