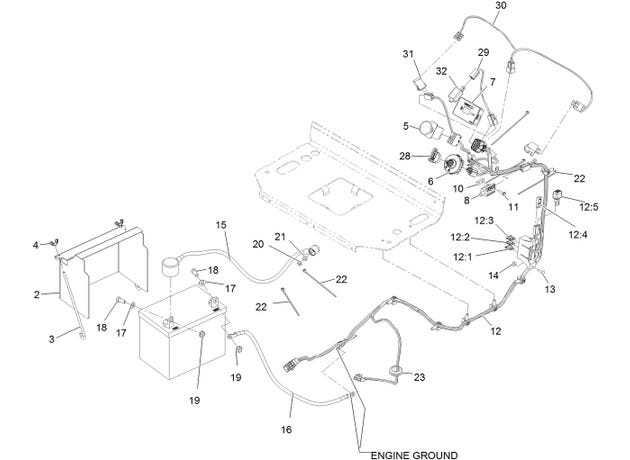

eXmark MN VTX651KA484 Electrical Assembly

2

117-0543-01

COVER-BATTERY

$82.99

3

1-633651

BOLT-HOLDDOWN

$8.75

4

1-543792

Wingnut-Nyloc 1/4-20

$7.07

5

114-0279

SWITCH-PTO, ON-ON

$60.49

6

117-2222

SWITCH-IGNITION

product not available CALL FOR AVAILABILITY

$0.01

7

116-8893

MODULE-HOUR METER

$128.99

8

1-513152

Switch-N.C.

$14.29

10

1-633181

Plate-Tapped

$7.07

11

32105-13

Screw-HWH #10-24 x 3/4

$2.07

12

116-4615

HARNESS-WIRE

$356.99

12:1

109103

FUSE-BLADE, 30 AMP

$7.31

12:2

109102

FUSE-BLADE, 25 AMP

$5.75

12:3

218-578

FUSE-BLADE, 10 AMP

$3.24

12:4

116-0053

CAP-PLUG

$40.69

12:5

103-3895

DIODE

$65.99

13

3229-20

SCREW-CARR

$2.07

14

3290-148

Nut-Whizlock #10-24

$0.59

15

115-3864

CABLE-BATTERY, POSITIVE

$31.89

16

105-0836

CABLE-BATTERY, BLACK

$20.89

17

3256-23

Washer-5/16 SAE

$2.59

18

322-3

Screw-HH 5/16-18 x 3/4

$1.11

19

109-5715

Nut-Hex Flange 5/16-18

$1.55

20

3253-3

Washer-Lock 1/4

$0.14

21

3217-5

Nut-Hex 1/4-20

$0.83

22

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

23

117-2781

GROMMET

$8.03

28

103-2106

Key-Exmark Logo

$5.75

29

116-8845

HARNESS-NEUTRAL

$19.79

30

116-8844

HARNESS-OPC

$37.39

31

82-2190

Switch

$15.39

32

1-513051

Switch-N.O.

$19.79
