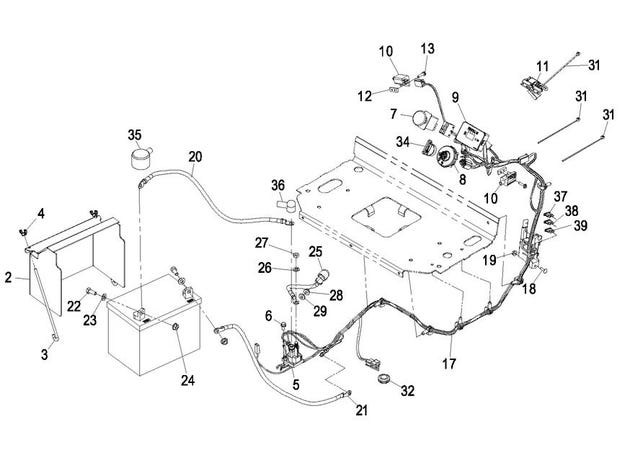

eXmark MN VT24KAS484 Electrical Group

2

117-0543-01

COVER-BATTERY

$82.99

3

1-633651

BOLT-HOLDDOWN

$8.75

4

1-543792

Wingnut-Nyloc 1/4-20

$7.07

5

117-1197

SOLENOID

$46.19

6

32144-4

Screw-HWH 1/4-20 x 1/2 Taptite

$1.68

7

114-0279

SWITCH-PTO, ON-ON

$60.49

8

117-2222

SWITCH-IGNITION

product not available CALL FOR AVAILABILITY

$0.01

9

115-4180

MODULE-METER, HOUR

product not available CALL FOR AVAILABILITY

$0.01

10

1-513152

Switch-N.C.

$14.29

11

116-2833

HARNESS-SWITCH, REED

$99.99

12

1-633181

Plate-Tapped

$7.07

13

32105-13

Screw-HWH #10-24 x 3/4

$2.07

17

116-2662

HARNESS-WIRING

$250.99

18

1-807533

Bolt-Carriage #10-24 x 5/8

$1.81

19

3290-148

Nut-Whizlock #10-24

$0.59

20

109-7653

POSITIVE BATTERY CABLE ASM

$36.29

21

105-0836

CABLE-BATTERY, BLACK

$20.89

22

322-3

Screw-HH 5/16-18 x 3/4

$1.11

23

3256-23

Washer-5/16 SAE

$2.59

24

109-5715

Nut-Hex Flange 5/16-18

$1.55

25

106-8268

CABLE-BATTERY, RED

$38.49

26

3253-4

Washer-Lock 5/16

$0.97

27

3220-2

Nut-Jam 5/16-24

$1.68

28

32128-33

Nut-Whizlock 1/4-20

$0.97

29

3256-22

Washer-1/4 SAE

$0.59

31

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

32

112-7069

GROMMET

$3.83

34

103-2106

Key-Exmark Logo

$5.75

35

109-2407

INSULATOR-BATTERY

$5.75

36

1-543393

Insulator-Solenoid

$5.75

37

218-578

FUSE-BLADE, 10 AMP

$3.24

38

109102

FUSE-BLADE, 25 AMP

$5.75

39

109103

FUSE-BLADE, 30 AMP

$7.31



1-603511

Key-Ignition

$2.72
